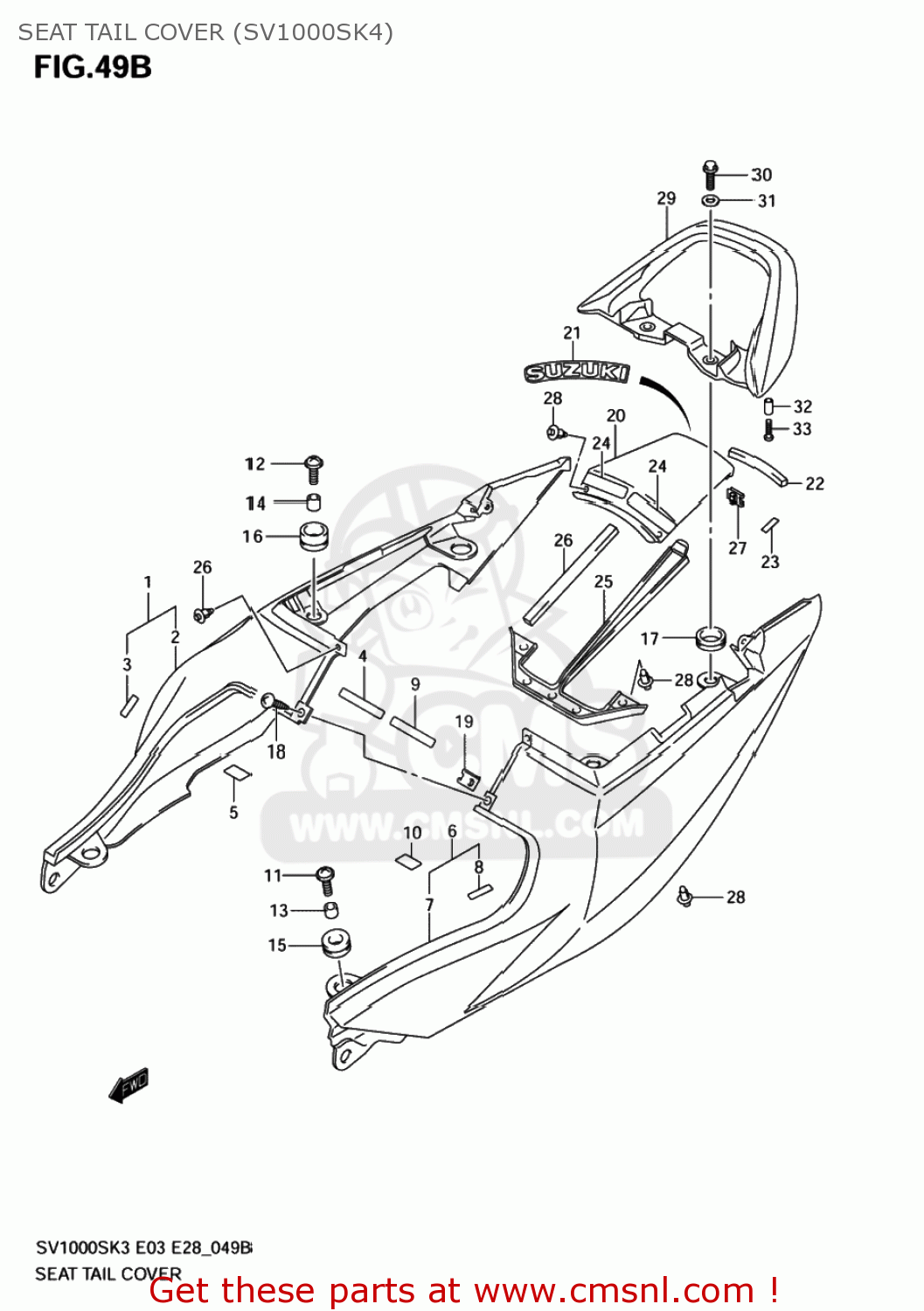

prices are in EUR
ref
part #
description
quantity
1-2
COVER,SEAT TAIL.R
1-3
COVER,SEAT TAIL
2-1
COVER, SEAT TAIL, R (BLUE)
2-3
COVER, SEAT TAIL, R (RED)
3
TAPE,COVER
4
TAPE,SEAT TAIL COVER NO.2 FR
5
PROTECTOR,FRAME COVER
6-2
COVER, SEAT TAIL, L (SILVER)
7-1
COVER, SEAT TAIL, L (BLUE)
7-3
COVER, SEAT TAIL, L (RED)
8
TAPE,COVER
9
TAPE,SEAT TAIL COVER NO.2 FR
10
PROTECTOR,FRAME COVER
11
SCREW(6X25)
12
SCREW(6X25)
13
SPACER(6.5X10X9.4)
14
SPACER(6.5X10X9.4)
15
CUSHION
16
CUSHION,SEAT TAIL COVER CTR
17
CUSHION
18
SCREW
19
NUT
20-1
COVER,SEAT TAIL CTR
20-1
COVER,SEAT TAIL CTR
20-3
COVER,SEAT TAIL CTR
20-3
COVER,SEAT TAIL CTR
21-1
EMBLEM,SUZUKI
21-2
EMBLEM,SUZUKI
22
CUSHION,SEAT TAIL COVER CTR
23
TAPE,SEAT TAIL COVER
24
TAPE,COVER
25-2
COVER,SEAT TAIL RR
25-2
COVER,SEAT TAIL RR
26
CUSHION,SEAT TAIL COVER
27
NUT
28
CLIP(BLACK)
29-1
HANDLE,PILLION RIDER
29-2
HANDLE,PILLION RIDER
29-3
HANDLE,PILLION RIDER(RED)
31
WASHER(8.5X24X2.3)
32
SPACER(6.5X9X18)
