2ND AIR (MODEL W/X/Y/K1)
TL1000S 1997 (V) USA (E03)

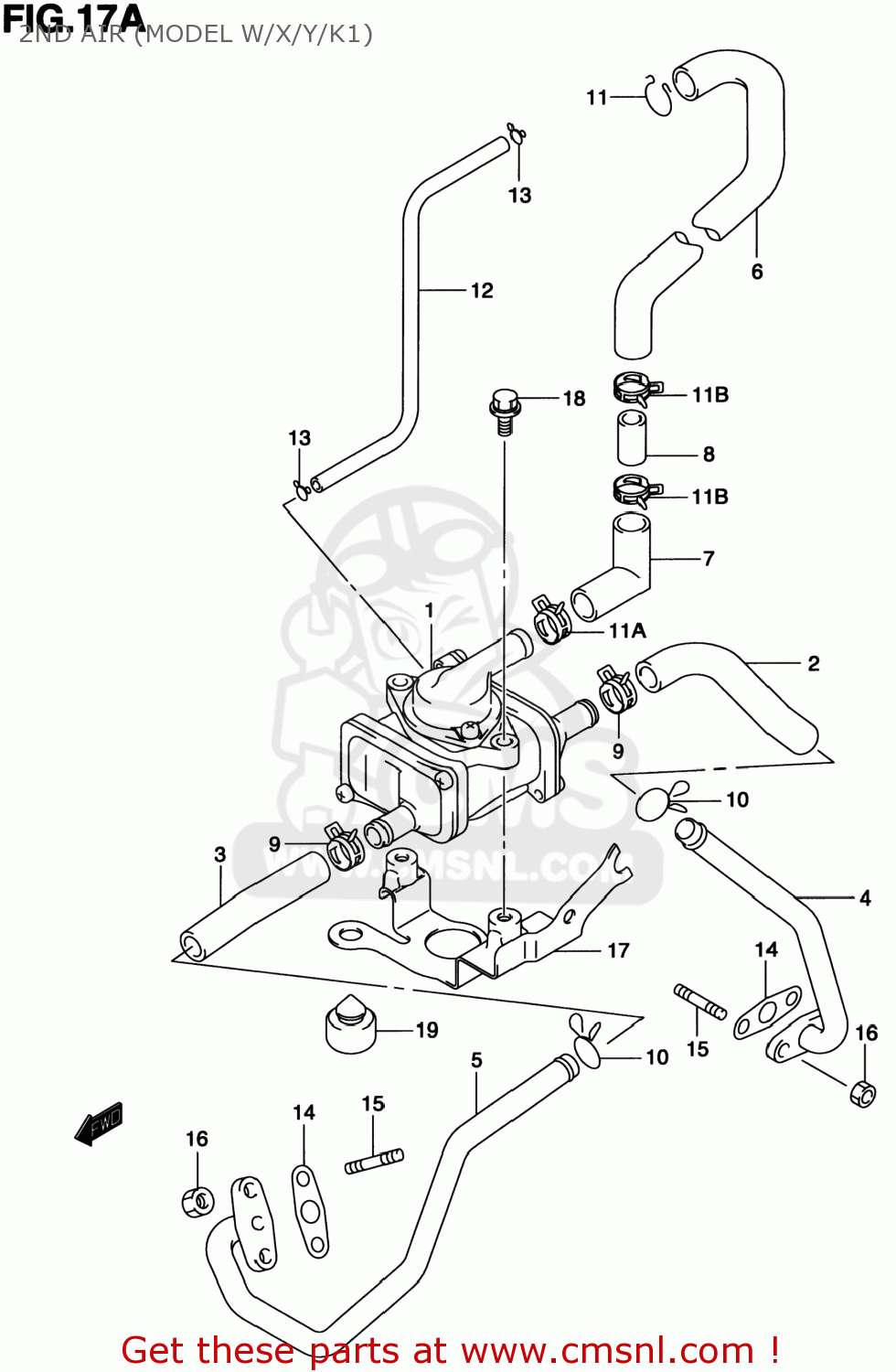

2nd air (model w/x/y/k1) diagram TL1000S 1997 (V) USA (E03)
2ND AIR (MODEL W/X/Y/K1) TL1000S 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1845048E00
ref: 1
VALVE ASSY,2ND AIR
€ 0.00
2
1846102F00
ref: 2
HOSE,2ND AIR VALVE FR
€ 19.00
3
1847102F00
ref: 3
HOSE,2ND AIR VALVE RR
€ 0.00
4
1841002F00
ref: 4
PIPE COMP,SECOND AIR,FRONT
€ 0.00
5
1842002F00
ref: 5
PIPE COMP,SECOND AIR,REAR
€ 40.50
6-1
1871102F10
ref: 6-1
HOSE,2ND AIR CLEANER
€ 0.00
6-2
1871102F20
ref: 6-2
18711-02F21
HOSE,SECOND AIR CLEANER
€ 5.50
6-3
1871102F21
ref: 6-3
HOSE,2ND AIR CLEANER
€ 5.50
7
1871202F00
ref: 7
HOSE,2ND AIR CLEANER JOINT
€ 17.50
8
1388819B00
ref: 8
JOINT,2ND AIR CLEANER HOSE
€ 5.50
9
0940115404
ref: 9
CLIP
€ 2.50
10
0940113409
ref: 10
CLIP
€ 2.50
11
0940115401
ref: 11
CLIP
€ 2.50
11A
0940115408
ref: 11A
CLIP
€ 5.00
11A
0940115408
ref: 11A
CLIP
€ 5.00
11B
0940114404
ref: 11B
CLIP
€ 2.00
11B
0940114404
ref: 11B
CLIP
€ 2.00
12
0935240703600
ref: 12
HOSE(4X7X600)
€ 3.00
13
0940106101
ref: 13
CLIP
€ 2.50
14
1844145C00
ref: 14
18441-45C01
GASKET,SECOND AIR PIPE (N (NAS)
€ 6.00
15
0142106163
ref: 15
01421-0616A
STUD BOLT
€ 2.00
16
0831610063
ref: 16
08316-1006B
NUT
€ 2.50
17
1861002F10
ref: 17
BRACKET,2ND AIR VALVE
€ 0.00
18
0155006163
ref: 18
01550-0616A
BOLT
€ 2.50
19
0932110002
ref: 19
CUSHION(11.5X22X20)
€ 2.00
