CLUTCH (MODEL X/Y/K1)
TL1000S 1997 (V) USA (E03)

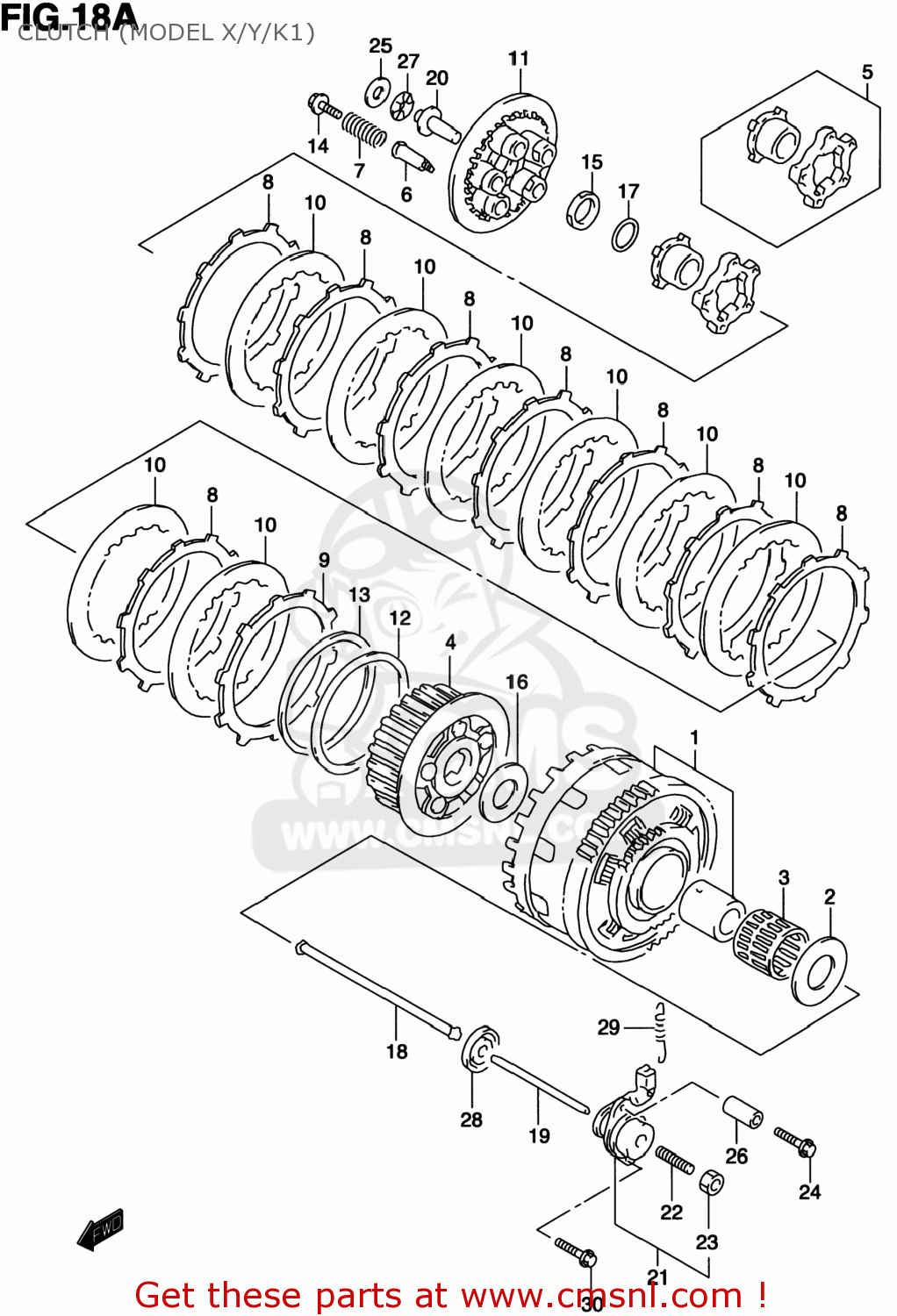

Clutch (model x/y/k1) diagram TL1000S 1997 (V) USA (E03)
CLUTCH (MODEL X/Y/K1) TL1000S 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120002820
ref: 1
GEAR ASSY,PRI DRIVEN
€ 382.50
2
0916025071
ref: 2
WASHER(25X54X2.5)
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
€ 36.50
4
2141002F10
ref: 4
HUB,CLUTCH SLEEVE
€ 145.50
5
2161002F12
ref: 5
CAM SET,CLUTCH
€ 174.00
6-1
2148102F10
ref: 6-1
21481-02F12
BOLT,SPRING SUPPORT
€ 9.50
6-2
2148102F11
ref: 6-2
21481-02F12
BOLT,CLUTCH SPRING SUPPORT
€ 9.50
7
2141302F10
ref: 7
SPRING,CLUTCH
€ 7.50
8-1
2144102F10
ref: 8-1
21441-02F11
PLATE,CLUTCH DRIVE (NAS)
€ 20.00
8-2
2144102F11
ref: 8-2
PLATE,CLUTCH DRIVE (NAS)
€ 20.00
8-3
2144102F30
ref: 8-3
PLATE,CLUTCH DRIVE NO.1 (NAS)
€ 20.00
9-1
2144202F10
ref: 9-1
21442-02F11
PLATE,CLUTCH DRIVE NO (NAS)
€ 20.00
9-2
2144202F11
ref: 9-2
PLATE,CLUTCH DRIVE NO.2 (NAS)
€ 20.00
10-1
2145102F10
ref: 10-1
PLATE,CLUTCH DRIVEN (NAS)
€ 9.00
10-2
2145102F30
ref: 10-2
PLATE,CLUTCH DRIVEN (NAS)
€ 9.00
11
2146202F10
ref: 11
DISC,CLUTCH PRESSURE
€ 58.00
12
2147102F10
ref: 12
SEAT,WAVE WASHER
€ 16.50
13
2147202F10
ref: 13
WASHER,CLUTCH PLATE WAVE
€ 18.00
14-1
2148202F10
ref: 14-1
21482-02F12
BOLT,CLUTCH SPRING
€ 3.50
14-2
2148202F11
ref: 14-2
21482-02F12
BOLT,CLUTCH SPRING
€ 3.50
15
0915924010
ref: 15
NUT
€ 11.00
16-1
0916025072
ref: 16-1
WASHER(25X50X2.5)
€ 9.00
16-2
0916025056
ref: 16-2
WASHER(25X50X2.5)
€ 9.50
17
0916424006
ref: 17
WASHER
€ 4.00
18
2311038B00
ref: 18
ROD,CLUTCH PUSH,R
€ 19.00
19
2311105A01
ref: 19
ROD,CLUTCH PUSH
€ 13.50
20
2312138B00
ref: 20
PIECE,CLUTCH PUSH
€ 25.00
21
2320015500
ref: 21
SCREW ASSY,CLUTCH RELEASE
€ 46.50
22
0913406010
ref: 22
SCREW(6X25)
€ 3.00
23
0831000067
ref: 23
NUT
€ 2.50
24
0910306197
ref: 24
09103-06195
BOLT
€ 3.50
25
0916015045
ref: 25
WASHER(15.5X28X1)
€ 4.00
26
0918006322
ref: 26
SPACER(6.2X12X50)
€ 6.00
27
0926315003
ref: 27
BEARING(15X28X2)
€ 7.00
28
0928506015
ref: 28
SEAL,OIL(6X34X5.5)
€ 8.50
29
0944308047
ref: 29
SPRING
€ 3.50
30
0155006603
ref: 30
01550-0660A
BOLT
€ 2.50
