FRAME COVER (MODEL X/Y)
TL1000S 1997 (V) USA (E03)

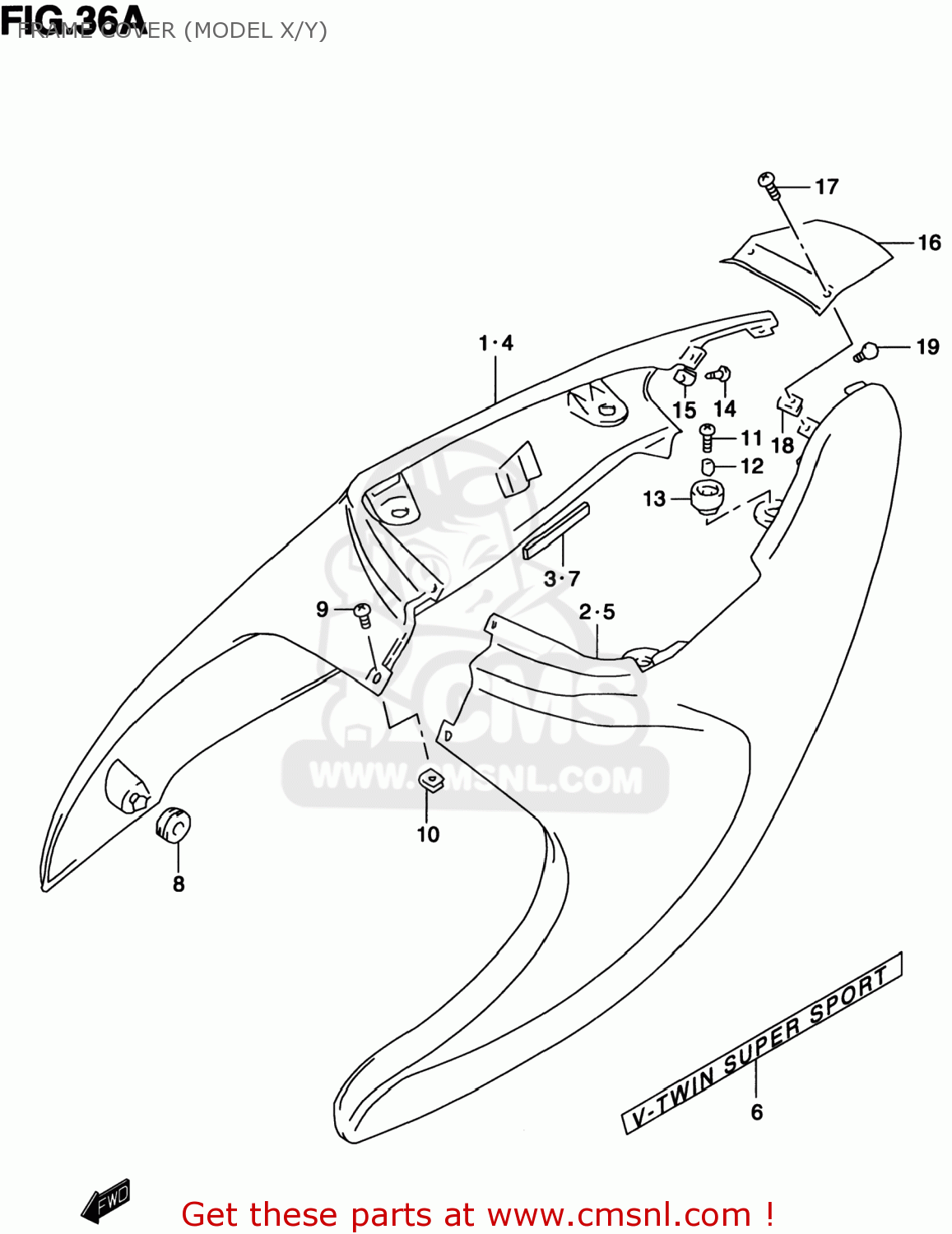

Frame cover (model x/y) diagram TL1000S 1997 (V) USA (E03)
FRAME COVER (MODEL X/Y) TL1000S 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4711002F10Y0W
ref: 1-1
COVER,FRAME,R(ORANGE)
€ 0.00
1-2
4711002F10Y7M
ref: 1-2
COVER,FRAME,R(RED)
€ 0.00
1-3
4711002F10Y9H
ref: 1-3
COVER,FRAME,R(YELLOW)
€ 0.00
2-1
4721002F10Y0W
ref: 2-1
COVER,FRAME,L(ORANGE)
€ 0.00
2-2
4721002F10Y7M
ref: 2-2
COVER,FRAME,L(RED)
€ 0.00
2-3
4721002F10Y9H
ref: 2-3
COVER,FRAME,L(YELLOW)
€ 0.00
3
4716102F00
ref: 3
CUSHION,FRAME COVER
€ 4.00
4
4711002F20Y7H
ref: 4
COVER,FRAME,R(BLUE)
€ 141.00
5
4721002F20Y7H
ref: 5
COVER,FRAME,L(BLUE)
€ 141.00
6
6813102F20M1E
ref: 6
EMBLEM,COVER
€ 10.50
7
4716102F00
ref: 7
CUSHION,FRAME COVER
€ 4.00
8
0932008018
ref: 8
CUSHION
€ 4.00
9
0324115123
ref: 9
03241-1512B
SCREW
€ 2.50
10
0914805038
ref: 10
NUT
€ 2.50
11
0913606105
ref: 11
SCREW(6X20)
€ 2.00
12
0918006286
ref: 12
SPACER(6.5X10X9.4)
€ 2.50
13
0932010045
ref: 13
CUSHION
€ 3.50
14
0913605034
ref: 14
SCREW(5X16)
€ 2.00
15
0914805038
ref: 15
NUT
€ 2.50
16-1
4731102F00Y0W
ref: 16-1
COVER,FRAME CTR
€ 25.50
16-2
4731102F00Y7M
ref: 16-2
COVER,FRAME,CENTER
€ 28.50
16-3
4731102F00Y7H
ref: 16-3
COVER,FRAME CTR
€ 30.00
16-4
4731102F00Y9H
ref: 16-4
COVER,FRAME CTR
€ 30.00
17
0324115123
ref: 17
03241-1512B
SCREW
€ 2.50
18
0914805038
ref: 18
NUT
€ 2.50
19
4712902F00
ref: 19
CUSHION
€ 7.50
