MAGNETO

TL1000S 1997 (V) USA (E03)

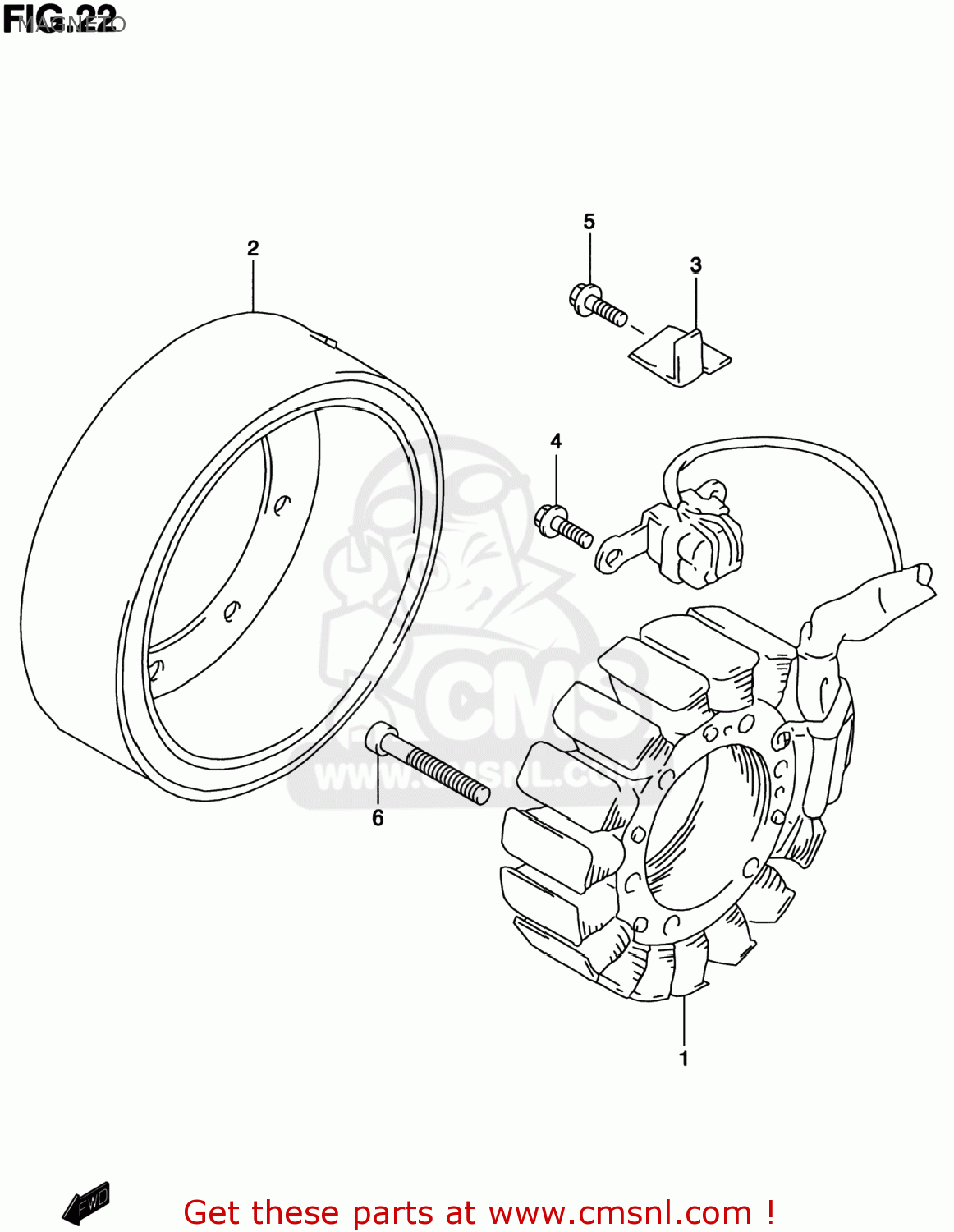

Magneto diagram TL1000S 1997 (V) USA (E03)

MAGNETO TL1000S 1997 (V) USA (E03)

MAGNETO TL1000S 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210102F00
ref: 1

STARTER ASSY

€ 591.00

2

3210202F00
ref: 2

ROTOR ASSY

€ 390.50

3

3237113E00
ref: 3

CLAMP,MAGNETO LEAD NO.1

€ 3.00

4

0154705103
ref: 4
01547-0510B

BOLT

€ 2.50

5

0154705103
ref: 5
01547-0510B

BOLT

€ 2.50

6

0713006353
ref: 6
07130-0635B

BOLT

€ 3.50
