CLUTCH (MODEL V/W)
TL1000S 1997 (V) USA (E03)

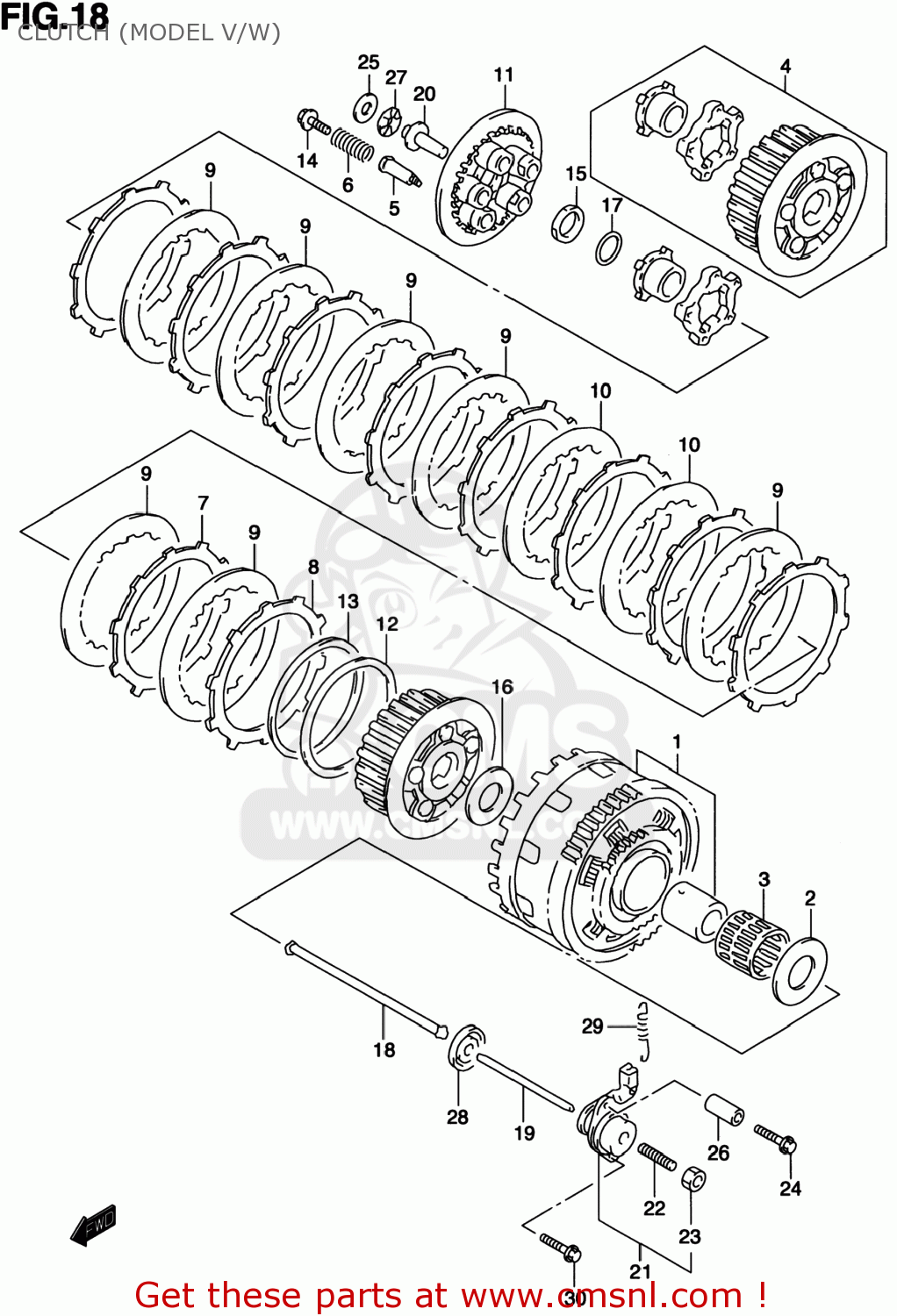

Clutch (model v/w) diagram TL1000S 1997 (V) USA (E03)
CLUTCH (MODEL V/W) TL1000S 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120002810
ref: 1
GEAR ASSY,PRI DRIVEN
€ 382.00
2-1
0916025067
ref: 2-1
WASHER(25X54X2.5)
€ 9.00
2-2
0916025071
ref: 2-2
WASHER(25X54X2.5)
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
€ 36.50
4
2161002F00
ref: 4
CAM SET,CLUTCH
€ 240.50
5
2141102F00
ref: 5
BOLT,CLUTCH SPRING SUPPORT
€ 9.00
6
2141302F00
ref: 6
SPRING,CLUTCH ASSIST
€ 7.50
7
2144131E40
ref: 7
21441-31E50
PLATE,CLUTCH DRIVE NO (NAS)
€ 21.00
8
2144231E00
ref: 8
PLATE,CLUTCH DRIVE
€ 25.50
9
2145131E00
ref: 9
PLATE,CLUTCH DRIVEN NO.1
€ 7.00
10
2145131E10
ref: 10
PLATE,CLUTCH DRIVEN NO.2
€ 7.50
11
2146202F00
ref: 11
DISC,CLUTCH PRESSURE
€ 52.50
12
2147131E00
ref: 12
SEAT,CLUTCH PLATE WAVE WASHER
€ 12.00
13
2147231E01
ref: 13
WASHER,CLUTCH PLATE WAVE
€ 15.00
14
2148213E00
ref: 14
BOLT,CLUTCH SPRING
€ 3.00
15
0915924010
ref: 15
NUT
€ 11.00
16-1
0916025056
ref: 16-1
WASHER(25X50X2.5)
€ 9.50
16-1
0916025056
ref: 16-1
WASHER(25X50X2.5)
€ 9.50
16-2
0916025072
ref: 16-2
WASHER(25X50X2.5)
€ 9.00
16-2
0916025072
ref: 16-2
WASHER(25X50X2.5)
€ 9.00
17
0916424006
ref: 17
WASHER
€ 4.00
18
2311038B00
ref: 18
ROD,CLUTCH PUSH,R
€ 19.00
19
2311134C00
ref: 19
ROD,CLUTCH PUSH,L
€ 15.50
20
2312138B00
ref: 20
PIECE,CLUTCH PUSH
€ 25.00
21
2320015500
ref: 21
SCREW ASSY,CLUTCH RELEASE
€ 46.50
22
0913406010
ref: 22
SCREW(6X25)
€ 3.00
23
0831000067
ref: 23
NUT
€ 2.50
24
0910306197
ref: 24
09103-06195
BOLT
€ 3.50
25
0916015045
ref: 25
WASHER(15.5X28X1)
€ 4.00
26
0918006322
ref: 26
SPACER(6.2X12X50)
€ 6.00
27
0926315003
ref: 27
BEARING(15X28X2)
€ 7.00
28
0928506015
ref: 28
SEAL,OIL(6X34X5.5)
€ 8.50
29
0944308047
ref: 29
SPRING
€ 3.50
30
0155006603
ref: 30
01550-0660A
BOLT
€ 2.50
31
2144002F00
ref: 31
PLATE SET,CLUTCH
€ 131.00
31
2144002F00
ref: 31
PLATE SET,CLUTCH
€ 131.00
