STAND

TL1000S 1997 (V) USA (E03)

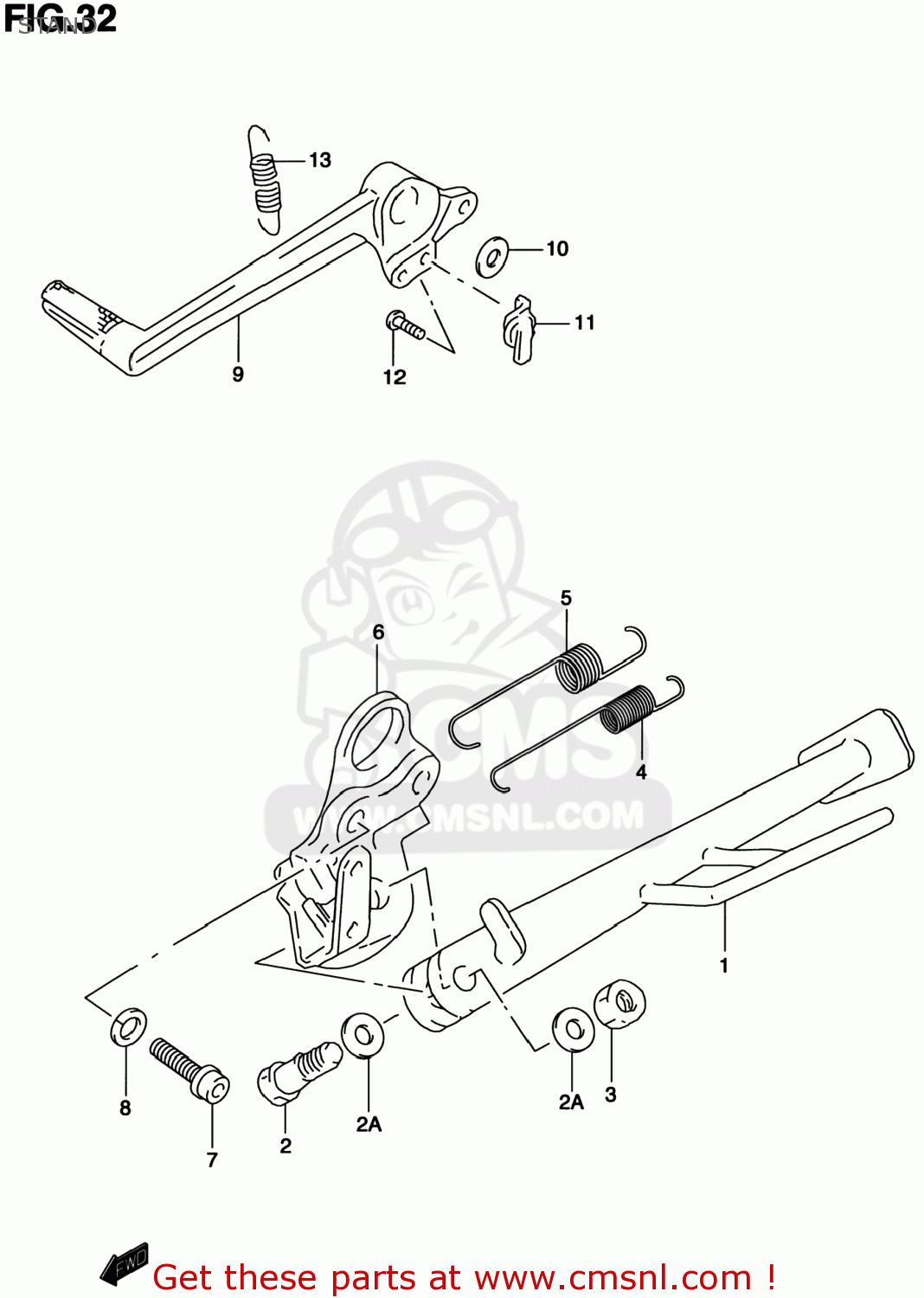

Stand diagram TL1000S 1997 (V) USA (E03)

STAND TL1000S 1997 (V) USA (E03)

STAND TL1000S 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231002F10
ref: 1

STAND,PROP

€ 0.00

2

0911110027
ref: 2

BOLT(10X34)

€ 3.50

2A

0916408015
ref: 2A

WASHER

€ 3.00

3-1

0831921103
ref: 3-1
08319-2110A

NUT

€ 2.00

3-2

0915910097
ref: 3-2

NUT

€ 5.00

4

0944314066
ref: 4

SPRING

€ 5.00

5

0944319012
ref: 5

SPRING

€ 5.50

6

4233002F00
ref: 6

BRACKET,PROP STAND

€ 74.50

7

0712008303
ref: 7
07120-0830A

BOLT

€ 3.50

8

0832101083
ref: 8
08321-0108A

LOCK WASHER

€ 2.50

9

4311133E00
ref: 9

PEDAL,BRAKE

€ 100.50

10

0916018022
ref: 10

WASHER(18X24X1)

€ 3.00

11

4356133E00
ref: 11

HOOK,RETURN SPRING

€ 6.50

12

0211205163
ref: 12
02112-0516A

SCREW

€ 2.00

13

0944311030
ref: 13

SPRING

€ 4.00
