FRONT CALIPERS

TL1000S 1997 (V) USA (E03)

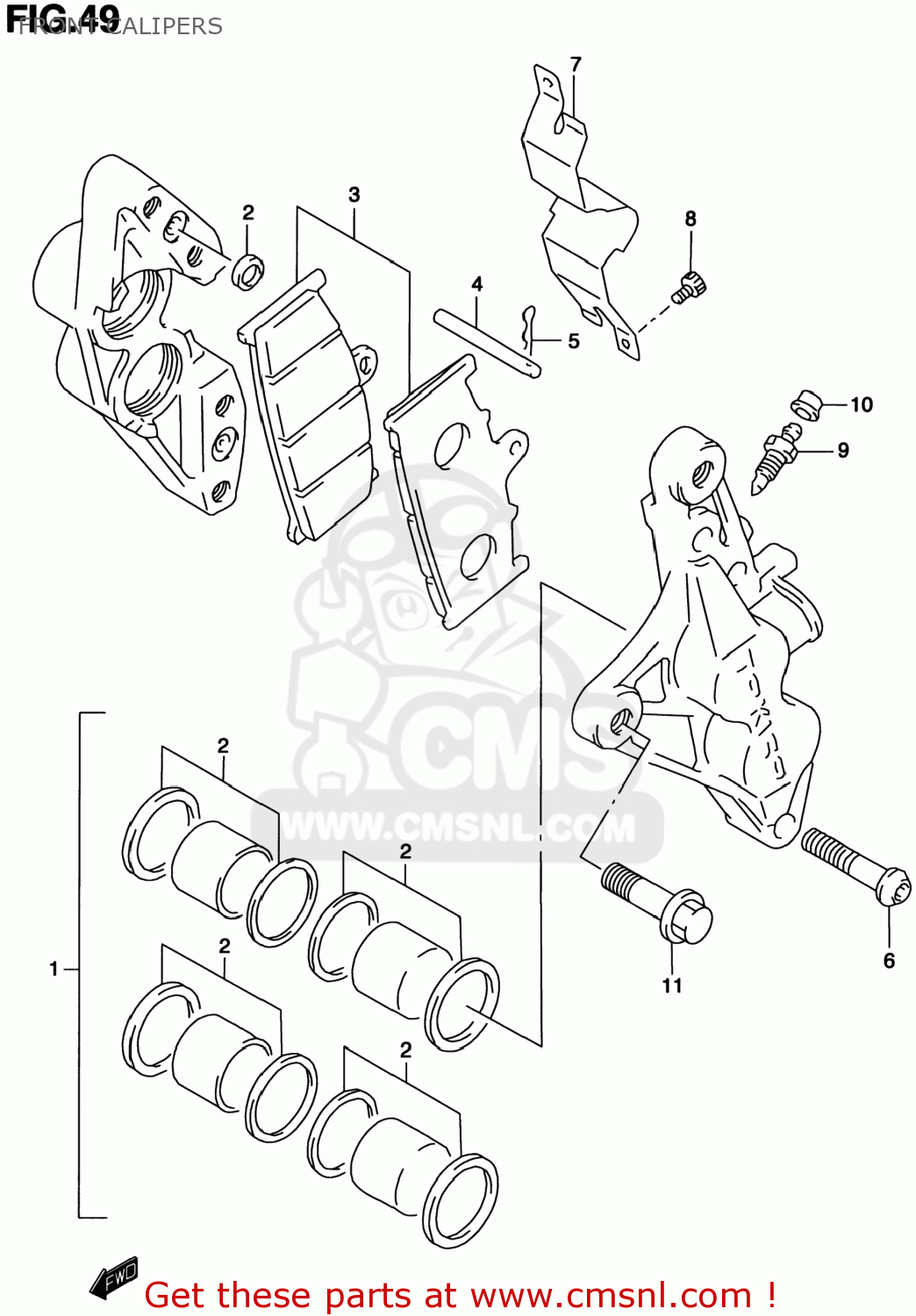

Front calipers diagram TL1000S 1997 (V) USA (E03)

FRONT CALIPERS TL1000S 1997 (V) USA (E03)

FRONT CALIPERS TL1000S 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity



5910034E00
ref:

CALIPER ASSY,FR,R

€ 621.00



5930034E00
ref:

CALIPER ASSY,FR,L

€ 531.50

1

5930034810
ref: 1
59300-34811

PISTON SET

€ 82.00

2

5930034820
ref: 2
59300-34821

SEAL SET,PISTON

€ 37.00

3

5930034830
ref: 3

PAD SET (NAS)

€ 43.00

4

6914145000
ref: 4

PIN,PAD

€ 6.50

5

6914245000
ref: 5

CLIP,PAD PIN

€ 4.50

6

5914534E00
ref: 6

BOLT,HOUSING

€ 8.00

7-1

5915222D01
ref: 7-1

COVER,CALIPER DUST,R

€ 15.00

7-2

5915122D01
ref: 7-2

COVER,CALIPER DUST,L

€ 15.00

8

5915322D00
ref: 8

SCREW

€ 4.50

9

5912118410
ref: 9

BLEEDER

€ 8.00

10

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

11

0910310296
ref: 11

BOLT(10X30)

€ 6.00
