STEERING STEM (MODEL V)
TL1000S 1997 (V) USA (E03)

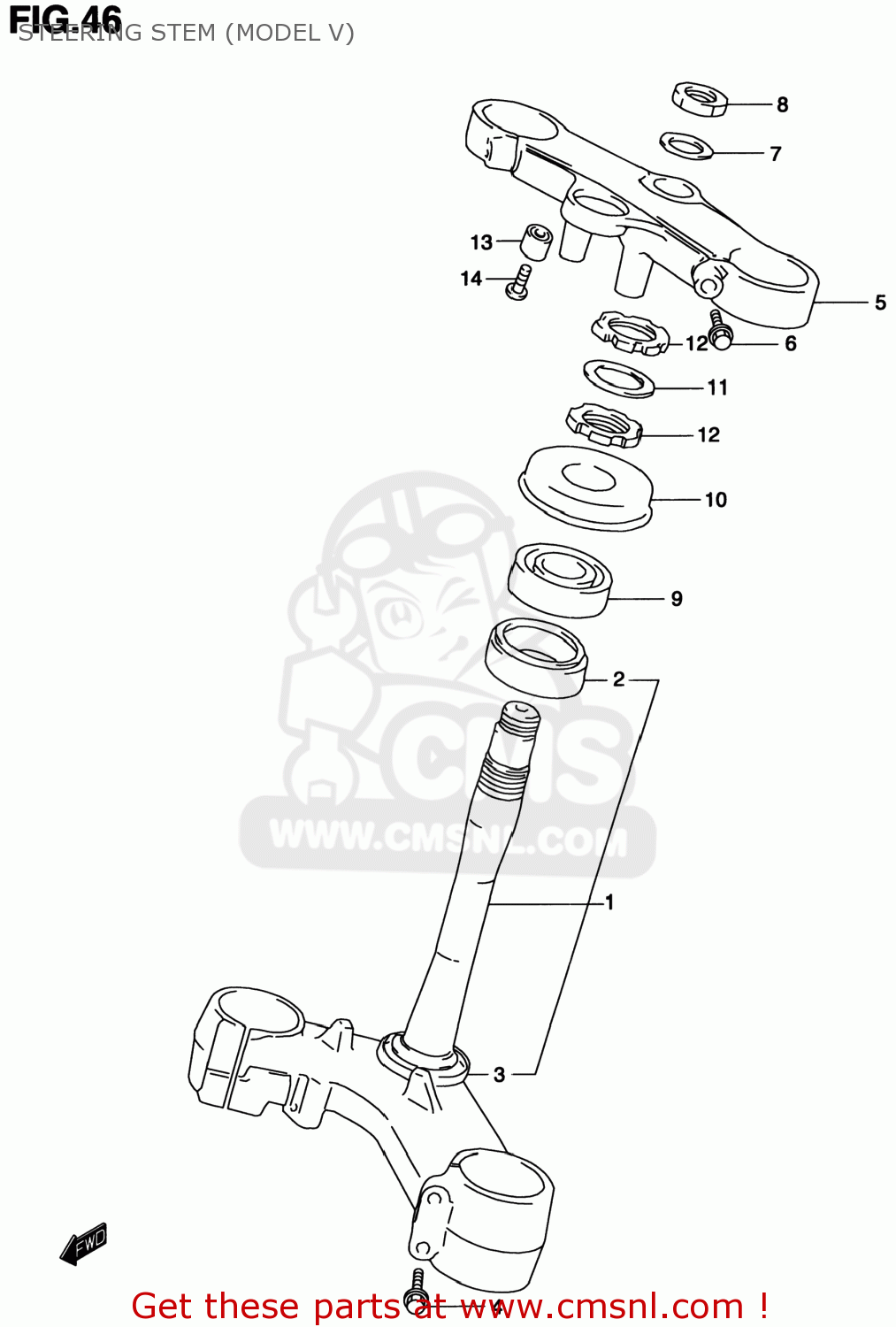

Steering stem (model v) diagram TL1000S 1997 (V) USA (E03)
STEERING STEM (MODEL V) TL1000S 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141002F00
ref: 1
STEM,STEERING
€ 716.50
2
0926730010
ref: 2
BEARING(30X55X17)
€ 46.50
3
5164412C00
ref: 3
SEAL,STEERING LWR
€ 5.50
4
0155008407
ref: 4
BOLT
€ 3.50
5
5131102F00
ref: 5
51311-02F10
HEAD,STEERING STEM
€ 345.50
6-1
0155008357
ref: 6-1
BOLT
€ 3.50
6-2
5132803FA0
ref: 6-2
BOLT(8X32)
€ 3.00
6-3
0155008357
ref: 6-3
BOLT
€ 3.50
7-1
5135627C00
ref: 7-1
WASHER,STEM HEAD(24.5X34X1.6)
€ 2.50
7-2
5172302F00
ref: 7-2
WASHER,STEERING DAMPER
€ 4.50
8-1
5135302F00
ref: 8-1
NUT
€ 26.50
8-2
5135302F10
ref: 8-2
NUT,STEM TOP
€ 24.50
9
0926730010
ref: 9
BEARING(30X55X17)
€ 46.50
10
5164333E00
ref: 10
SEAL,STEERING UPR DUST
€ 12.50
11
5164133E00
ref: 11
WASHER,STEERING STEM
€ 3.00
12
5163133E00
ref: 12
NUT,STEERING STEM
€ 12.00
13
5627802F00
ref: 13
BALANCER,BRACKET UPR
€ 18.50
14
0214206303
ref: 14
02142-0630B
SCREW
€ 2.00
