CYLINDER
TL1000S 1997 (V) USA (E03)

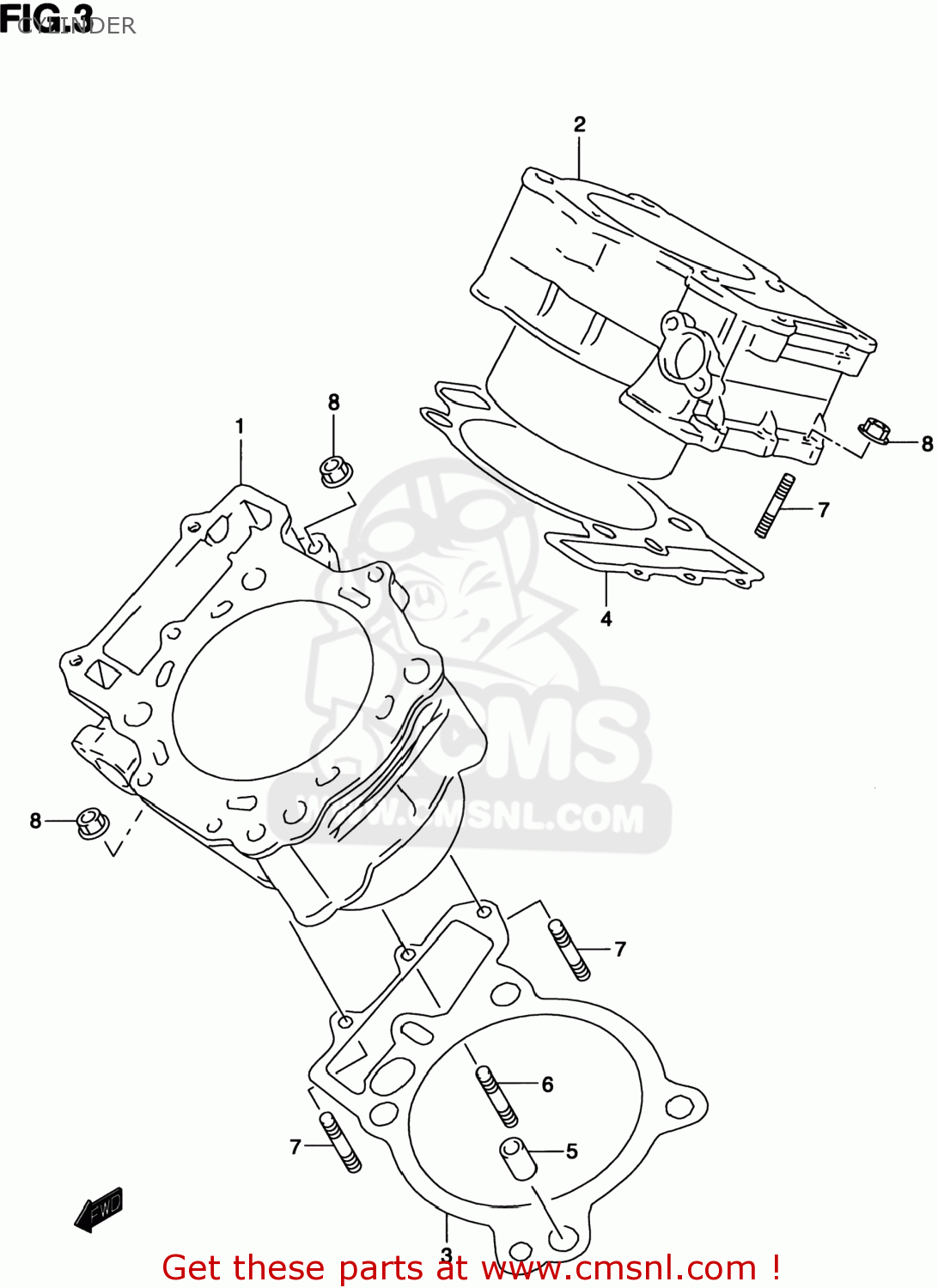

Cylinder diagram TL1000S 1997 (V) USA (E03)
CYLINDER TL1000S 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121102F000F0
ref: 1-1
11211-02F02-0F0
CYLINDER,FRONT
€ 1,113.50
1-2
1121102F010F0
ref: 1-2
11211-02F02-0F0
CYLINDER,FRONT
€ 1,113.50
1-3
1121102F020F0
ref: 1-3
CYLINDER,FR
€ 1,113.50
2-1
1122102F000F0
ref: 2-1
11221-02F02-0F0
CYLINDER,REAR
€ 663.00
2-2
1122102F010F0
ref: 2-2
11221-02F02-0F0
CYLINDER,REAR
€ 663.00
2-3
1122102F020F0
ref: 2-3
CYLINDER,RR
€ 663.00
3-1
1124102F00
ref: 3-1
11241-02F01
GASKET,CYLINDER,FRONT (NAS)
€ 19.50
3-2
1124102F01
ref: 3-2
GASKET,CYLINDER FR (NAS)
€ 19.50
4-1
1124202F00
ref: 4-1
11242-02F01
GASKET,CYLINDER,REAR (NAS)
€ 19.50
4-2
1124202F01
ref: 4-2
GASKET,CYLINDER RR (NAS)
€ 19.50
5
0421113189
ref: 5
PIN
€ 2.50
6
0910806118
ref: 6
STUD BOLT (L:20)
€ 2.00
7
0142106203
ref: 7
01421-0620A
STUD,M6X1X32
€ 2.50
8
0831610063
ref: 8
08316-1006B
NUT
€ 2.50
