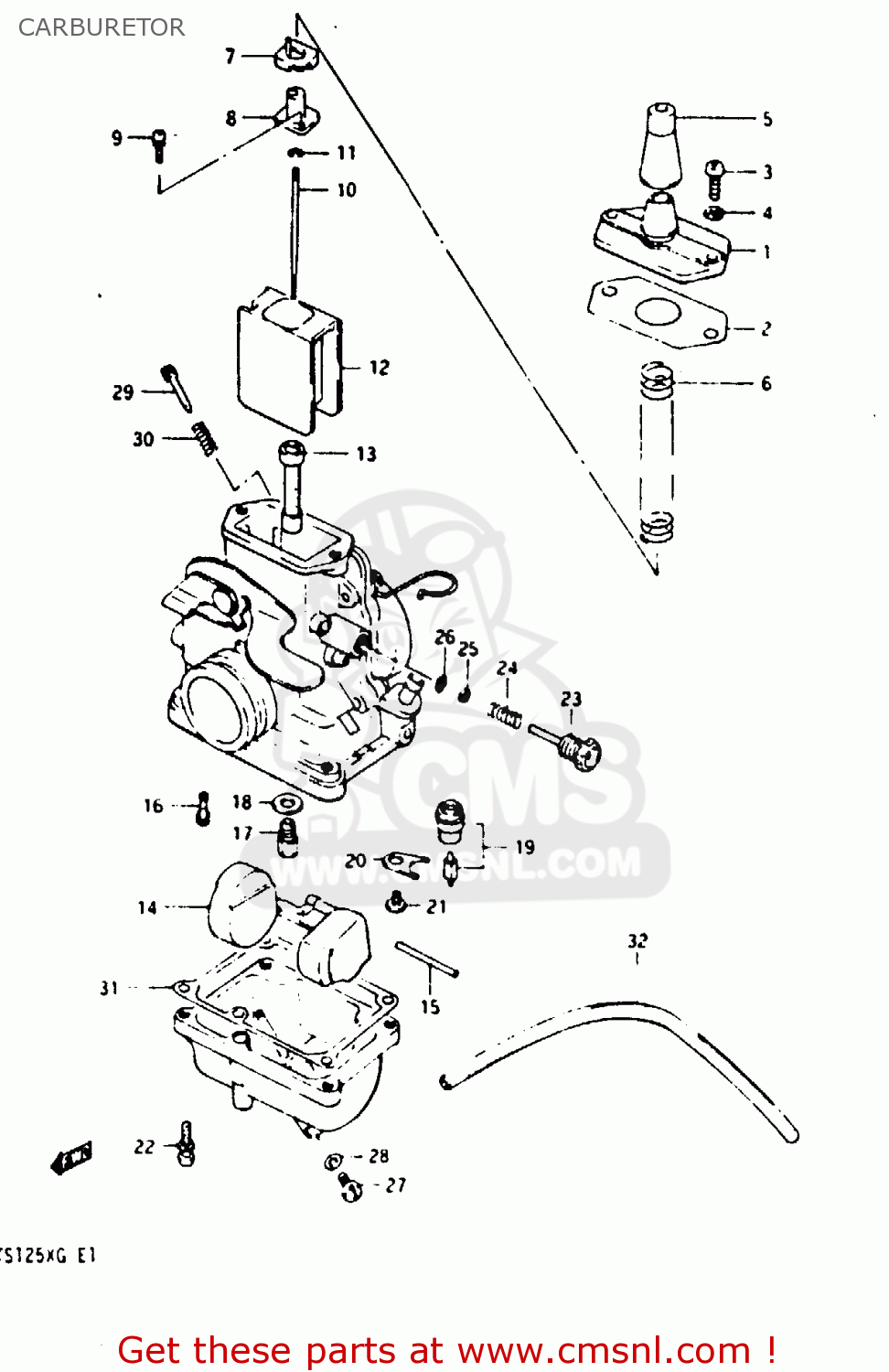

CARBURETOR

ref

part #

description

quantity

0

1320001A00
ref: 0

CARBURETOR ASSY

€ 295.00

1

1326101A00
ref: 1

CAP, TOP

€ 0.00

2

1326601A10
ref: 2

GASKET,CARBURETOR TOP (NAS)

€ 4.50

3

0211204128
ref: 3

SCREW

€ 1.50

4

0832121048
ref: 4

LOCK WASHER

€ 2.00

5

1368116600
ref: 5

CAP,RUBBER

€ 7.00

6

1357301A00
ref: 6

SPRING

€ 1.50

7

1362901A00
ref: 7

RING

€ 4.00

8

1339801A00
ref: 8

JOINT

€ 7.00

9

1360101A00
ref: 9

SCREW

€ 2.50

10

1338301A00
ref: 10

NEEDLE, JET (5DP1-3)

€ 13.00

11

1339410010
ref: 11

CLIP

€ 4.50

12

1355101A00
ref: 12

VALVE, PISTON (CA:3.0)

€ 66.50

13

0949400472
ref: 13

JET,NEEDLE(0-6)

€ 26.50

14

1325246010
ref: 14

FLOAT

€ 20.00

15

1325401010
ref: 15

PIN,FLOAT

€ 3.00

16

0949217006
ref: 16

JET,PILOT(17.5)

€ 7.50

17

0949127005
ref: 17

JET

€ 10.50

18

1333244080
ref: 18

WASHER,NEEDLE NOZZLE

€ 2.50

19

1337039161
ref: 19

VALVE ASSEMBLY,NEEDLE

€ 54.50

20

1337339110
ref: 20

PLATE

€ 6.50

21

0211204068
ref: 21

SCREW 4X6

€ 2.00

22

1360104148
ref: 22

SCREW

€ 2.50

23

1326716700
ref: 23

ADJUSTER,THROTTLE STOP

€ 11.00

24

1326835010
ref: 24

SPRING

€ 3.00

25

1329135010
ref: 25

WASHER

€ 2.50

26

1329533010
ref: 26

O RING

€ 4.50

27

1324701A00
ref: 27

SCREW, DRAIN

€ 6.00

28

1324905010
ref: 28

GASKET,DRAIN,PLUG (NAS)

€ 1.50

29

1326916700
ref: 29

SCREW,AIR

€ 9.50

30

1326801010
ref: 30

SPRING

€ 3.50

31

1325146010
ref: 31

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

32

1368339110
ref: 32

HOSE

€ 8.00
