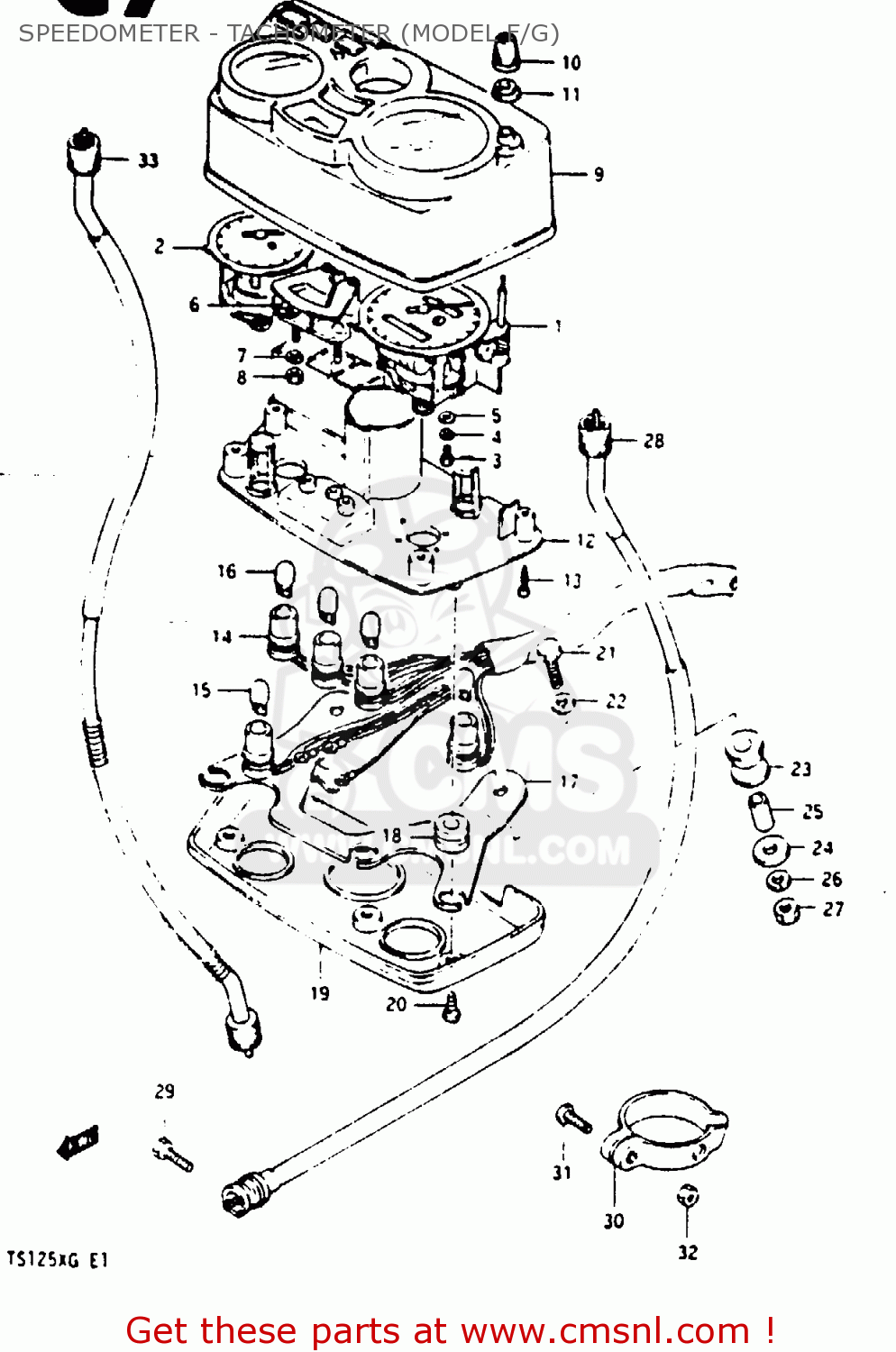

SPEEDOMETER - TACHOMETER (MODEL F/G) - TS125XU 1985 (F) UNITED KINGDOM (E02)

ref

part #

description

quantity

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

3412001A20
ref: 1-2

SPEEDOMETER (MILE/KILO)

€ 0.00

2

3422001A00
ref: 2

TACHOMETER

€ 79.50

3

0211203106
ref: 3

SCREW

€ 1.50

4

0832121036
ref: 4

LOCK WASHER

€ 1.50

5

0832221036
ref: 5

WASHER 3.3X8X0

€ 1.50

6

3442001A00
ref: 6

GAUGE, WATER TEMPERATURE

€ 79.00

7

0832121046
ref: 7

LOCK WASHER

€ 2.00

8

0831022046
ref: 8

NUT

€ 2.00

9-1

3415001A00
ref: 9-1

HOOD, METER

€ 81.50

9-2

NOTUSED
ref: 9-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

3412449910
ref: 10

KNOB,TRIP METER

€ 10.00

11

3499649910
ref: 11

SEAL,TRIP KNOB

€ 4.00

12

3411101A00
ref: 12

CASE,METER

€ 58.00

13

3645601A00
ref: 13

SCREW

€ 2.00

14

3417001A00
ref: 14

SOCKET, METER

€ 46.00

15

0947112082
ref: 15

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

16

0947112077
ref: 16

BULB(12V1.7W,T10,WB121)

€ 1.00

17

3495001A00
ref: 17

BRACKET,METER

€ 31.00

18

3495528010
ref: 18

CUSHION

€ 4.00

19

3419301A00
ref: 19

COVER, LOWER

€ 64.50

20

0311204125
ref: 20

SCREW

€ 1.50

21

0110706305
ref: 21

BOLT

€ 2.50

22

0832121064
ref: 22

WASHER,LOCK

€ 2.00

23

3495615100
ref: 23

CUSHION

€ 4.00

24

0916006039
ref: 24

WASHER (6.5X18X1.6)

€ 2.00

25

0918006040
ref: 25

SPACER (6.1X8X15.5)

€ 2.00

26

0832121068
ref: 26

LOCK WASHER

€ 2.50

27

0831011068
ref: 27

NUT

€ 2.50

28

3491001A11
ref: 28

CABLE, SPEEDOMETER

€ 25.50

29

0110705168
ref: 29

BOLT

€ 1.50

30

3493801A00
ref: 30

CLAMP,SPEEDOMETER CABLE

€ 7.50

31

0211205165
ref: 31

SCREW

€ 2.00

32

0831012055
ref: 32

NUT ,5MM

€ 2.50

33

3494001A00
ref: 33

CABLE ASSY,TACHOMETER

€ 23.50
