CRANKCASE
TS125XU 1985 (F) UNITED KINGDOM (E02)

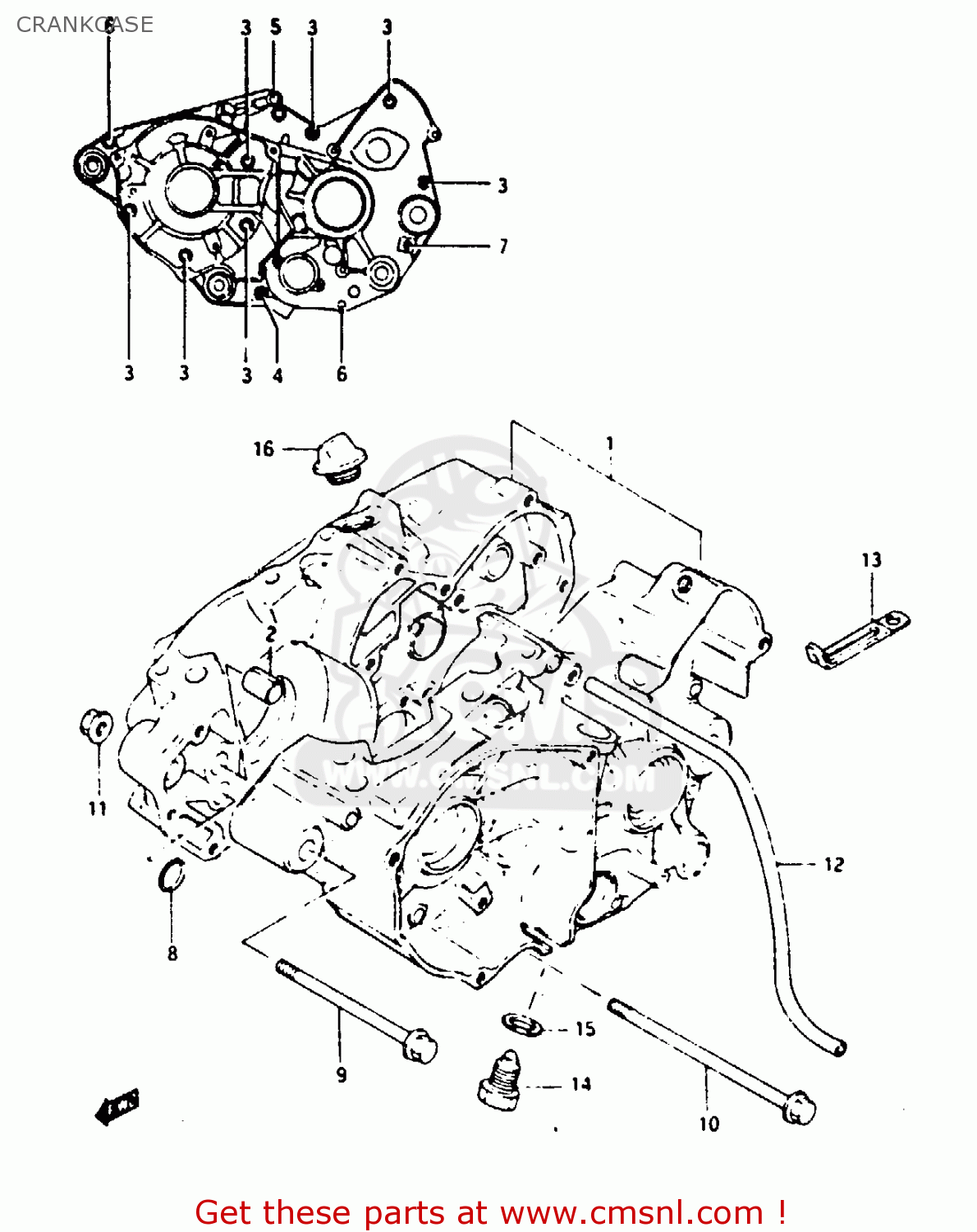

Crankcase diagram TS125XU 1985 (F) UNITED KINGDOM (E02)
CRANKCASE TS125XU 1985 (F) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130401890
ref: 1-1
MODEL E ~E.NO.100636
CRANKCASE SET
€ 564.50
1-2
1130401892
ref: 1-2
MODEL E E.NO.100637~
CRANKCASE SET
€ 564.50
1-3
1130501890
ref: 1-3
MODEL G
CRANKCASE SET
€ 564.50
2
0920613001
ref: 2
PIN
€ 2.50
3
0211206455
ref: 3
SCREW
€ 1.50
4
0211206605
ref: 4
SCREW (6*60)
€ 2.50
5
0211206654
ref: 5
SCREW
€ 2.00
6
0211206705
ref: 6
SCREW
€ 2.50
7
0211206755
ref: 7
SCREW (6*75)
€ 1.50
8
0928016010
ref: 8
O RING(D:1.9,ID:15.8)
€ 1.50
9
0910308070
ref: 9
BOLT(8X100)
€ 5.00
10
0910308106
ref: 10
BOLT(8X125)
€ 8.00
11
0831931088
ref: 11
NUT
€ 2.50
12
0934304046
ref: 12
HOSE
€ 3.00
13
0940406402
ref: 13
CLAMP
€ 2.50
14
0924714020
ref: 14
PLUG
€ 3.50
15
0916814004
ref: 15
GASKET(14X19.2X2) (NAS)
€ 2.50
16
0920020810
ref: 16
PLUG SET
€ 8.00
