CYLINDER
TS125XU 1985 (F) UNITED KINGDOM (E02)

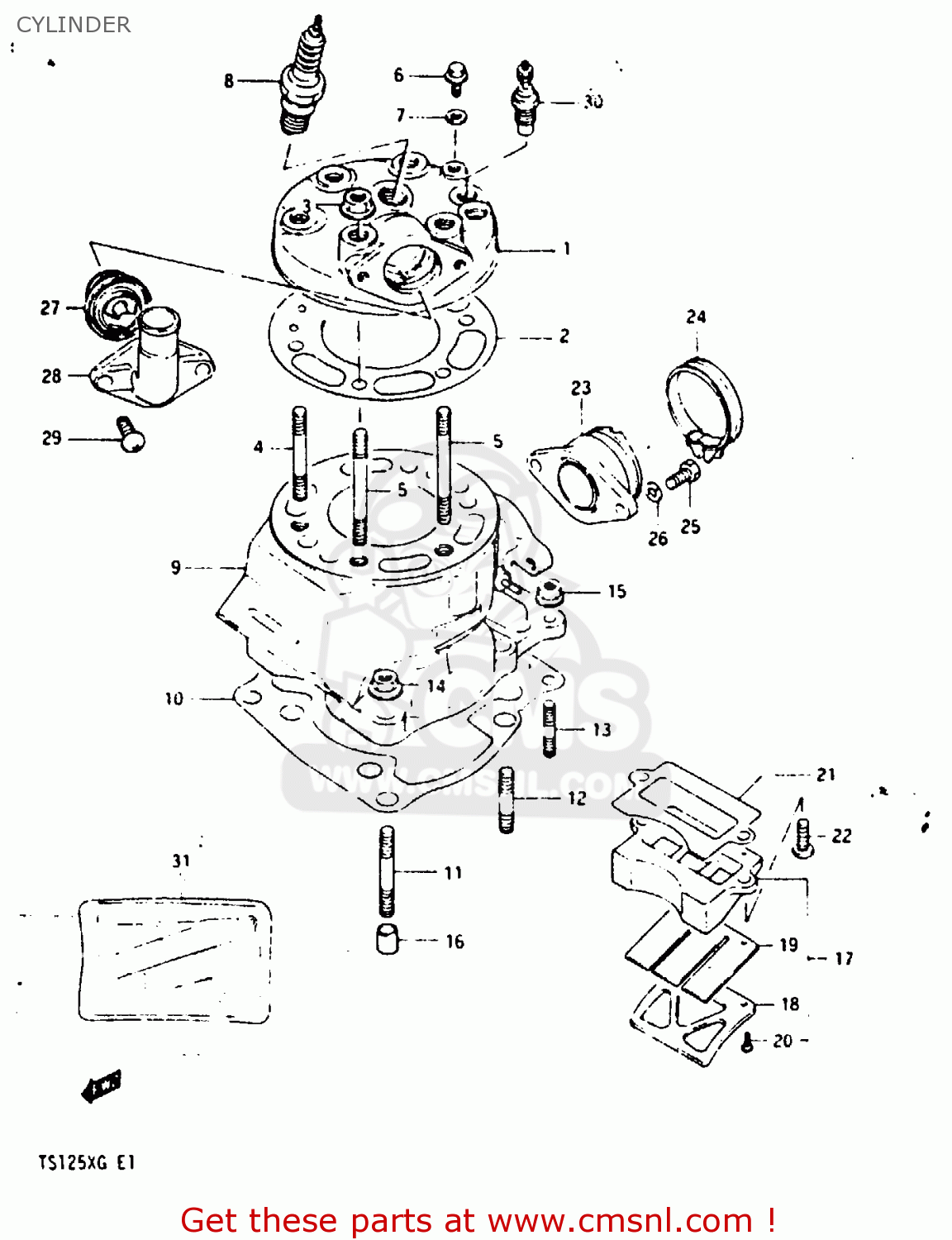

Cylinder diagram TS125XU 1985 (F) UNITED KINGDOM (E02)
CYLINDER TS125XU 1985 (F) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111101A01
ref: 1-1
MODEL E/F
CYLINDER HEAD
€ 94.00
1-2
1111101A10
ref: 1-2
MODEL G
CYLINDER HEAD
€ 94.00
2
1114101A03
ref: 2
GASKET, CYLINDER HEAD
€ 29.00
3
0831616085
ref: 3
NUT 8MM
€ 3.00
4
0910808143
ref: 4
BOLT,STUD
€ 3.00
5
0910808105
ref: 5
STUD
€ 4.00
6
0936006015
ref: 6
UNION
€ 3.00
7
0916806004
ref: 7
GASKET(6.2X11X1).2 (NAS)
€ 1.50
8-1
0948200091
ref: 8-1
PLUG,SPARK
€ 3.00
8-2
0948200092
ref: 8-2
PLUG,SPARK(W24ES)
€ 3.50
8-3
NOTUSED
ref: 8-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8-4
NOTUSED
ref: 8-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9-1
1121001A04
ref: 9-1
MODEL E/F
CYLINDER
€ 406.00
9-2
1121001A10
ref: 9-2
MODEL G
CYLINDER
€ 406.00
10
1124101A00
ref: 10
GASKET, CYLINDER (MCA)
€ 18.50
11
0910808094
ref: 11
STUD
€ 3.00
12
0910808095
ref: 12
STUD
€ 8.50
13
0142106205
ref: 13
STUD BOLT L:20
€ 2.50
14
0831616085
ref: 14
NUT 8MM
€ 3.00
15
0831616064
ref: 15
NUT 6MM
€ 2.50
16
0421111169
ref: 16
PIN
€ 2.00
17
1315001A00
ref: 17
VALVE ASSY, REED
€ 107.00
18
1315214500
ref: 18
STOPPER,REED VALVE
€ 7.00
19
1315316700
ref: 19
VALVE,REED
€ 7.50
20
1315419011
ref: 20
SCREW,REED VALVE
€ 1.50
21
1315616701
ref: 21
GASKET, REED VALVE (MCA)
€ 3.50
22
0211206168
ref: 22
SCREW
€ 2.50
23
1311001A00
ref: 23
PIPE,INTAKE
€ 31.50
24
0940240207
ref: 24
CLAMP
€ 4.00
25
0110706165
ref: 25
BOLT 6X16
€ 2.00
26
0832121064
ref: 26
WASHER,LOCK
€ 2.00
27
1767001A00
ref: 27
THERMOSTAT,WATER 65 DEG
€ 35.00
28-1
1766101A00
ref: 28-1
MODEL E/F
COVER, THERMOSTAT
€ 38.50
28-2
1766113A10
ref: 28-2
MODEL G
COVER, THERMOSTAT
€ 38.50
29
0211206205
ref: 29
SCREW
€ 2.00
30
3485016700
ref: 30
GAUGE, WATER TEMP
€ 75.00
31
1140201891
ref: 31
OPT
GASKET SET (MCA)
€ 73.50
