SPEEDOMETER - TACHOMETER (MODEL E)

TS125XU 1985 (F) UNITED KINGDOM (E02)

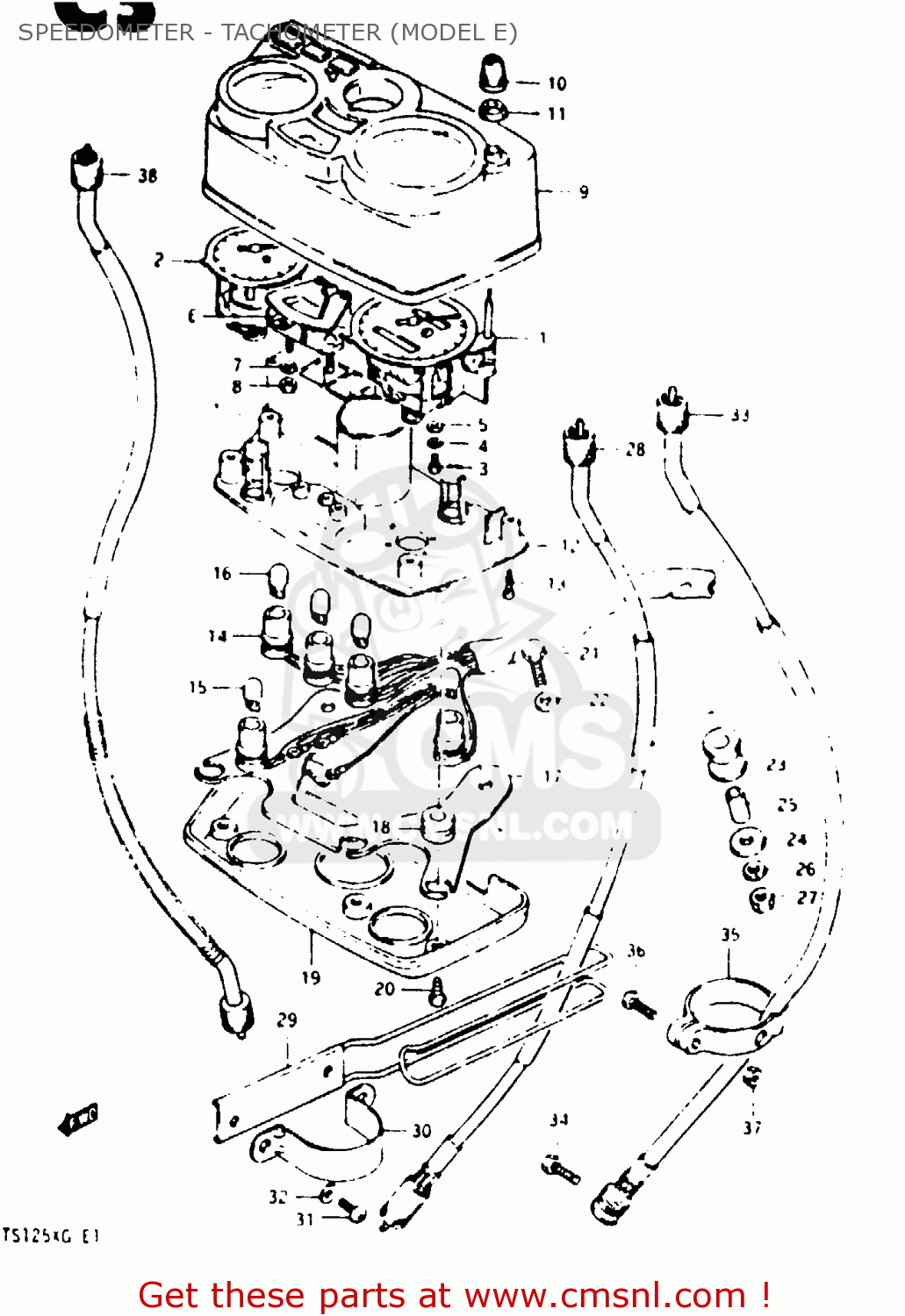

Speedometer - tachometer (model e) diagram TS125XU 1985 (F) UNITED KINGDOM (E02)

SPEEDOMETER - TACHOMETER (MODEL E) TS125XU 1985 (F) UNITED KINGDOM (E02)
SPEEDOMETER - TACHOMETER (MODEL E) TS125XU 1985 (F) UNITED KINGDOM (E02)
SPEEDOMETER - TACHOMETER (MODEL E) TS125XU 1985 (F) UNITED KINGDOM (E02)
prices are in EUR
ref
part #
description
quantity
1-1
NOTUSED
ref: 1-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-2
3412001A20
ref: 1-2
SPEEDOMETER (MILE/KILO)
€ 0.00
2
3422001A00
ref: 2
TACHOMETER
3422001A00
€ 79.50
3
0211203106
ref: 3
SCREW
€ 1.50
4
0832121036
ref: 4
LOCK WASHER
0832121036
€ 1.50
5
0832221036
ref: 5
WASHER 3.3X8X0
€ 1.50
6
3442001A00
ref: 6
GAUGE, WATER TEMPERATURE
3442001A00
€ 79.00
7
0832121046
ref: 7
LOCK WASHER
0832121046
€ 2.00
8
0831022046
ref: 8
NUT
€ 2.00
9
3415001A00
ref: 9
HOOD, METER
3415001A00
€ 81.50
10
3412449910
ref: 10
KNOB,TRIP METER
3412449910
€ 10.00
11
3499649910
ref: 11
SEAL,TRIP KNOB
3499649910
€ 4.00
12
3411101A00
ref: 12
CASE,METER
3411101A00
€ 58.00
13
3645601A00
ref: 13
SCREW
3645601A00
€ 2.00
14
3417001A00
ref: 14
SOCKET, METER
€ 46.00
15
0947112082
ref: 15
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
16
0947112077
ref: 16
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
17
3495001A00
ref: 17
BRACKET,METER
3495001A00
€ 31.00
18
3495528010
ref: 18
CUSHION
3495528010
€ 4.00
19
3419301A01
ref: 19
COVER, LOWER
€ 0.00
20
0311204125
ref: 20
SCREW
0311204125
€ 1.50
21
0110706305
ref: 21
BOLT
€ 2.50
22
3495615100
ref: 22
CUSHION
3495615100
€ 4.00
23
3495615100
ref: 23
CUSHION
3495615100
€ 4.00
24
0916006039
ref: 24
WASHER (6.5X18X1.6)
0916006039
€ 2.00
25
0918006040
ref: 25
SPACER (6.1X8X15.5)
0918006040
€ 2.00
26
0832121068
ref: 26
LOCK WASHER
0832121068
€ 2.50
27
0831011068
ref: 27
NUT
0831011068
€ 2.50
28
3491001A00
ref: 28
CABLE ASSEMBLY,SPEEDOMETER
3491001A00
€ 23.00
29
3493037411
ref: 29
GUIDE,CABLE
3493037411
€ 14.00
30
3499701A00
ref: 30
CLAMP, CABLE GUIDE
€ 3.50
31
0211206128
ref: 31
SCREW 6X12
0211206128
€ 2.00
32
0832121068
ref: 32
LOCK WASHER
0832121068
€ 2.50
33
NOTUSED
ref: 33
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
34
NOTUSED
ref: 34
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
35
NOTUSED
ref: 35
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
36
NOTUSED
ref: 36
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
37
NOTUSED
ref: 37
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
38
3494001A00
ref: 38
CABLE ASSY,TACHOMETER
3494001A00
€ 23.50
