Buy Suzuki TS Parts Online


STEERING STEM (MODEL F/G)

TS125XU 1985 (F) UNITED KINGDOM (E02)

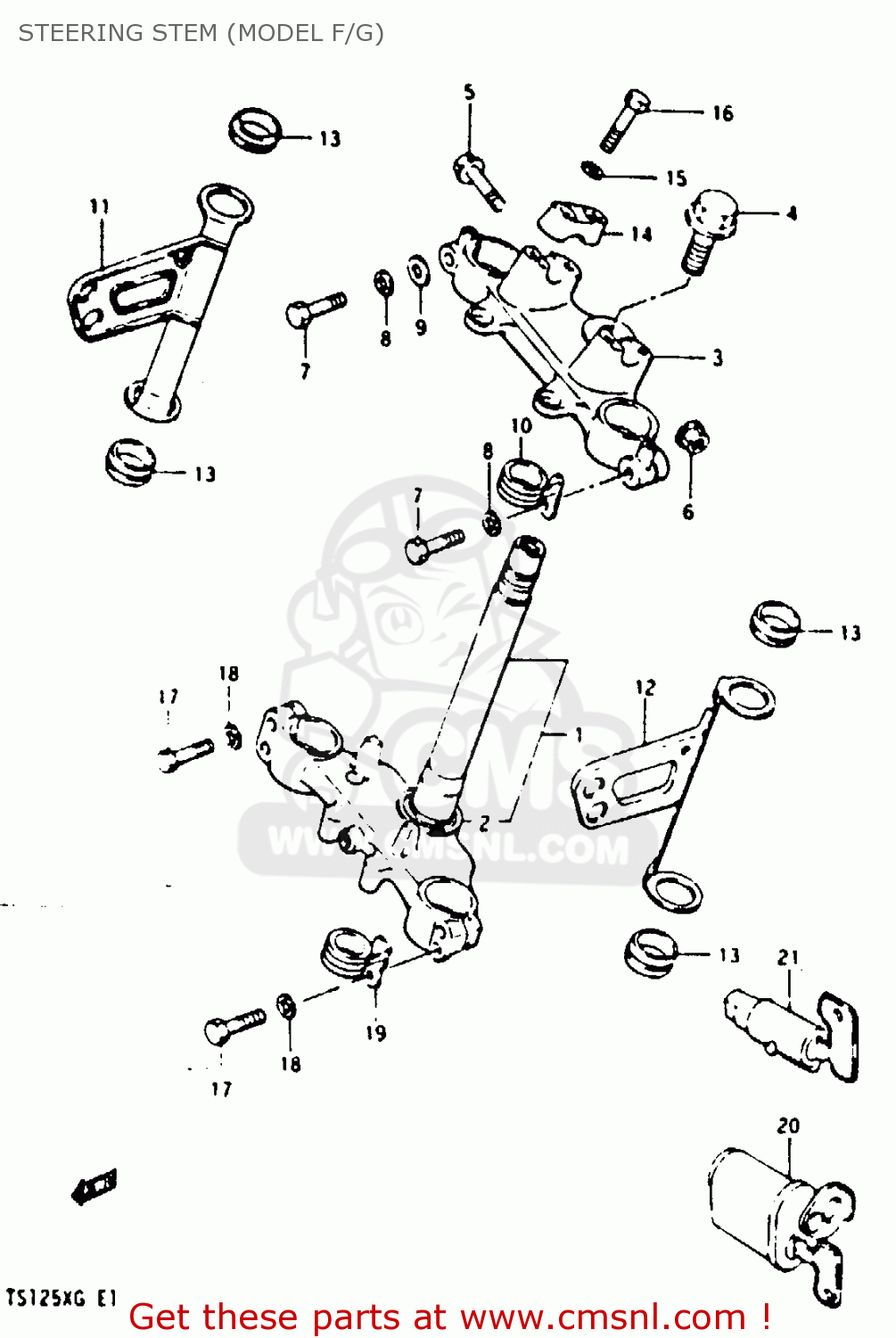

Steering stem (model f/g) diagram TS125XU 1985 (F) UNITED KINGDOM (E02)

STEERING STEM (MODEL F/G) TS125XU 1985 (F) UNITED KINGDOM (E02)
STEERING STEM (MODEL F/G) TS125XU 1985 (F) UNITED KINGDOM (E02)
STEERING STEM (MODEL F/G) TS125XU 1985 (F) UNITED KINGDOM (E02)
prices are in EUR
ref
part #
description
quantity
1
5141001A21
ref: 1
STEM, STEERING (PEARL)
€ 251.00
2
0926530005
ref: 2
BEARING
0926530005
€ 49.50
3
5131101A00
ref: 3
HEAD, STEERING STEM
€ 139.00
4
5135201A30
ref: 4
BOLT
€ 6.00
5
0151708508
ref: 5
BOLT
0151708508
€ 3.50
6
0831616088
ref: 6
NUT
0831616088
€ 2.50
7
5145101A30
ref: 7
BOLT,FORK INNER TUBE FITTING
€ 0.00
8
0832121108
ref: 8
LOCK WASHER
0832121108
€ 2.00
9
0832211108
ref: 9
WASHER
€ 2.50
10
5145501A00
ref: 10
CLIP
5145501A00
€ 10.50
11
5153001A00
ref: 11
BRACKET, HEADLAMP RH
5153001A00
€ 44.50
12
5154001A00
ref: 12
BRACKET, HEADLAMP LH
5154001A00
€ 19.00
13
5155334280
ref: 13
CUSHION,HEADLAMP HSG BRACKET
5155334280
€ 3.50
14
5621127100
ref: 14
HOLDER,HANDLEBAR
5621127100
€ 12.50
15
0832121088
ref: 15
LOCK WASHER
0832121088
€ 2.00
16
0110708358
ref: 16
BOLT
0110708358
€ 3.50
17
0110708408
ref: 17
BOLT 8X40
0110708408
€ 3.00
18
0832121088
ref: 18
LOCK WASHER
0832121088
€ 2.00
19
5145201A00
ref: 19
CLIP
5145201A00
€ 9.50
20
NOTUSED
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21
NOTUSED
ref: 21
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
