GEAR SHIFTING
TS125XU 1985 (F) UNITED KINGDOM (E02)

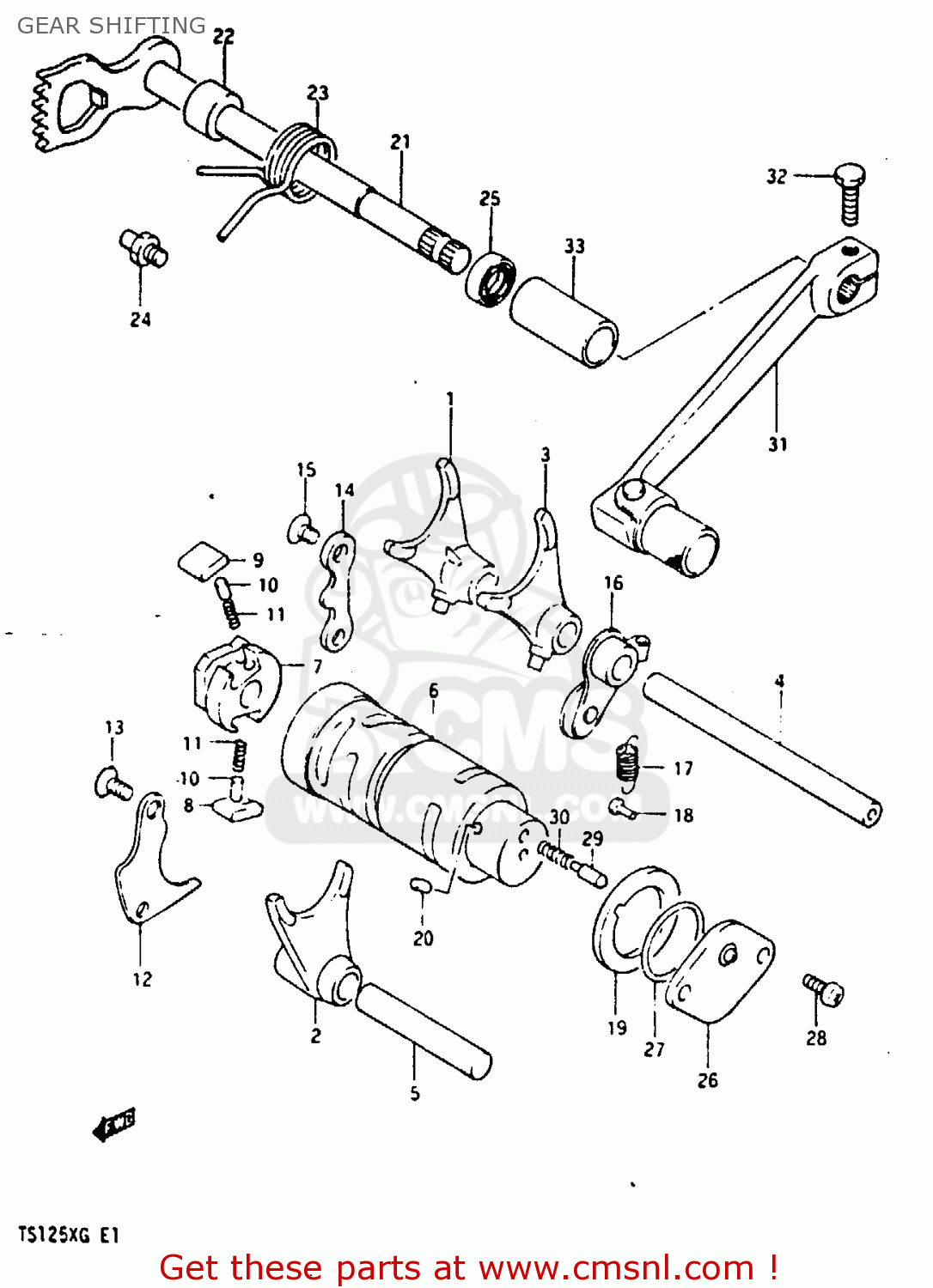

Gear shifting diagram TS125XU 1985 (F) UNITED KINGDOM (E02)
GEAR SHIFTING TS125XU 1985 (F) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1
2521141300
ref: 1
FORK,GEAR SHIFT NO.1
€ 71.50
2
2522141301
ref: 2
FORK,GEAR SHIFT NO.2
€ 71.50
3
2523101A00
ref: 3
FORK, NO.3
€ 54.00
4
2541116701
ref: 4
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
5
2542135401
ref: 5
SHAFT,GEAR SHIFT FORK
€ 19.00
6
2531001A00
ref: 6
CAM
€ 102.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334200
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434200
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533111001
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 2.50
13
0212206128
ref: 13
SCREW
€ 3.00
14
2534140001
ref: 14
STOPPER,GEAR SHIFT POLE
€ 6.50
15
0212206108
ref: 15
SCREW
€ 1.50
16
2535001A00
ref: 16
STOPPER, CAM
€ 10.00
17
0944309007
ref: 17
SPRING
€ 14.50
18
0922004001
ref: 18
INC 11305-01890
RIVET
€ 1.50
19
2538104700
ref: 19
PLATE,GEAR SHIFT CAM STOPPER
€ 13.00
20
0621104063
ref: 20
PIN 4X6
€ 2.00
21
2551001A01
ref: 21
FROM 25510-01A00
SHAFT, GEAR SHIFTING
€ 44.50
22
0918012083
ref: 22
SPACER(12X20X15.3)
€ 2.50
23
0944426001
ref: 23
SPRING
€ 4.00
24
2567101000
ref: 24
STOPPER,GEAR SHIFT CAM
€ 3.00
25
0928512002
ref: 25
OIL SEAL
€ 7.00
26
3772029350
ref: 26
BODY,GEAR SHIFT SWITCH
€ 10.50
27
0928026003
ref: 27
O-RING (D:2.4 ID:26.2)
€ 2.50
28
0211205125
ref: 28
SCREW
€ 1.50
29
0920905011
ref: 29
PIN(5X15.5)
€ 2.00
30
0944004010
ref: 30
SPRING
€ 1.50
31
2560001A01
ref: 31
LEVER ASSY,GEAR SHIFT
€ 41.50
32
0910006100
ref: 32
BOLT
€ 2.00
33
0932013004
ref: 33
CUSHION
€ 4.50
