CRANKCASE
TS250 1971 1972 (R) (J) USA (E03)

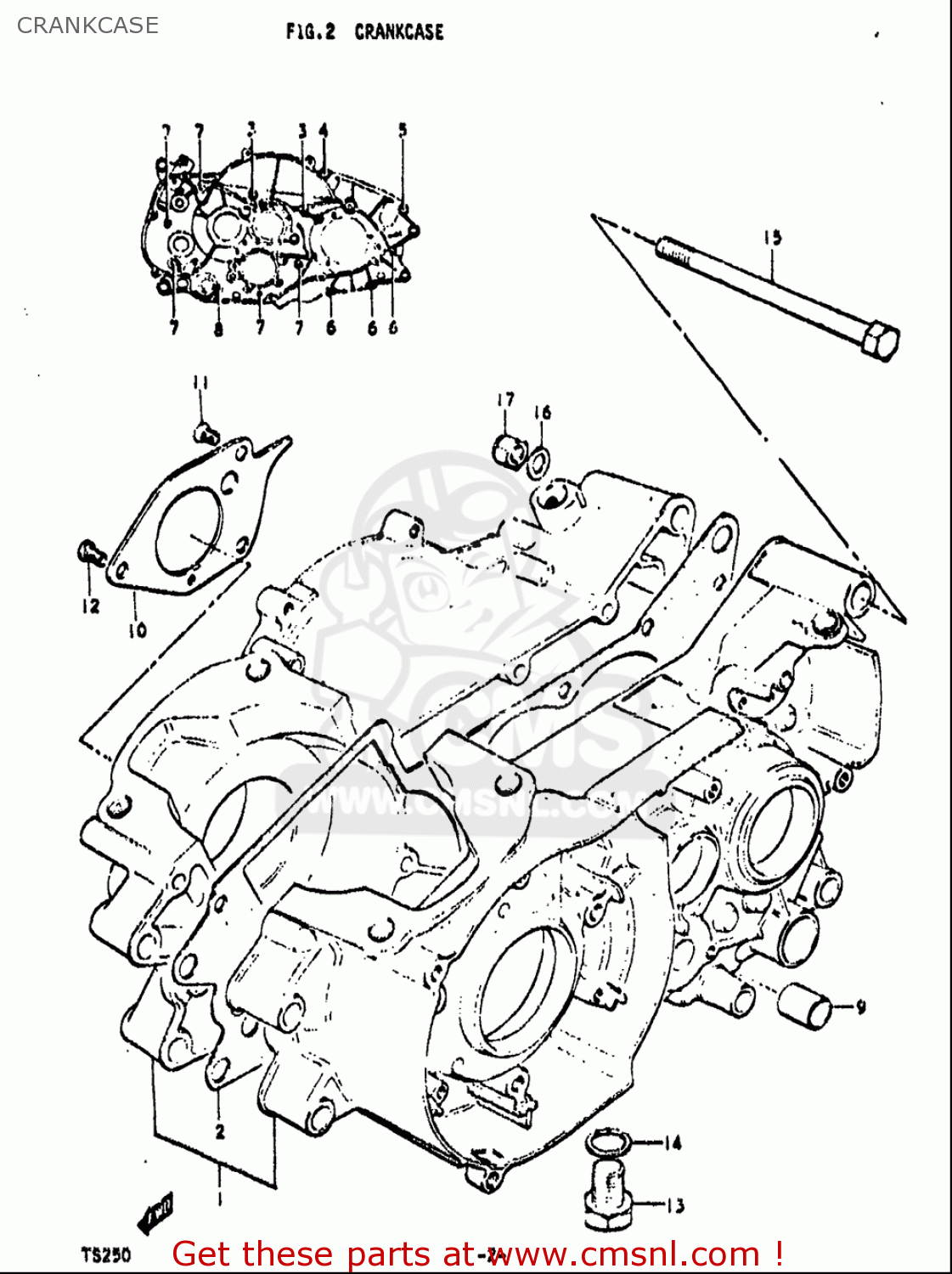

Crankcase diagram TS250 1971 1972 (R) (J) USA (E03)
CRANKCASE TS250 1971 1972 (R) (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
1148130001
ref: 2
GASKET,CRANKCASE (NAS)
€ 16.50
3
0212206758
ref: 3
SCREW
€ 2.50
4
0211206707
ref: 4
SCREW
€ 3.00
5
0211206657
ref: 5
SCREW
€ 2.00
6
0211206507
ref: 6
SCREW
€ 2.50
7
0211206457
ref: 7
SCREW
€ 2.00
8
0211206357
ref: 8
SCREW
€ 2.50
9
0421113189
ref: 9
PIN
€ 2.50
10
1252130001
ref: 10
PLATE,OIL RESERVOIR
€ 4.50
11
0212206167
ref: 11
SCREW
€ 2.00
12
0211206167
ref: 12
SCREW
€ 2.50
13
0924714025
ref: 13
PLUG
€ 3.50
14
0916814004
ref: 14
GASKET(14X19.2X2) (NAS)
€ 2.50
15
0911610032
ref: 15
BOLT(10X120)
€ 3.50
16
0832201107
ref: 16
WASHER
€ 2.50
