KICK STARTER

TS250 1971 1972 (R) (J) USA (E03)

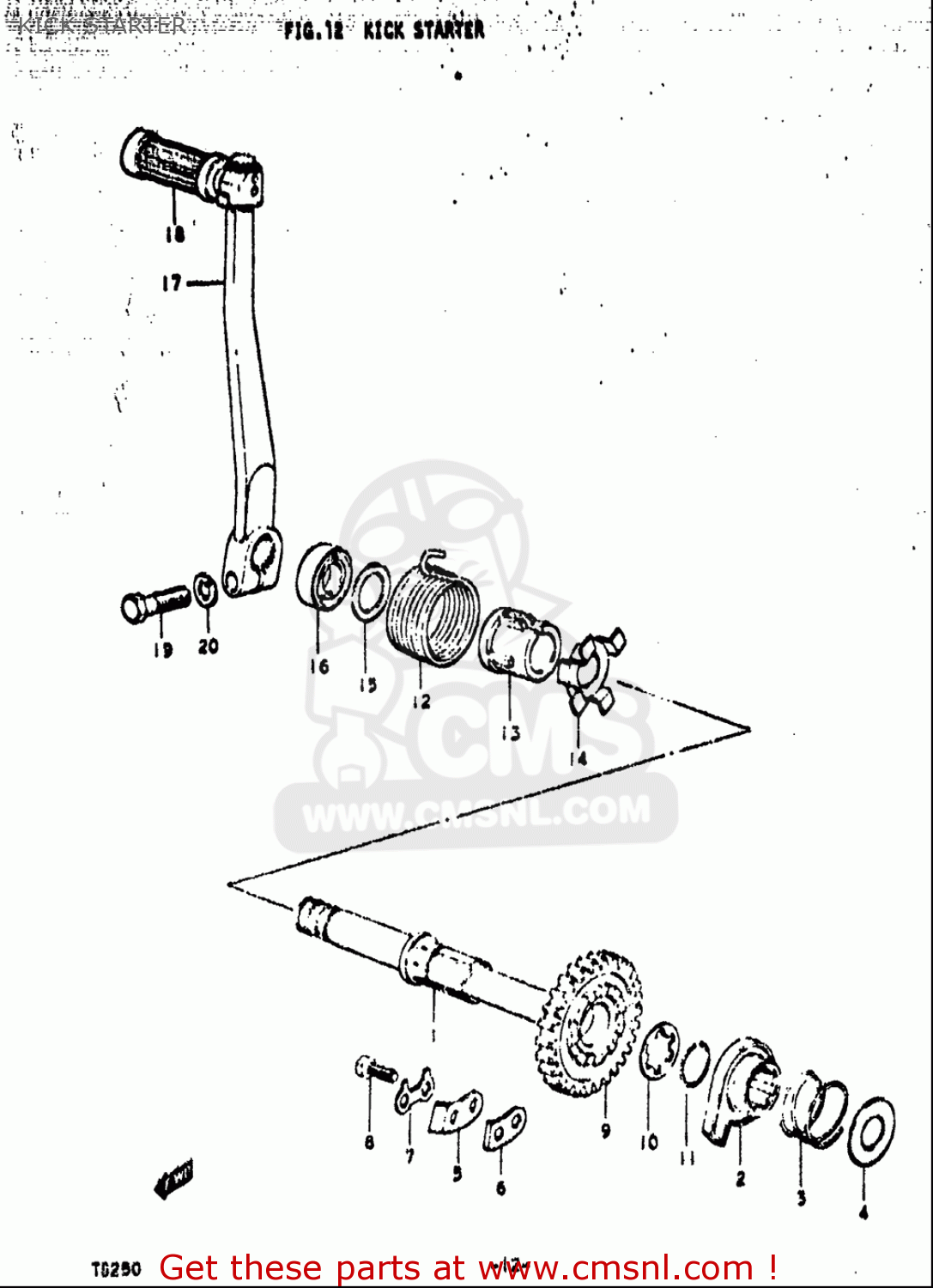

Kick starter diagram TS250 1971 1972 (R) (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2623122A10
ref: 2

STARTER,KICK

€ 47.50

0944032002
ref: 3

SPRING

€ 2.00

0821117342
ref: 4

WASHER

€ 3.00

2623230000
ref: 5

GUIDE,KICK STARTER

€ 6.00

0916906003
ref: 7

WASHER

€ 1.50

0150006167
ref: 8

BOLT

€ 3.00

0916722007
ref: 10

WASHER,LOCK

€ 3.50

0938022003
ref: 11

CIRCLIP

€ 13.50

0944847002
ref: 12

SPRING

€ 3.50

2622230000
ref: 14

HOLDER,KICK SHAFT SPRING

€ 2.50

0821220361
ref: 15

WASHER

€ 1.50

0928320025
ref: 16

SEAL,OIL(20X37X7)

€ 6.50

2635216401
ref: 18

RUBBER,KICK STARTER PEDAL

€ 4.00

0150010303
ref: 19

BOLT

€ 3.00

0832101107
ref: 20

WASHER,LOCK

€ 2.00
