MUFFLER
TS250 1971 1972 (R) (J) USA (E03)

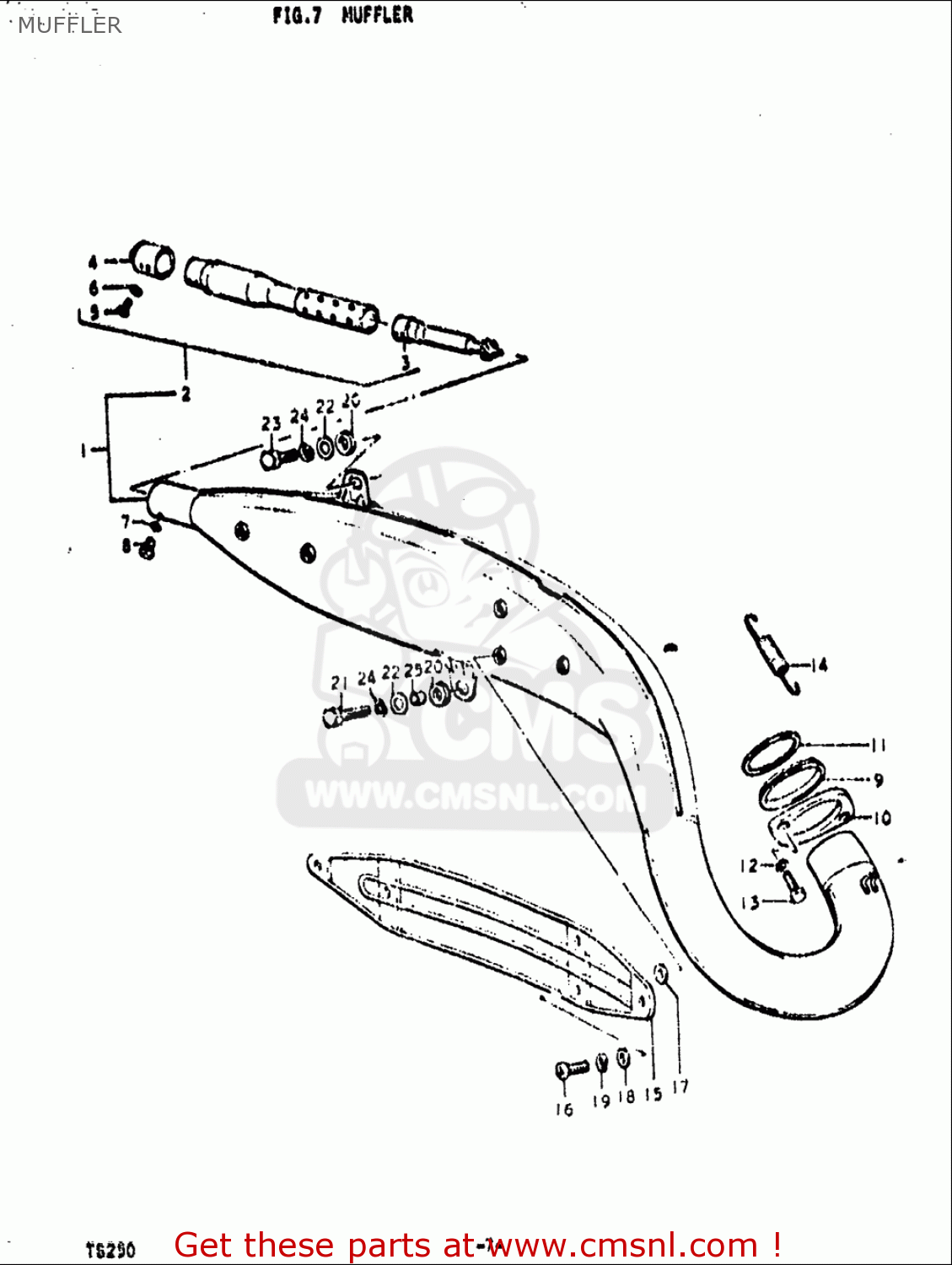

Muffler diagram TS250 1971 1972 (R) (J) USA (E03)
MUFFLER TS250 1971 1972 (R) (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3
1485030601
ref: 3
TUBE,MUFFLER CLEAN OUT
€ 26.00
4
1481716401
ref: 4
CUTTER,SPARK ARRESTER
€ 10.50
5
0211206087
ref: 5
SCREW
€ 2.00
6
0832101067
ref: 6
WASHER,LOCK
€ 2.50
7
0916806105
ref: 7
GASKET(6.2X12X1.5) (NAS)
€ 2.00
8
0211206167
ref: 8
SCREW
€ 2.50
9
1418130080
ref: 9
GASKET,EXHAUST PIPE (NAS)
€ 11.50
10
1418230000
ref: 10
CLAMP,EXHAUST PIPE
€ 36.50
11
1418430020
ref: 11
WASHER,EXHAUST PIPE
€ 5.50
12
0832101067
ref: 12
WASHER,LOCK
€ 2.50
13
0150006257
ref: 13
BOLT
€ 2.00
14
0944311002
ref: 14
SPRING
€ 4.50
16
0211206127
ref: 16
SCREW
€ 2.00
17
0916806105
ref: 17
GASKET(6.2X12X1.5) (NAS)
€ 2.00
18
0832201067
ref: 18
WASHER
€ 2.00
19
0832101067
ref: 19
WASHER,LOCK
€ 2.50
21
0150008353
ref: 21
BOLT
€ 3.50
22
0832201087
ref: 22
WASHER
€ 2.00
23
0150008163
ref: 23
BOLT
€ 2.00
24
0832101087
ref: 24
WASHER,LOCK
€ 2.00
25
0918008143
ref: 25
SPACER(8.2X12X17)
€ 5.00
