FRAME

TS250 1971 1972 (R) (J) USA (E03)

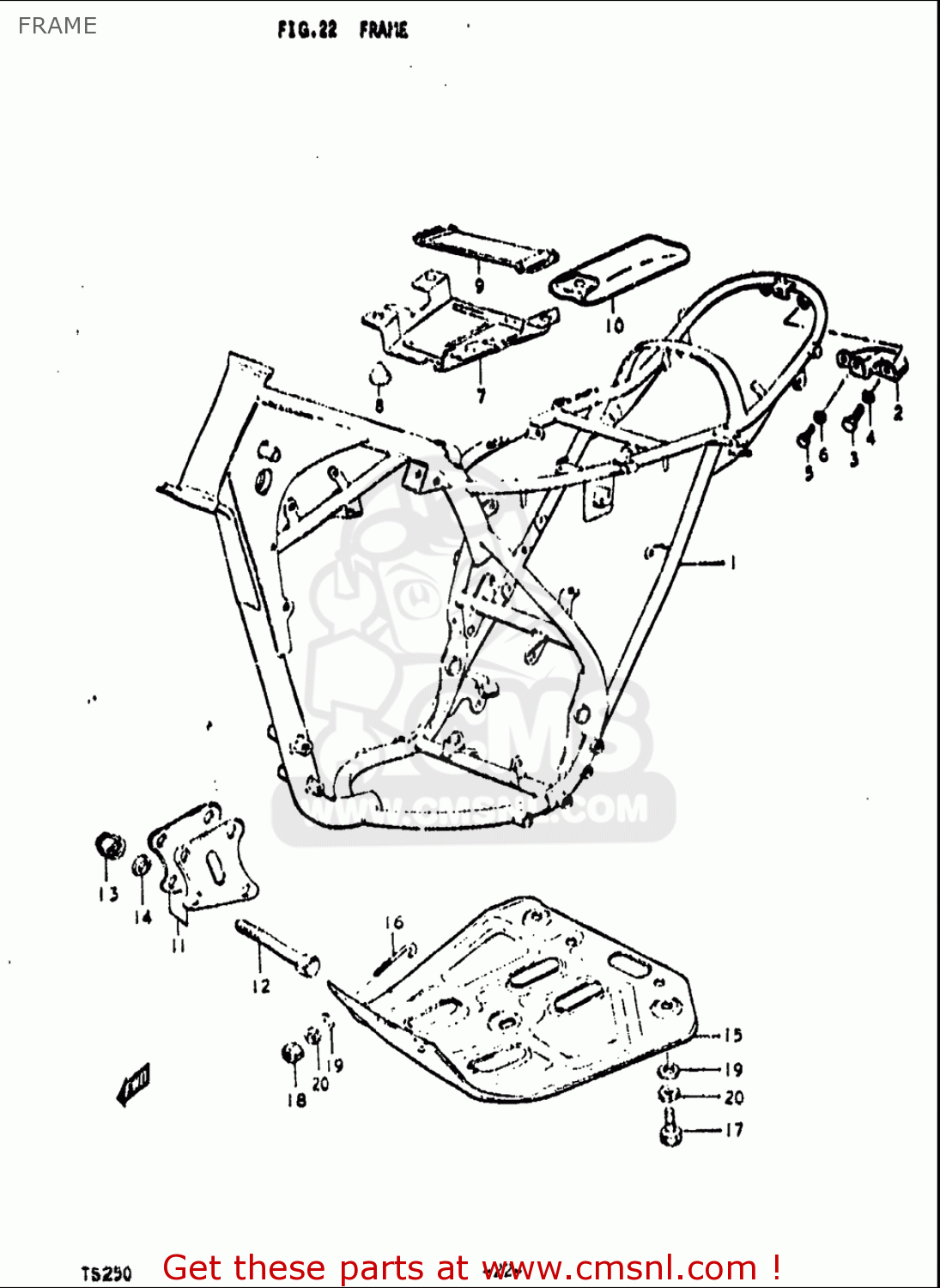

Frame diagram TS250 1971 1972 (R) (J) USA (E03)

FRAME TS250 1971 1972 (R) (J) USA (E03)

FRAME TS250 1971 1972 (R) (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

0150008163
ref: 3

BOLT

€ 2.00

4

0832101087
ref: 4

WASHER,LOCK

€ 2.00

5

0150006127
ref: 5

BOLT

€ 2.00

6

0832101067
ref: 6

WASHER,LOCK

€ 2.50

8

0932106011
ref: 8

CUSHION

€ 2.00

9

0946200048
ref: 9

BAND

€ 10.50

10

0980021028
ref: 10

TOOL ASSY

€ 43.50

12

0150008753
ref: 12

BOLT

€ 3.00

13

0915908020
ref: 13

NUT

€ 2.50

14

0832201087
ref: 14

WASHER

€ 2.00

17

0150006127
ref: 17

BOLT

€ 2.00

18

0831000067
ref: 18

NUT

€ 2.50

19

0832201067
ref: 19

WASHER

€ 2.00

20

0832101067
ref: 20

WASHER,LOCK

€ 2.50
