REAR FENDER
TS250 1971 1972 (R) (J) USA (E03)

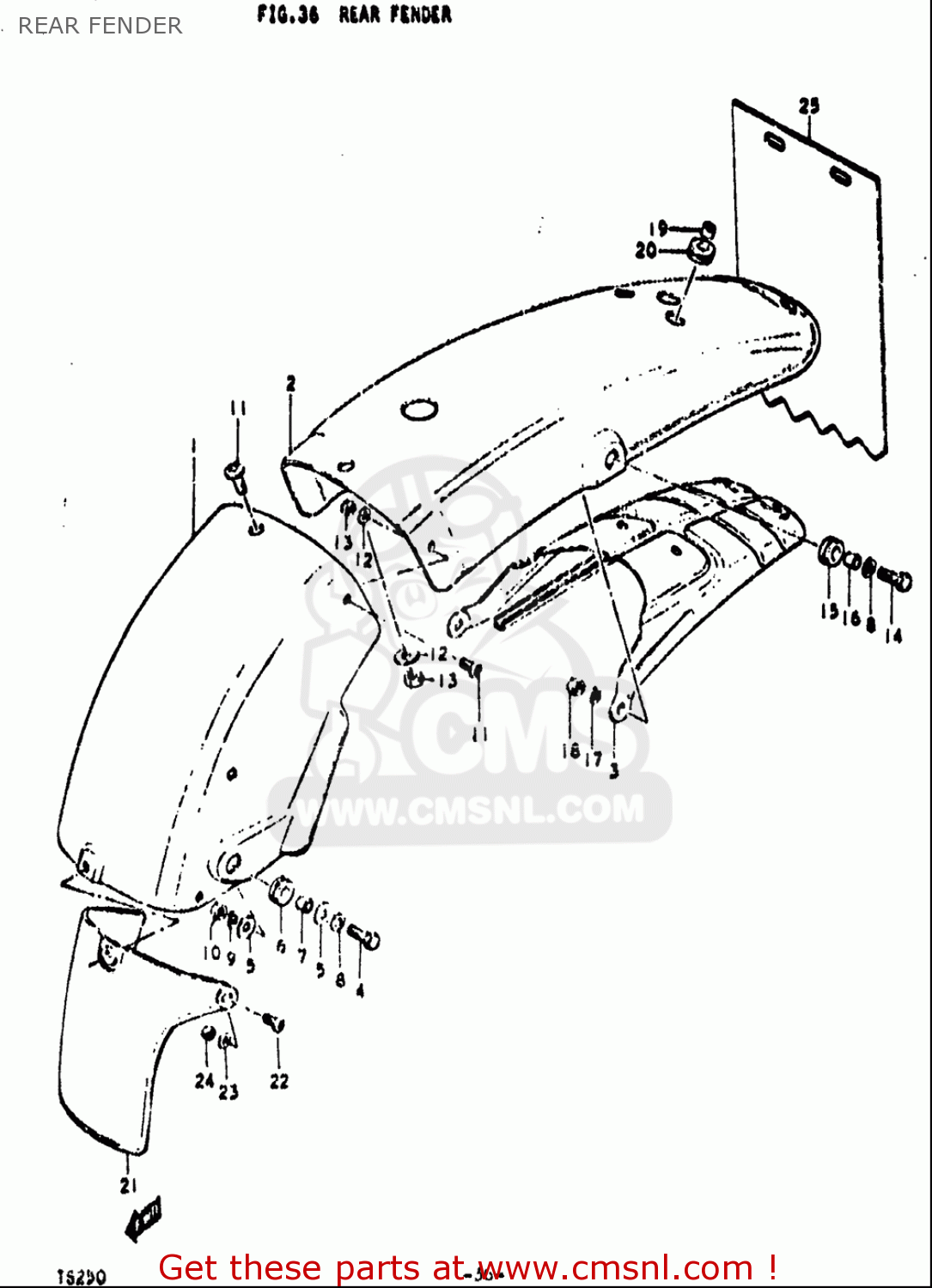

Rear fender diagram TS250 1971 1972 (R) (J) USA (E03)
REAR FENDER TS250 1971 1972 (R) (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
4
0150006207
ref: 4
BOLT
€ 2.00
5
0916006077
ref: 5
WASHER(6.5X20X1.2)
€ 2.00
6
0932008021
ref: 6
CUSHION
€ 4.00
7
0918006038
ref: 7
SPACER(6.1X9X7.5)
€ 2.00
8
0832201067
ref: 8
WASHER
€ 2.00
9
0832101067
ref: 9
WASHER,LOCK
€ 2.50
10
0831000067
ref: 10
NUT
€ 2.50
11
0214205107
ref: 11
SCREW
€ 2.50
12
0832201057
ref: 12
WASHER
€ 2.50
13
0831000057
ref: 13
NUT
€ 2.50
14
0150006207
ref: 14
BOLT
€ 2.00
15
0932008021
ref: 15
CUSHION
€ 4.00
16
0918006038
ref: 16
SPACER(6.1X9X7.5)
€ 2.00
17
0832101067
ref: 17
WASHER,LOCK
€ 2.50
18
0831000067
ref: 18
NUT
€ 2.50
19
0918006038
ref: 19
SPACER(6.1X9X7.5)
€ 2.00
20
0932008021
ref: 20
CUSHION
€ 4.00
22
0214205107
ref: 22
SCREW
€ 2.50
23
0832201057
ref: 23
WASHER
€ 2.50
24
0831000057
ref: 24
NUT
€ 2.50
