FRONT FENDER
TS250 1971 1972 (R) (J) USA (E03)

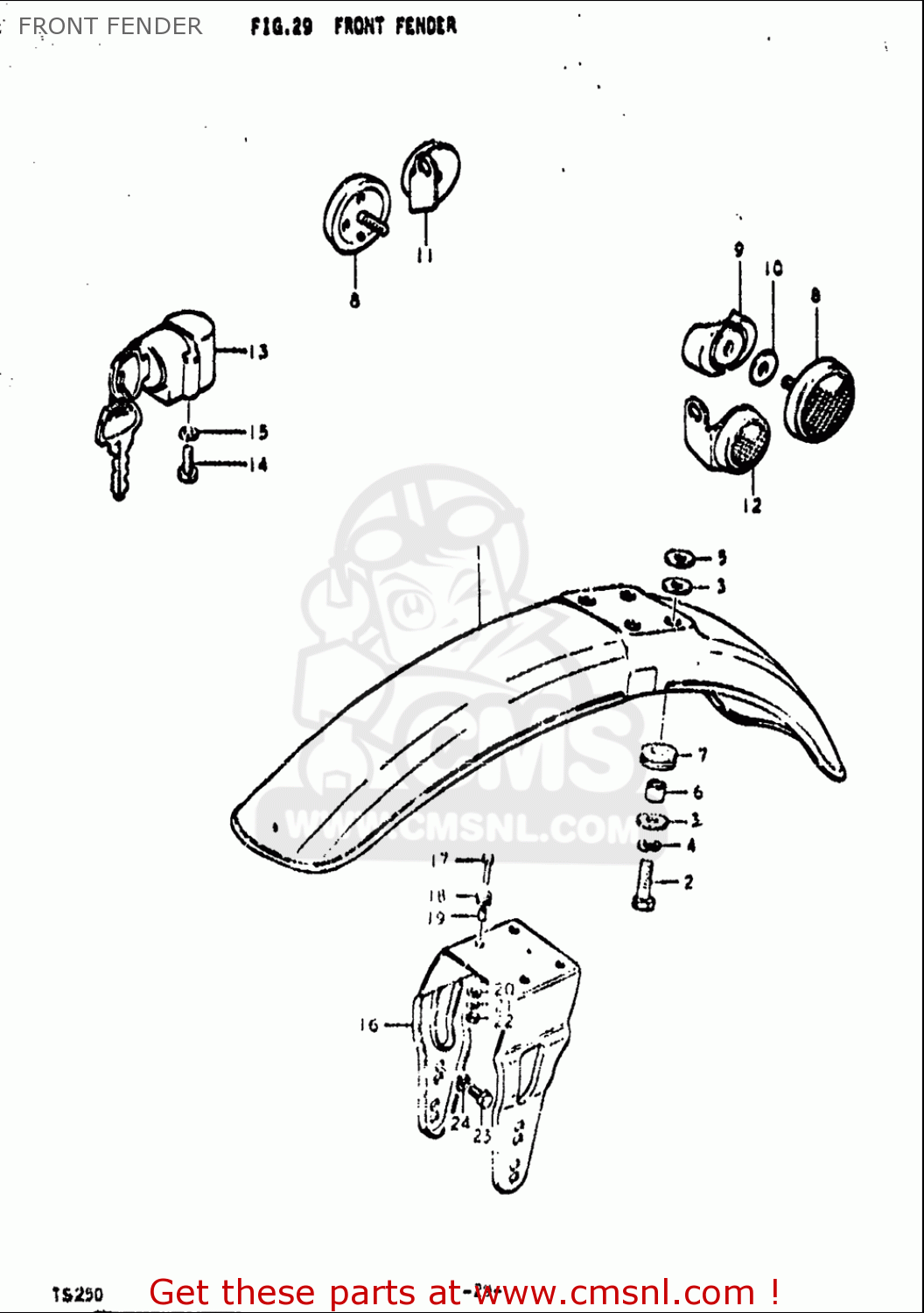

Front fender diagram TS250 1971 1972 (R) (J) USA (E03)
FRONT FENDER TS250 1971 1972 (R) (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0150006403
ref: 2
BOLT
€ 2.00
3
0916006114
ref: 3
WASHER(6.5X24X1.2)
€ 2.00
4
0832101067
ref: 4
WASHER,LOCK
€ 2.50
5
0918006041
ref: 5
SPACER (6.5X20X5)
€ 2.50
6
0918006292
ref: 6
SPACER(6.5X10X13.5)
€ 3.50
7
0932010003
ref: 7
CUSHION
€ 2.50
8
3595049080
ref: 8
REFLEX REFLECTOR,RR
€ 17.50
9
3599529000
ref: 9
SPACER
€ 14.00
10
0916006077
ref: 10
WASHER(6.5X20X1.2)
€ 2.00
13-1
5190030831
ref: 13-1
LOCK ASSY,STEERING
€ 30.00
13-2
5190030831
ref: 13-2
LOCK ASSY,STEERING
€ 30.00
14
0211205127
ref: 14
SCREW
€ 2.50
15
0832101057
ref: 15
WASHER,LOCK
€ 2.00
17
0150006207
ref: 17
BOLT
€ 2.00
18
0932008021
ref: 18
CUSHION
€ 4.00
19
0918006038
ref: 19
SPACER(6.1X9X7.5)
€ 2.00
20
0916006077
ref: 20
WASHER(6.5X20X1.2)
€ 2.00
22
0831000067
ref: 22
NUT
€ 2.50
23
0150008127
ref: 23
BOLT
€ 2.50
24
0832101087
ref: 24
WASHER,LOCK
€ 2.00
