IGNITION SWITCH - BATTERY

TS250 1971 1972 (R) (J) USA (E03)

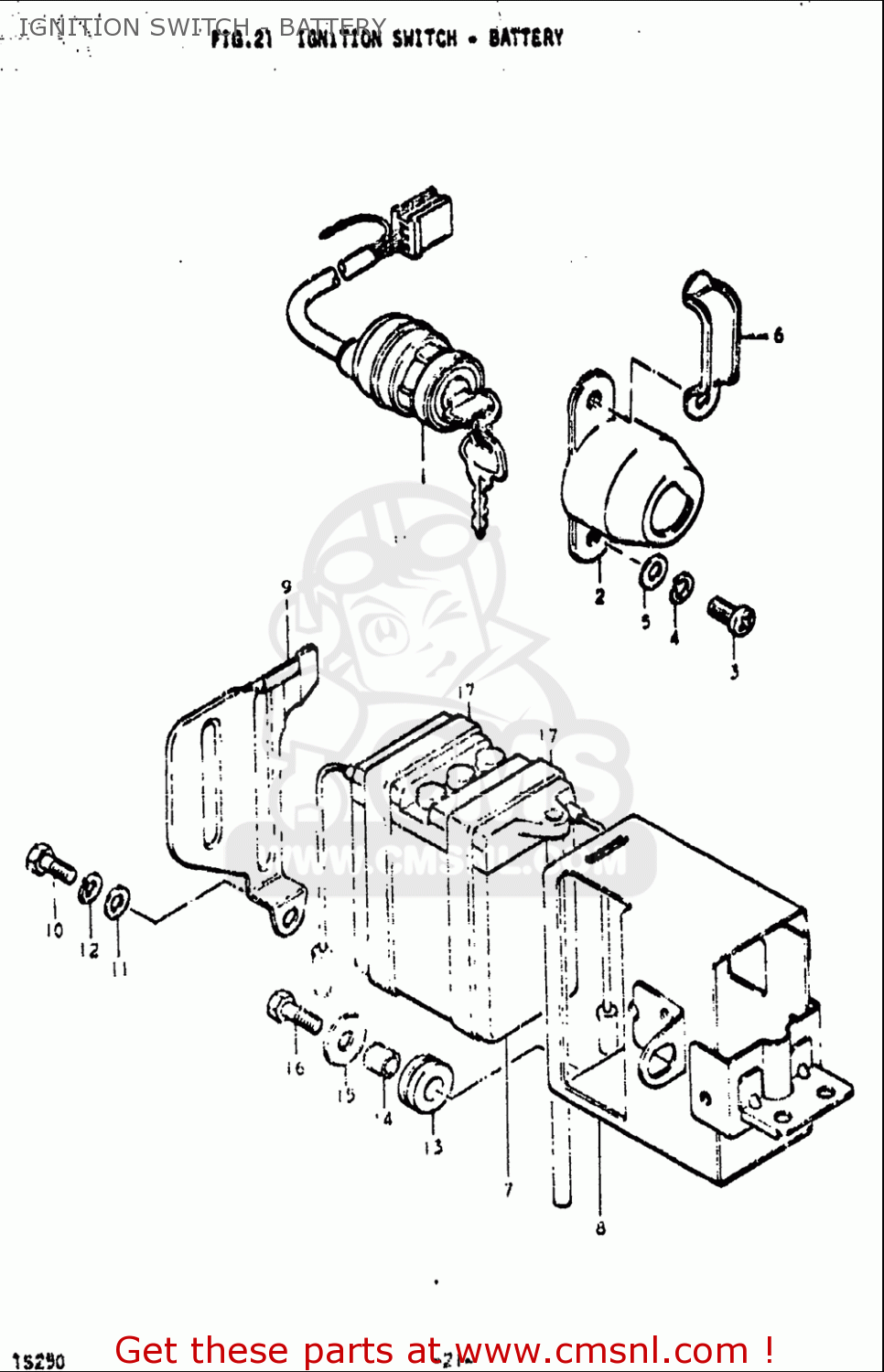

Ignition switch - battery diagram TS250 1971 1972 (R) (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

0211206127
ref: 3

SCREW

€ 2.00

0832101067
ref: 4

WASHER,LOCK

€ 2.50

0832201067
ref: 5

WASHER

€ 2.00

0940309307
ref: 6

CLAMP

€ 2.50

3361004021
ref: 7

BATTERY ASSEMBLY (6V)

€ 21.50

0912806044
ref: 10

SCREW(6X10)

€ 1.50

0832201067
ref: 11

WASHER

€ 2.00

0832101067
ref: 12

WASHER,LOCK

€ 2.50

0932008021
ref: 13

CUSHION

€ 4.00

SPACER,6.5X9X7

€ 0.00

0916006077
ref: 15

WASHER(6.5X20X1.2)

€ 2.00

021620616C
ref: 16

SCREW

€ 2.50

3365130000
ref: 17

PROTECTOR,BATTERY

€ 9.00

all assemblies
