SPEEDOMETER - TACHOMETER

TS250 1971 1972 (R) (J) USA (E03)

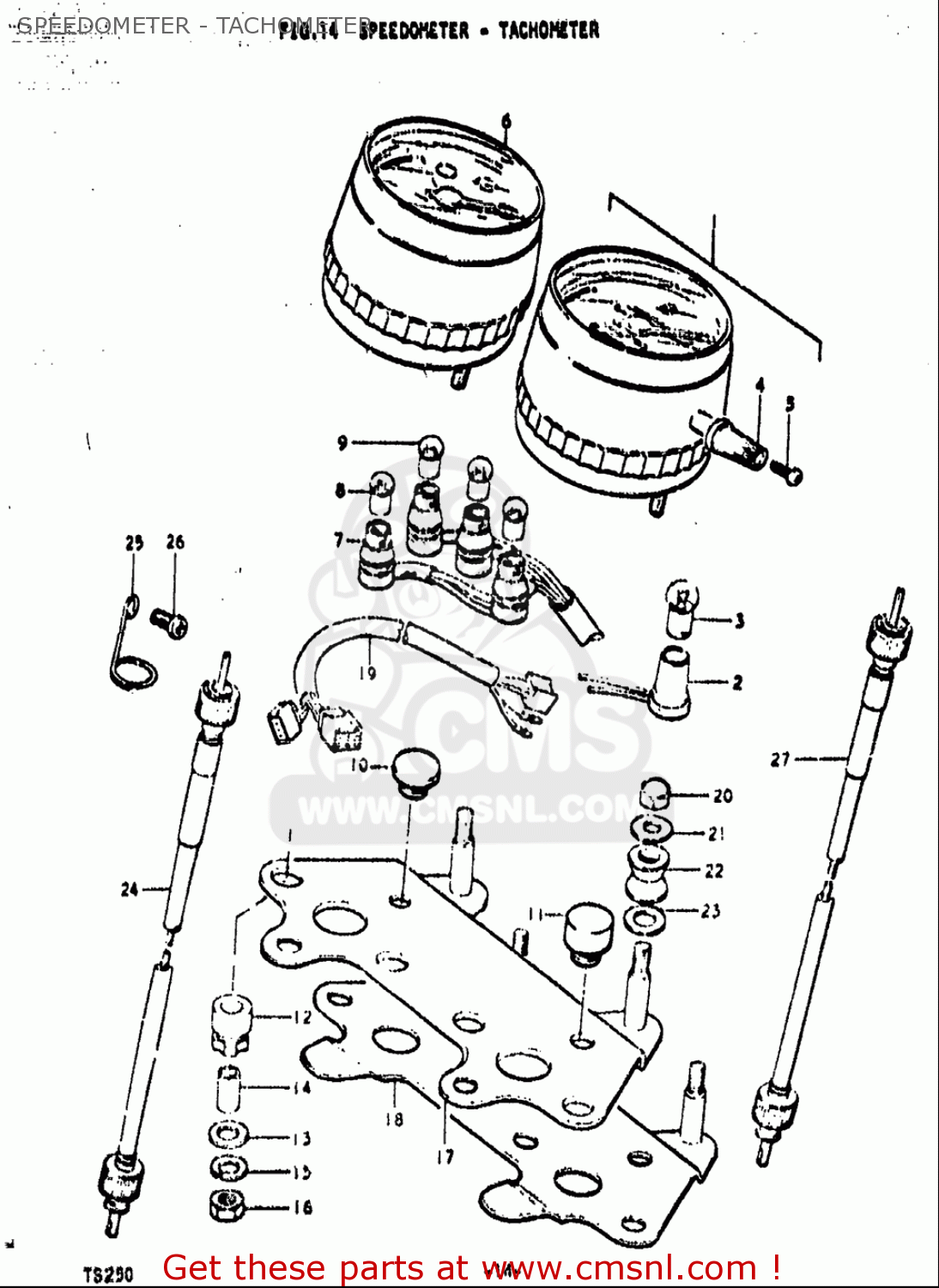

Speedometer - tachometer diagram TS250 1971 1972 (R) (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3417318620
ref: 2

SOCKET,METER

€ 0.00

0947106002
ref: 3

BULB(6V/3W)

€ 2.50

0913902003
ref: 5

SCREW(2X6)

€ 2.00

0947106002
ref: 8

BULB(6V/3W)

€ 2.50

0947106001
ref: 9

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

3495516420
ref: 10

CUSHION,METER NO.1

€ 4.00

0916006084
ref: 13

WASHER(6.5X18X1.6)

€ 2.00

0832101067
ref: 15

WASHER,LOCK

€ 2.50

0831000067
ref: 16

NUT

€ 2.50

0831310067
ref: 20

NUT

€ 2.00

0916006084
ref: 21

WASHER(6.5X18X1.6)

€ 2.00

3495615100
ref: 22

CUSHION

€ 4.00

0832201087
ref: 23

WASHER

€ 2.00

3494029902
ref: 24

CABLE ASSY,TACHOMETER

€ 39.00

3494930002
ref: 25

CLIP

€ 15.50

0211206107
ref: 26

SCREW

€ 1.50

3491018990
ref: 27

CABLE ASSY,SPEEDOMETER

€ 29.00

SPEEDOMETER - TACHOMETER

all assemblies
