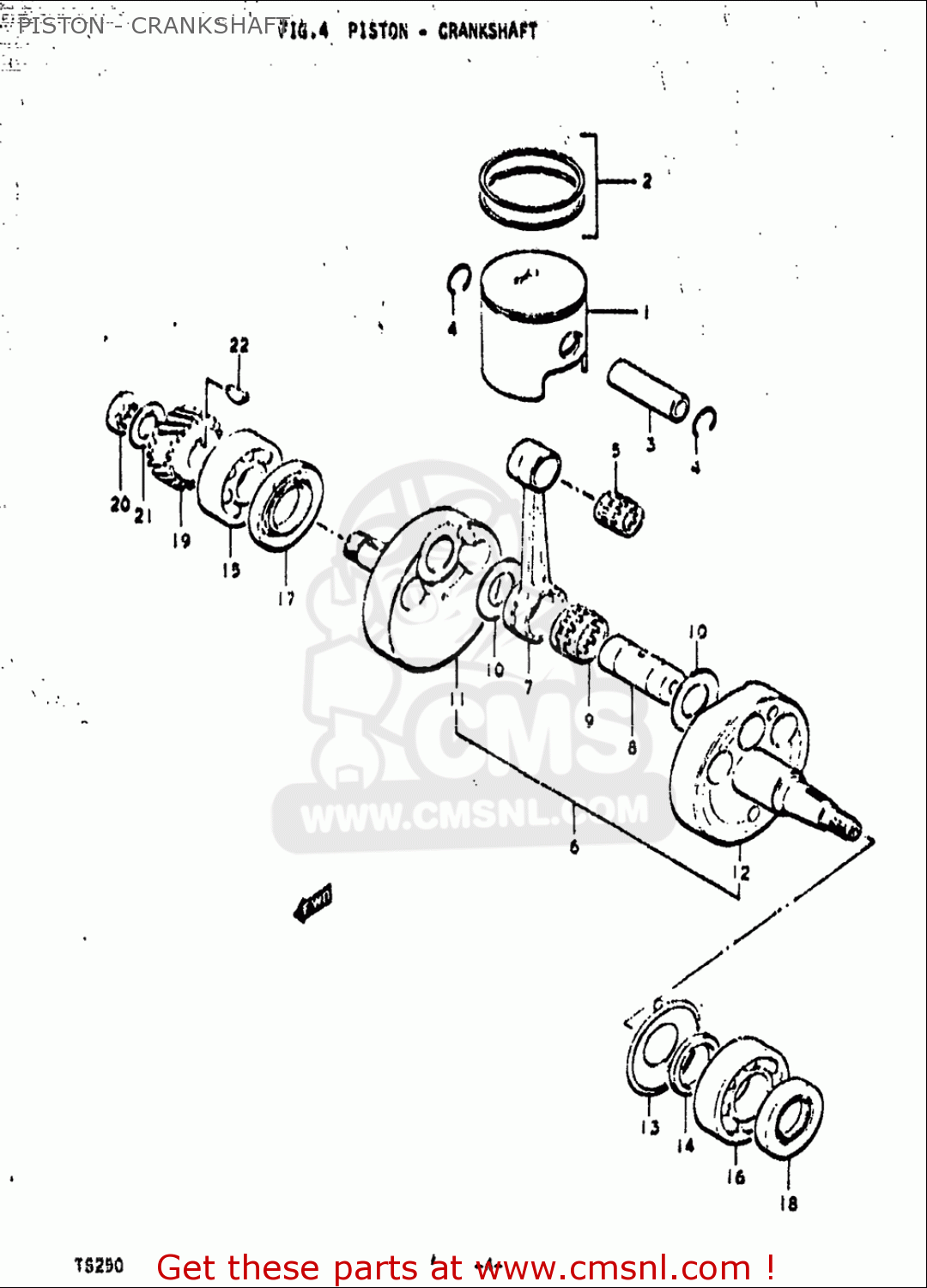

PISTON - CRANKSHAFT - TS250 1971 1972 (R) (J) USA (E03)

ref

part #

description

quantity

1-1

1211030001
ref: 1-1

PISTON

€ 91.50

1-2

1211030001
ref: 1-2

PISTON

€ 91.50

1-3

1210330810050
ref: 1-3

PISTON SET(OS:0.5)

€ 136.50

1-4

1210330810050
ref: 1-4

PISTON SET(OS:0.5)

€ 136.50

1-5

1210330850100
ref: 1-5

PISTON SET(OS:1.0)

€ 124.00

2-1

1214030010
ref: 2-1

RING SET,PISTON

€ 70.00

2-2

1214030010050
ref: 2-2

RING SET,PISTON(OS:0.50)

€ 59.00

3-1

1215113A000A0
ref: 3-1

PIN,PISTON (18MM)

€ 14.50

3-2

1215113A000A0
ref: 3-2

PIN,PISTON (18MM)

€ 14.50

4

0938118002A
ref: 4

CIRCLIP,PISTON PIN

€ 1.50

5

0926318021
ref: 5

BEARING(18X23X24)

€ 22.50

7

1216116400
ref: 7

ROD,CONNECTING

€ 107.50

8

1221116400
ref: 8

PIN,CRANK

€ 56.50

9

0926325008
ref: 9

BEARING(25X31X20)

€ 17.00

10

0916025024
ref: 10

WASHER(25X40X1)

€ 7.00

15

0926225073
ref: 15

BEARING(25X62X17)

€ 21.50

16

0926430006
ref: 16

ROLLER BEARING (30X72X3

€ 241.00

17

0928335004
ref: 17

SEAL,OIL(35X62X9)

€ 19.50

18

0928330064
ref: 18

OIL SEAL (30X55X10)

€ 32.50

20

0914018002
ref: 20

NUT

€ 3.50

21

0916618001
ref: 21

WASHER

€ 3.00

22

0834131059
ref: 22

KEY

€ 3.00

PISTON - CRANKSHAFT

all assemblies
