REAR COMBINATION LAMP (TS250R)

TS250 1971 1972 (R) (J) USA (E03)

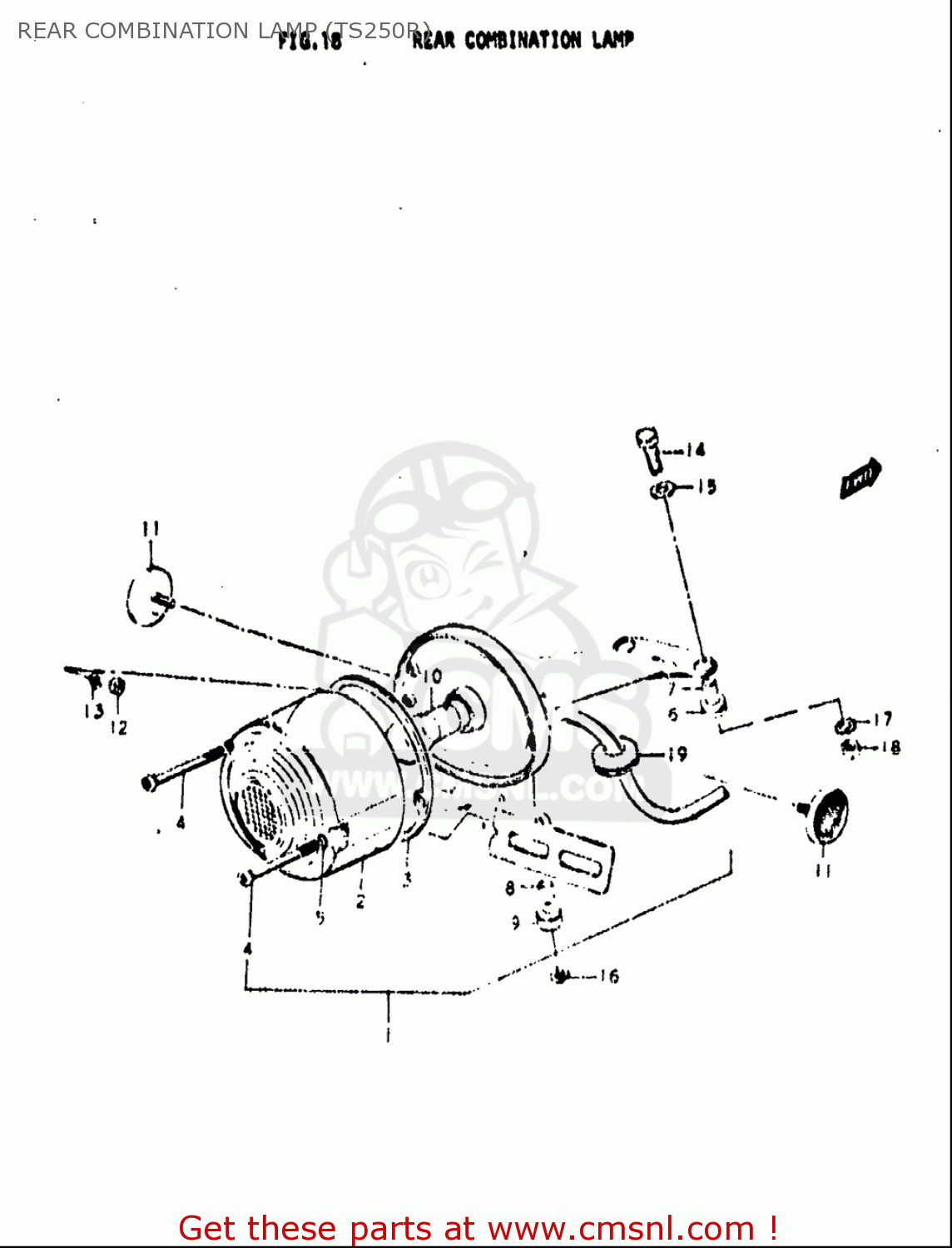

Rear combination lamp (ts250r) diagram TS250 1971 1972 (R) (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3576515010
ref: 6

CUSHION

€ 9.00

3576637110
ref: 7

SPACER

€ 11.50

3576637120
ref: 8

SPACER

€ 2.50

3576522210
ref: 9

CUSHION

€ 4.00

0947106009
ref: 10

BULB(6V17/5.3W,STANLEY,A4813)

€ 6.50

0831000057
ref: 12

NUT

€ 2.50

0832101057
ref: 13

WASHER,LOCK

€ 2.00

0150006307
ref: 14

BOLT

€ 2.50

0916006077
ref: 15

WASHER(6.5X20X1.2)

€ 2.00

0832101067
ref: 16

WASHER,LOCK

€ 2.50

0832331068
ref: 17

LOCK WASHER

€ 1.50

0831000067
ref: 18

NUT

€ 2.50

0930807002
ref: 19

GROMMET

€ 2.50
