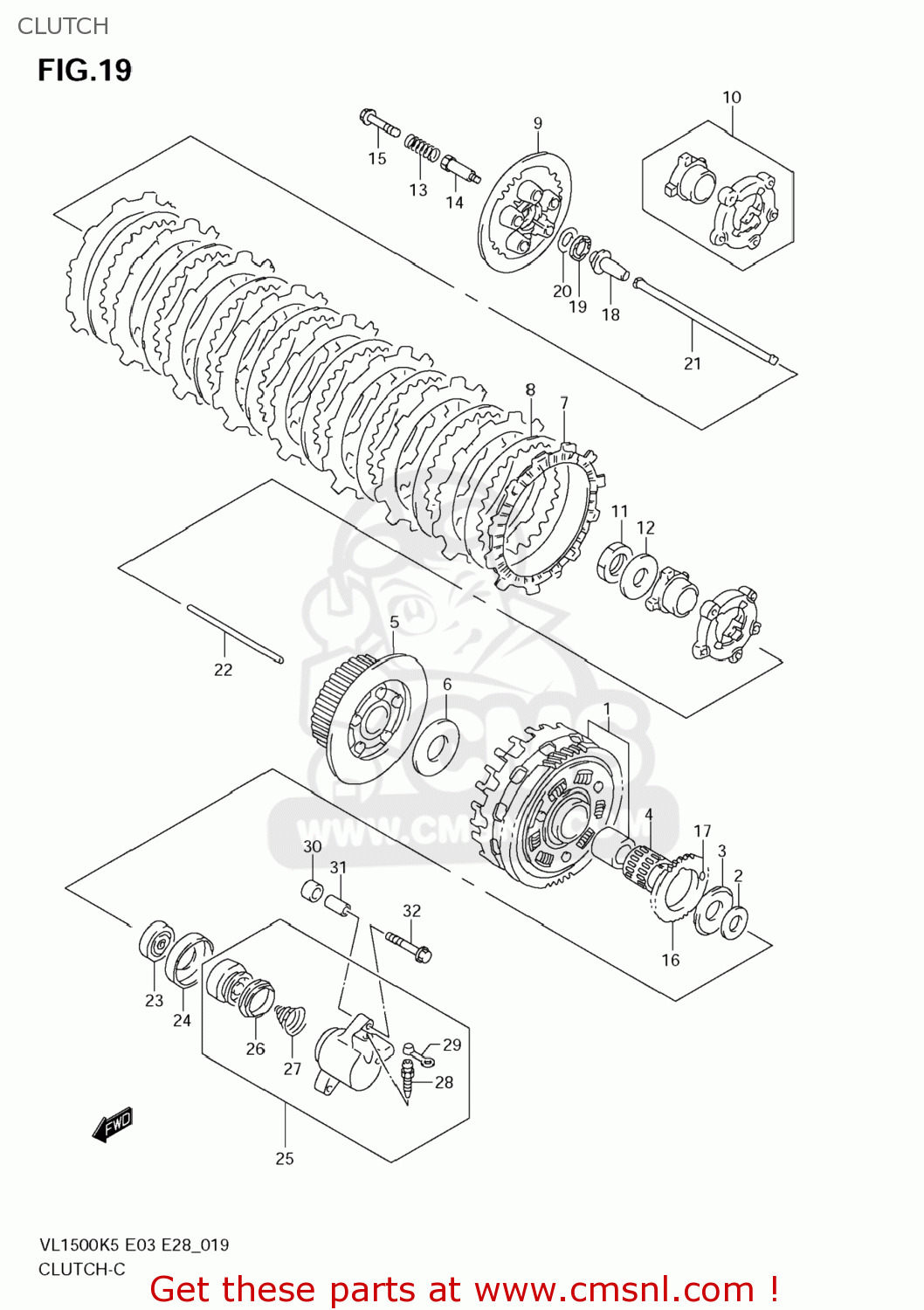

CLUTCH

ref

part #

description

quantity

1

2120010810
ref: 1

GEAR ASSY,PRI DRIVEN

€ 502.00

2

0916025066
ref: 2

WASHER(25X38X2.5)

€ 6.00

3

0916025037
ref: 3

WASHER(25X54X2.5)

€ 9.00

4

0926335017
ref: 4

BEARING(35X40X35.8)

€ 36.50

5

2141010F00
ref: 5

HUB,CLUTCH SLEEVE

€ 146.50

6

0916025056
ref: 6

WASHER(25X50X2.5)

€ 9.50

7

2144131D20
ref: 7

PLATE,CLUTCH DRIVE (NAS)

€ 25.00

8

2145144B00
ref: 8

PLATE,CLUTCH DRIVEN NO.1 (NAS)

€ 7.00

9

2146210F00
ref: 9

DISC,CLUTCH PRESSURE

€ 56.50

10

2161010F00
ref: 10

CAM SET,CLUTCH

€ 211.50

11

0915924010
ref: 11

NUT

€ 11.00

12

0916424006
ref: 12

WASHER

€ 4.00

13

2141310F10
ref: 13

SPRING,CLUTCH

€ 7.00

14

2141102F00
ref: 14

BOLT,CLUTCH SPRING SUPPORT

€ 9.00

15

2148213E00
ref: 15

BOLT,CLUTCH SPRING

€ 3.00

16

1632138B00
ref: 16

GEAR,OIL PUMP DRIVE

€ 62.50

17

0926106002
ref: 17

PIN(6X6)

€ 1.50

18

2312138B00
ref: 18

PIECE,CLUTCH PUSH

€ 25.00

19

0926315003
ref: 19

BEARING(15X28X2)

€ 7.00

20

0916015045
ref: 20

WASHER(15.5X28X1)

€ 4.00

21

2311038B00
ref: 21

ROD,CLUTCH PUSH,R

€ 19.00

22

2311124A01
ref: 22

ROD,CLUTCH PUSH,L

€ 15.00

23

0928506017
ref: 23

SEAL,OIL(6X34X11)

€ 11.00

24

2311738A00
ref: 24

RETAINER,CL PUSH ROD OIL SEAL

€ 6.00

25

2316010F00
ref: 25

CYLINDER,CLUTCH RELEASE

€ 122.50

26

2316310F00
ref: 26

CUP

€ 5.00

27

2316410F00
ref: 27

SPRING

€ 3.00

28

5912101A00
ref: 28

BLEEDER

€ 8.50

29

5912201A00
ref: 29

CAP,BLEEDER

€ 4.50

30

0918009019
ref: 30
09180-08208

SPACER(9X16X11)

€ 7.50

31

0920609011
ref: 31

PIN(6.4X9X23)

€ 7.50

32

015500640B
ref: 32

BOLT

€ 2.00
