CLUTCH MASTER CYLINDER (MODEL K5/K6)

VL1500T BOULEVARD C90 2008 (K8) USA (E03)

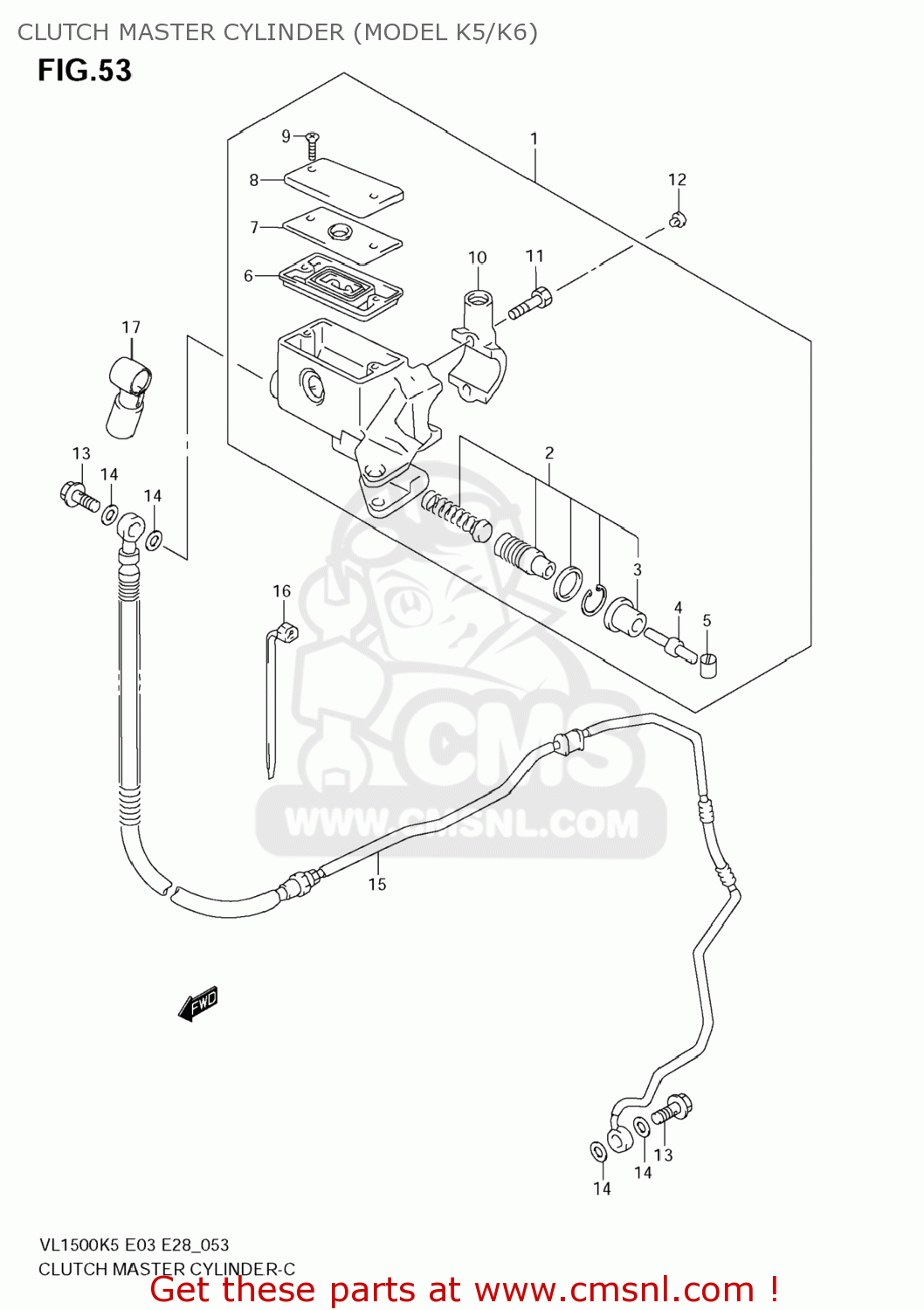

Clutch master cylinder (model k5/k6) diagram VL1500T BOULEVARD C90 2008 (K8) USA (E03)

CLUTCH MASTER CYLINDER (MODEL K5/K6) VL1500T BOULEVARD C90 2008 (K8) USA (E03)
CLUTCH MASTER CYLINDER (MODEL K5/K6) VL1500T BOULEVARD C90 2008 (K8) USA (E03)
CLUTCH MASTER CYLINDER (MODEL K5/K6) VL1500T BOULEVARD C90 2008 (K8) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5980010F10
ref: 1
CYLINDER ASSY,CLUTCH MASTER
€ 429.00
2
5980008810
ref: 2
PISTON & CUP SET
5980008810
€ 36.50
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
5987110F00
ref: 4
ROD,PUSH
5987110F00
€ 8.50
5
5989208A00
ref: 5
BUSH
5989208A00
€ 5.50
6
5966749460
ref: 6
5966749460
7
5966841C00
ref: 7
PLATE,DIAPHRAGM
5966841C00
€ 8.00
8
5966910F00
ref: 8
CAP
5966910F00
€ 59.50
9
0212204127
ref: 9
SCREW
0212204127
€ 2.00
10
5967138A00
ref: 10
HOLDER
5967138A00
€ 37.50
11
0713006207
ref: 11
BOLT
0713006207
€ 3.50
12
0925005008
ref: 12
CAP(OD:10)
0925005008
€ 5.00
13
0936010062
ref: 13
BOLT UNION
0936010062
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
0916110009
€ 2.00
15
5990010F21
ref: 15
HOSE ASSY,CLUTCH
€ 155.00
16
0940725401
ref: 16
CLAMP(L:235)
0940725401
€ 4.00
17
5971110F10
ref: 17
BOOT,MASTER CYLINDER
€ 6.00
