OIL COOLER

VL1500T BOULEVARD C90 2008 (K8) USA (E03)

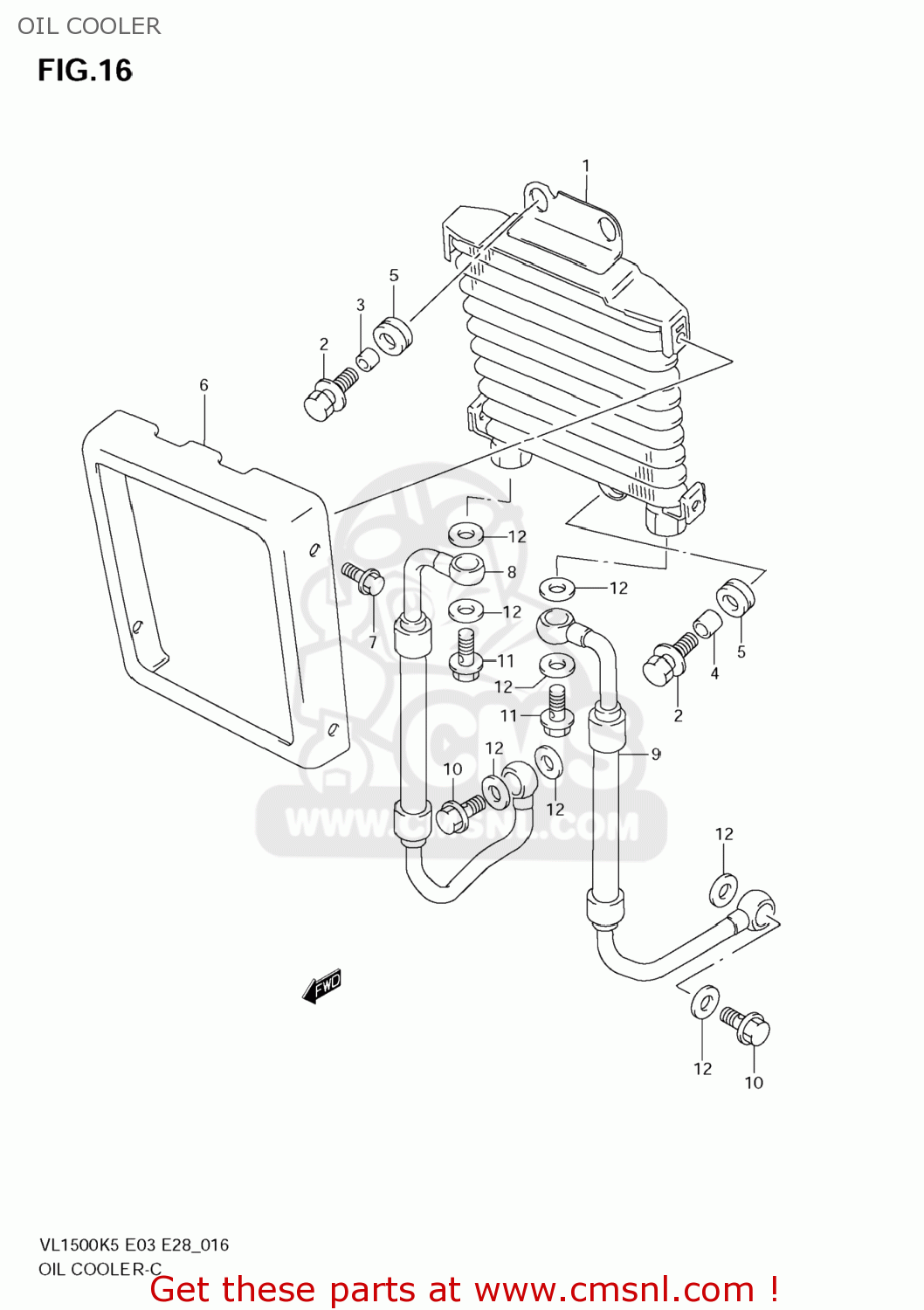

Oil cooler diagram VL1500T BOULEVARD C90 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1660010F00
ref: 1

COOLER ASSY,OIL

€ 873.00

0911606167
ref: 2

BOLT(6X20)

€ 2.00

0918006310
ref: 3

SPACER(6.5X10X10)

€ 2.00

0918007004
ref: 4

SPACER(6.5X10.5X12)

€ 2.50

0932010015
ref: 5

CUSHION

€ 2.50

1662110F00
ref: 6

COVER,OIL COOLER

€ 134.00

0913906091
ref: 7

SCREW(6X12)

€ 4.00

1646010F10
ref: 8

HOSE,OIL COOLER,R

€ 186.50

1647010F10
ref: 9

HOSE,OIL COOLER,L

€ 186.50

0936014012
ref: 10

BOLT UNION

€ 10.00

0936014009
ref: 11

BOLT UNION

€ 9.50

0916814015
ref: 12

GASKET(14X20X1.5) (NAS)

€ 1.50
