WIRING HARNESS

VL1500T BOULEVARD C90 2008 (K8) USA (E03)

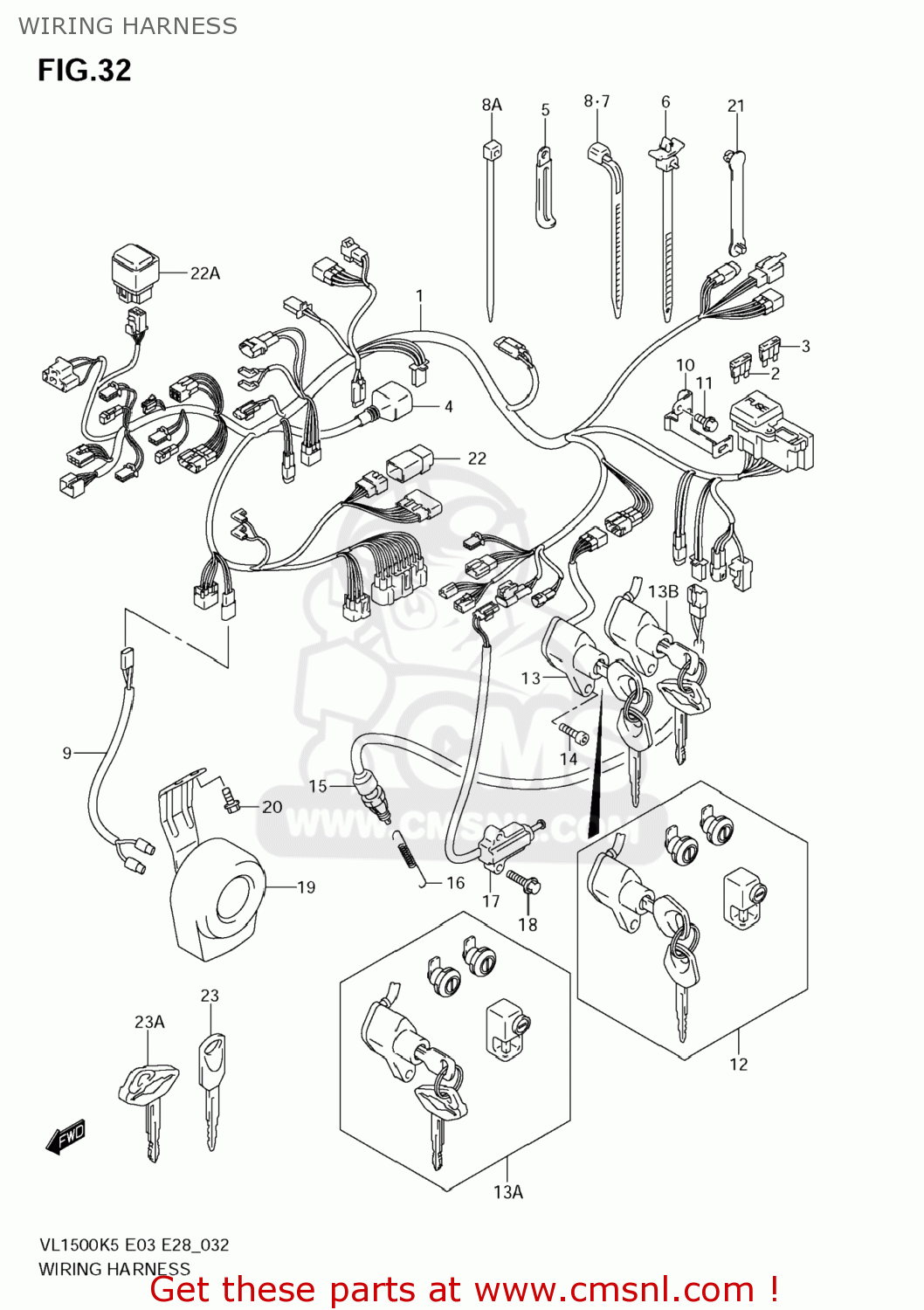

Wiring harness diagram VL1500T BOULEVARD C90 2008 (K8) USA (E03)

WIRING HARNESS VL1500T BOULEVARD C90 2008 (K8) USA (E03)
WIRING HARNESS VL1500T BOULEVARD C90 2008 (K8) USA (E03)
WIRING HARNESS VL1500T BOULEVARD C90 2008 (K8) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3661010FD0
ref: 1-1
HARNESS,WIRING
€ 0.00
1-2
3661010FH0
ref: 1-2
HARNESS,WIRING
€ 0.00
2
0948110501
ref: 2
FUSE(10A)
0948110501
€ 3.00
3
0948115501
ref: 3
FUSE(15A)
0948115501
€ 1.00
4
3661833E00
ref: 4
COVER,SPEEDOMETER COUPLER
€ 5.50
5-1
0940406429
ref: 5-1
CLAMP(L:45)
€ 2.50
5-2
0940406433
ref: 5-2
CLAMP(L:80)
0940406433
€ 3.00
5-3
0940406435
ref: 5-3
CLAMP(L:135)
0940406435
€ 2.50
6
0940711402
ref: 6
CLAMP(L:90)
0940711402
€ 2.50
7-1
0940714403
ref: 7-1
CLAMP(L:125)
0940714403
€ 2.50
7-2
0940718402
ref: 7-2
CLAMP(L:165)
0940718402
€ 2.50
7-3
0940725401
ref: 7-3
CLAMP(L:235)
0940725401
€ 4.00
8
0940719401
ref: 8
CLAMP(L:190)
€ 2.00
8A
0940714407
ref: 8A
CLAMP(L:145)
0940714407
€ 4.00
9
3685221E10
ref: 9
WIRE,HORN LEAD
€ 14.00
10
3674410F00
ref: 10
BRACKET,FUSE
€ 6.00
11
015500612B
ref: 11
BOLT
015500612B
€ 2.50
12
3700026832
ref: 12
LOCK SET
3700026832
€ 285.00
13
3711026F02
ref: 13
SWITCH ASSY,IGNITION
3711026F02
€ 95.00
13A
3710210880
ref: 13A
LOCK SET
€ 449.50
13B
3711010FA0
ref: 13B
SWITCH ASSY,IGNITION
€ 0.00
14
071300616B
ref: 14
BOLT
071300616B
€ 3.00
15
3774010F00
ref: 15
SWITCH ASSY,STOP LAMP
3774010F00
€ 33.50
16
4313910F00
ref: 16
SPRING,STOP LAMP SWITCH
€ 7.00
17
3784010F00
ref: 17
SWITCH ASSY,SIDE STAND
3784010F00
€ 101.50
18
015500620A
ref: 18
BOLT
015500620A
€ 2.50
19-1
3850010F20
ref: 19-1
HORN ASSY
€ 149.50
19-1
3850010F20
ref: 19-1
HORN ASSY
€ 149.50
19-2
3850010F00
ref: 19-2
HORN ASSY
€ 102.50
20
015500616B
ref: 20
BOLT
015500616B
€ 2.50
21
0940703401
ref: 21
CLAMP(L:33)
0940703401
€ 3.50
22
3874024X50
ref: 22
RELAY ASSY
3874024X50
€ 37.50
22A
3874024A00
ref: 22A
RELAY ASSY
€ 39.00
23
3714648E00
ref: 23
37146-48E10
KEY,BLANK
3714648E00
€ 21.00
23A
3714610F00
ref: 23A
KEY,BLANK(BOULEVARD)
3714610F00
€ 65.00
