SIDE COVER (MODEL K6/K7)

VL1500T BOULEVARD C90 2008 (K8) USA (E03)

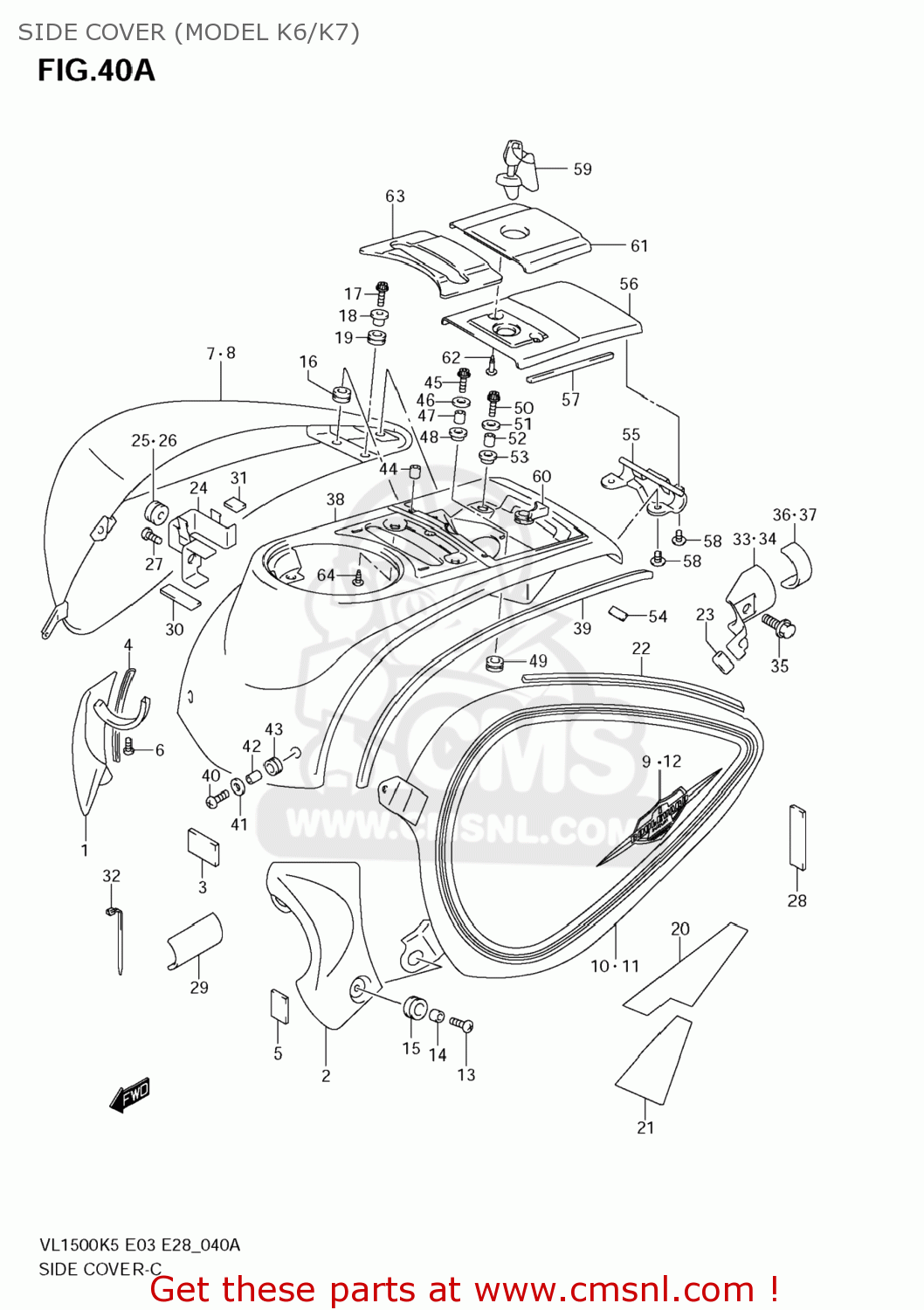

Side cover (model k6/k7) diagram VL1500T BOULEVARD C90 2008 (K8) USA (E03)

SIDE COVER (MODEL K6/K7) VL1500T BOULEVARD C90 2008 (K8) USA (E03)
SIDE COVER (MODEL K6/K7) VL1500T BOULEVARD C90 2008 (K8) USA (E03)
SIDE COVER (MODEL K6/K7) VL1500T BOULEVARD C90 2008 (K8) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4751010F01
ref: 1
COVER,FRAME HEAD,R
4751010F01
€ 120.00
2
4752010F02
ref: 2
COVER,FRAME HEAD,L
4752010F02
€ 120.00
3
4782910F00
ref: 3
44612-13600
CUSHION,METER COVER RE
€ 3.00
4
4751410F00
ref: 4
MOLDING,FRAME HEAD COVER
4751410F00
€ 5.50
5
4716110D00
ref: 5
PROTECTOR,FRAME COVER
4716110D00
€ 3.50
6
0913906028
ref: 6
SCREW(6X20)
0913906028
€ 3.50
7-1
4780010F50YAY
ref: 7-1
COVER ASSY,SIDE UPR,R
4780010F50YAY
€ 406.50
7-2
4780010F50YHF
ref: 7-2
COVER ASSY,SIDE UPR,R
€ 0.00
7-3
4780010F50YHG
ref: 7-3
COVER ASSY,SIDE UPR,R
€ 0.00
8-1
4780010F70YHG
ref: 8-1
COVER ASSY,SIDE UPR,R
€ 658.00
8-2
4780010F70YHF
ref: 8-2
COVER ASSY,SIDE UPR,R
€ 658.00
8-3
4780010F70YAY
ref: 8-3
COVER ASSY,SIDE UPR,R
€ 658.00
8-4
4780010F70YD8
ref: 8-4
COVER ASSY,SIDE UPR,R
4780010F70YD8
€ 658.00
9
6811110FA0
ref: 9
68111-10FA1
EMBLEM,SIDE CO
6811110FA0
€ 61.00
10-1
4790010F50YAY
ref: 10-1
COVER ASSY,SIDE UPR,L
€ 528.50
10-2
4790010F50YHF
ref: 10-2
COVER ASSY,SIDE UPR,L
€ 0.00
10-3
4790010F50YHG
ref: 10-3
COVER ASSY,SIDE UPR,L
€ 0.00
11-1
4790010F70YHG
ref: 11-1
COVER ASSY,SIDE UPR,L
€ 547.50
11-2
4790010F70YHF
ref: 11-2
COVER ASSY,SIDE UPR,L
€ 658.00
11-3
4790010F70YAY
ref: 11-3
COVER ASSY,SIDE UPR,L
€ 552.50
11-4
4790010F70YD8
ref: 11-4
COVER ASSY,SIDE UPR,L
4790010F70YD8
€ 592.50
12
6812110FA0
ref: 12
68121-10FA1
EMBLEM,SIDE CO
6812110FA0
€ 61.00
13
0913906030
ref: 13
SCREW(6X16)
0913906030
€ 3.50
14
0918006260
ref: 14
SPACER(6.5X9X7.2)
0918006260
€ 3.50
15
0932008021
ref: 15
CUSHION
0932008021
€ 4.00
16
4782210F00
ref: 16
CUSHION,SIDE UP METER & FRAME
4782210F00
€ 7.50
17
0712006203
ref: 17
07120-0620B
BOLT
0712006203
€ 3.50
18
4782710F00
ref: 18
WASHER,SIDE UPR COVER
4782710F00
€ 5.00
19
4782610F00
ref: 19
CUSHION,SIDE UPR COVER
4782610F00
€ 7.50
20
4783510FA0
ref: 20
SHIELD,SIDE UPR COVER,R
€ 43.50
21
4783610FA0
ref: 21
SHIELD,SIDE UPR COVER,L
€ 43.50
22
4783710FA0
ref: 22
MOLDING,SIDE UPR COVER UNDER
4783710FA0
€ 9.50
23
4716610FA0
ref: 23
CUSHION,BRACKET
€ 4.00
24
4785010FA0
ref: 24
BRACKET,SIDE UPR COVER
€ 9.00
25
0932110034
ref: 25
CUSHION
0932110034
€ 6.50
26
0932110012
ref: 26
CUSHION
0932110012
€ 3.00
27
0155006163
ref: 27
01550-0616A
BOLT
0155006163
€ 2.50
28
4716410FA0
ref: 28
TAPE,HEAT SHIELD
€ 6.00
29
4716510FA0
ref: 29
CUSHION,SIDE COVER FR
€ 10.00
30
3181229F00
ref: 30
PROTECTOR,STARTING MOTOR LEAD
3181229F00
€ 3.50
31
1776509F00
ref: 31
PROTECTOR,CTR
1776509F00
€ 2.50
32
0940718402
ref: 32
CLAMP(L:165)
0940718402
€ 2.50
33
4783910FA0
ref: 33
BRACKET,SIDE UPR COVER,R
€ 8.00
34
4784910FA0
ref: 34
BRACKET,SIDE UPR COVER,L
€ 10.50
35
0155006163
ref: 35
01550-0616A
BOLT
0155006163
€ 2.50
36
4716110FA0
ref: 36
CUSHION,BRACKET NO.1
€ 5.00
37
4716210FA0
ref: 37
CUSHION,BRACKET NO.2
€ 5.00
38
4782110FA0
ref: 38
COVER,METER & FUEL INLET
€ 633.00
39
4782410FB0
ref: 39
MOLDING,METER COVER
4782410FB0
€ 11.50
40
0913906030
ref: 40
SCREW(6X16)
0913906030
€ 3.50
41
0916006036
ref: 41
WASHER(6.5X18X1.5)
0916006036
€ 1.50
42
0918006256
ref: 42
SPACER(6.5X9X5.7)
0918006256
€ 2.00
43
0932008051
ref: 43
09320-08066
CUSHION
0932008051
€ 7.50
44
0932106013
ref: 44
CUSHION
0932106013
€ 2.50
45
0712006253
ref: 45
07120-0625A
BOLT,OIL PAN
0712006253
€ 2.50
46
0916006084
ref: 46
WASHER(6.5X18X1.6)
0916006084
€ 2.00
47
0918006265
ref: 47
SPACER(6.5X9X11)
0918006265
€ 4.50
48
4782510F00
ref: 48
CUSHION,METER COVER
4782510F00
€ 7.50
49
4782210F00
ref: 49
CUSHION,SIDE UP METER & FRAME
4782210F00
€ 7.50
50
0712006163
ref: 50
07120-0616B
BOLT MAGNETO S
0712006163
€ 2.50
51
0916006084
ref: 51
WASHER(6.5X18X1.6)
0916006084
€ 2.00
52
0918006256
ref: 52
SPACER(6.5X9X5.7)
0918006256
€ 2.00
53
0932008051
ref: 53
09320-08066
CUSHION
0932008051
€ 7.50
54
4782910F00
ref: 54
44612-13600
CUSHION,METER COVER RE
€ 3.00
55
4738010F00
ref: 55
47380-10F01
HINGE COMP,FUEL LID
€ 16.00
56
4781110FA0
ref: 56
LID,FUEL INLET
4781110FA0
€ 180.00
57
4781210F00
ref: 57
CUSHION,FUEL LID
4781210F00
€ 4.50
58
0214206123
ref: 58
02142-0612A
SCREW 6X12
0214206123
€ 2.00
59
9570007860
ref: 59
LOCK SET,COVER
9570007860
€ 76.00
60
4782810F00
ref: 60
CUSHION,RR,L
4782810F00
€ 15.00
61
4781210FA0
ref: 61
COVER,FUEL LID
4781210FA0
€ 17.00
62
0354105123
ref: 62
03541-0512A
SCREW
0354105123
€ 2.00
63
4782210FA0
ref: 63
COVER,METER SWITCH
€ 10.50
64
0354105123
ref: 64
03541-0512A
SCREW
0354105123
€ 2.00
