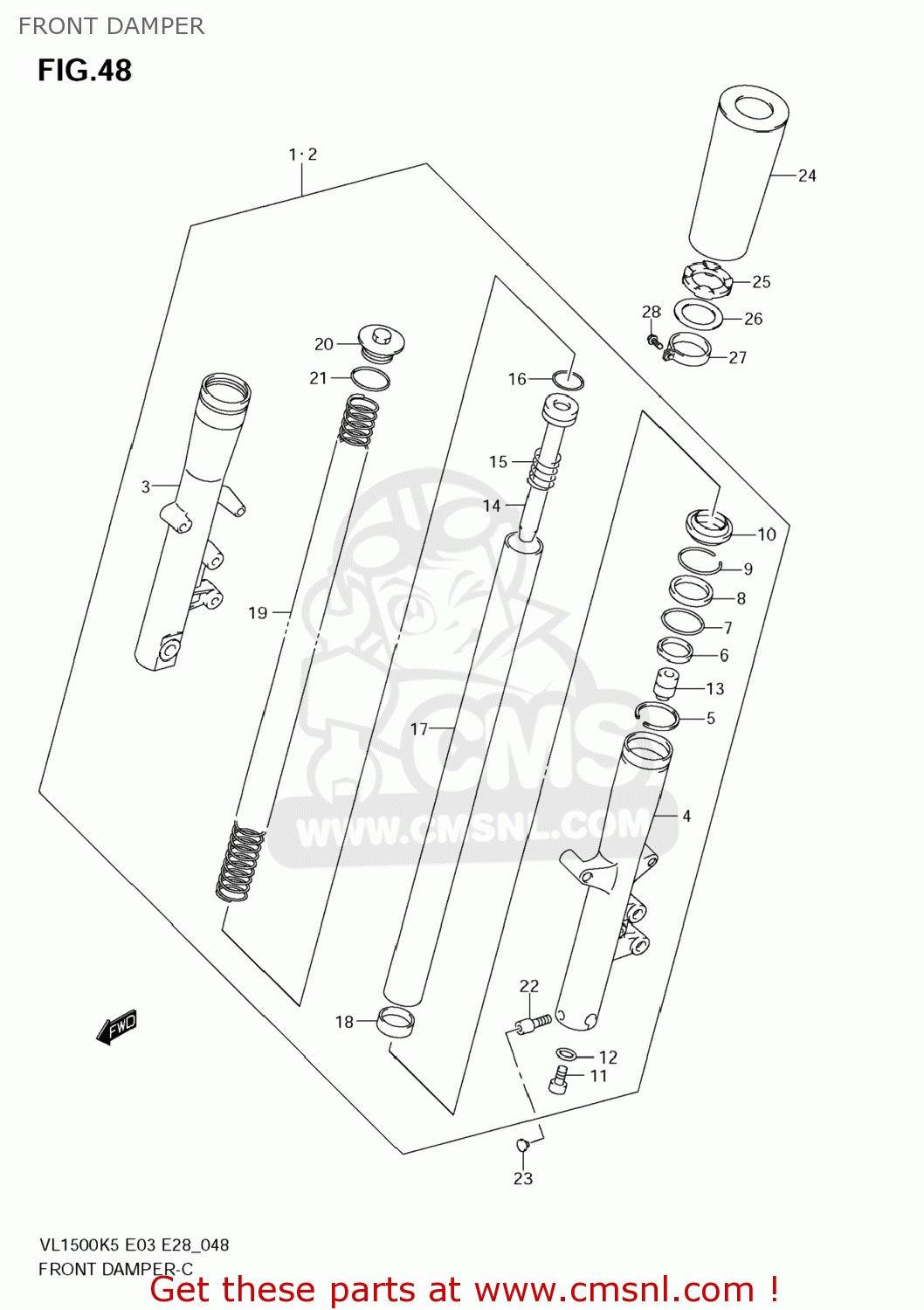

FRONT DAMPER

ref

part #

description

quantity

1

5110310F70
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,026.00

2

5110410F70
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,026.00

3

5113110F50
ref: 3

TUBE,OUTER,R

€ 513.00

4

5114110F50
ref: 4

TUBE,OUTER,L

€ 513.00

5

5146910F00
ref: 5

GUIDE,CASE

€ 16.00

6

5115211D60
ref: 6

BUSH,GUIDE

€ 12.00

7

5116838B00
ref: 7

SPACER,SEAL

€ 5.00

8

5115308D00
ref: 8

SEAL,OIL

€ 15.50

9

5155638B00
ref: 9

CIRCLIP,FORK OIL SEAL

€ 4.50

10

5157147D50
ref: 10

SEAL,DUST

€ 18.00

11

5114706F10
ref: 11

BOLT

€ 3.00

12

5114836011
ref: 12

GASKET (NAS)

€ 4.00

13

5119510F00
ref: 13

PIECE,OIL LOCK

€ 18.50

14

5114610F00
ref: 14

SEAT,PIPE

€ 71.50

15

5117710F00
ref: 15

SPRING,REBOUND

€ 7.00

16

5119647D00
ref: 16

RING,PISTON

€ 6.00

17

5111010F70
ref: 17

TUBE,INNER

€ 537.00

18

5112142E00
ref: 18

BUSH,SLIDE

€ 15.50

19

5117110F70
ref: 19

SPRING,FR

€ 78.50

20

5118938C00
ref: 20

BOLT,FORK

€ 25.50

21

5111712C00
ref: 21

O RING

€ 3.00

22

5116610F00
ref: 22

BOLT

€ 8.00

23

0925006009
ref: 23

CAP(OD:14.5)

€ 3.50

24

5146410F70
ref: 24

CASE,UNDER

€ 138.50

25

5146810F00
ref: 25

SEAT,RUBBER

€ 13.50

26

5146710F00
ref: 26

WASHER

€ 8.00

27

5146541F20
ref: 27

SPACER

€ 34.00

28

5146610F00
ref: 28

BOLT

€ 4.50
