OIL PUMP
VL1500T BOULEVARD C90 2008 (K8) USA (E03)

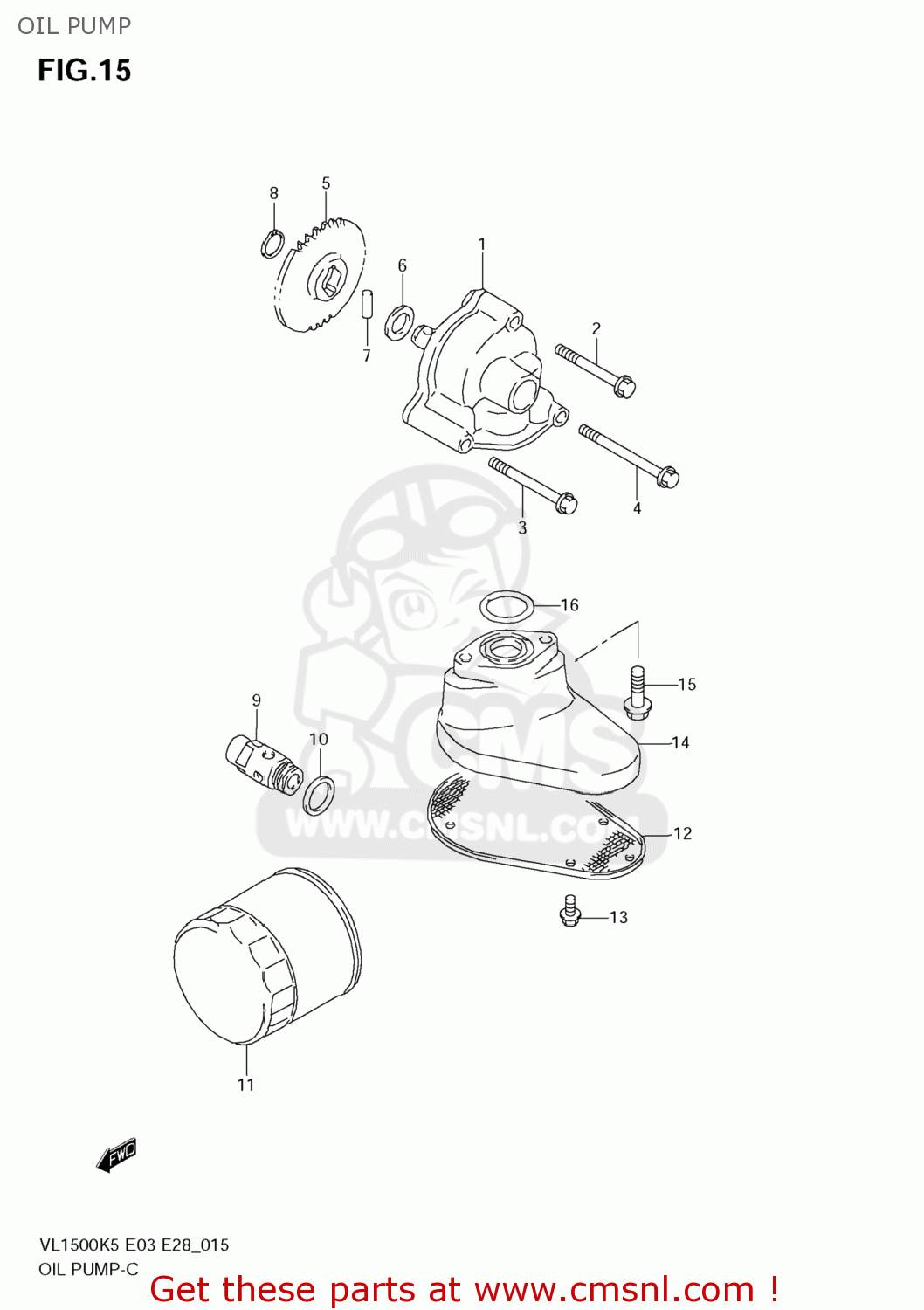

Oil pump diagram VL1500T BOULEVARD C90 2008 (K8) USA (E03)
OIL PUMP VL1500T BOULEVARD C90 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640038B10
ref: 1
PUMP ASSY,ENGINE OIL
€ 242.50
2
015470645B
ref: 2
BOLT
€ 3.00
3
015470655B
ref: 3
BOLT
€ 3.00
4
015470665B
ref: 4
BOLT
€ 2.00
5
1633138B01
ref: 5
GEAR,OIL PUMP DRIVEN
€ 61.50
6
0918112158
ref: 6
SHIM(12X20X0.5)
€ 2.00
7
0926105006
ref: 7
PIN(5X18)
€ 1.50
8
0833131126
ref: 8
08331-3112A
CIRCLIP,12 MM
€ 2.00
9
1644017C20
ref: 9
VALVE ASSY,OIL RELIEF
€ 39.00
10
0916816002
ref: 10
GASKET(16X22X2) (NAS)
€ 2.00
11-1
1651003G00X07
ref: 11-1
16510-07J00
FILTER ASSY,EN
€ 12.50
11-2
1651022H00
ref: 11-2
FILTER ASSY,EN
€ 33.50
12
1652038B10
ref: 12
STRAINER,ENGINE OIL
€ 21.00
13
015500510B
ref: 13
BOLT
€ 2.50
14
1652538B10
ref: 14
HOLDER,OIL STR
€ 24.00
15
015500625B
ref: 15
BOLT
€ 2.50
16
0928022008
ref: 16
O RING(D:3.1,ID:22.7)
€ 2.50
