STAND

VL1500T BOULEVARD C90 2008 (K8) USA (E03)

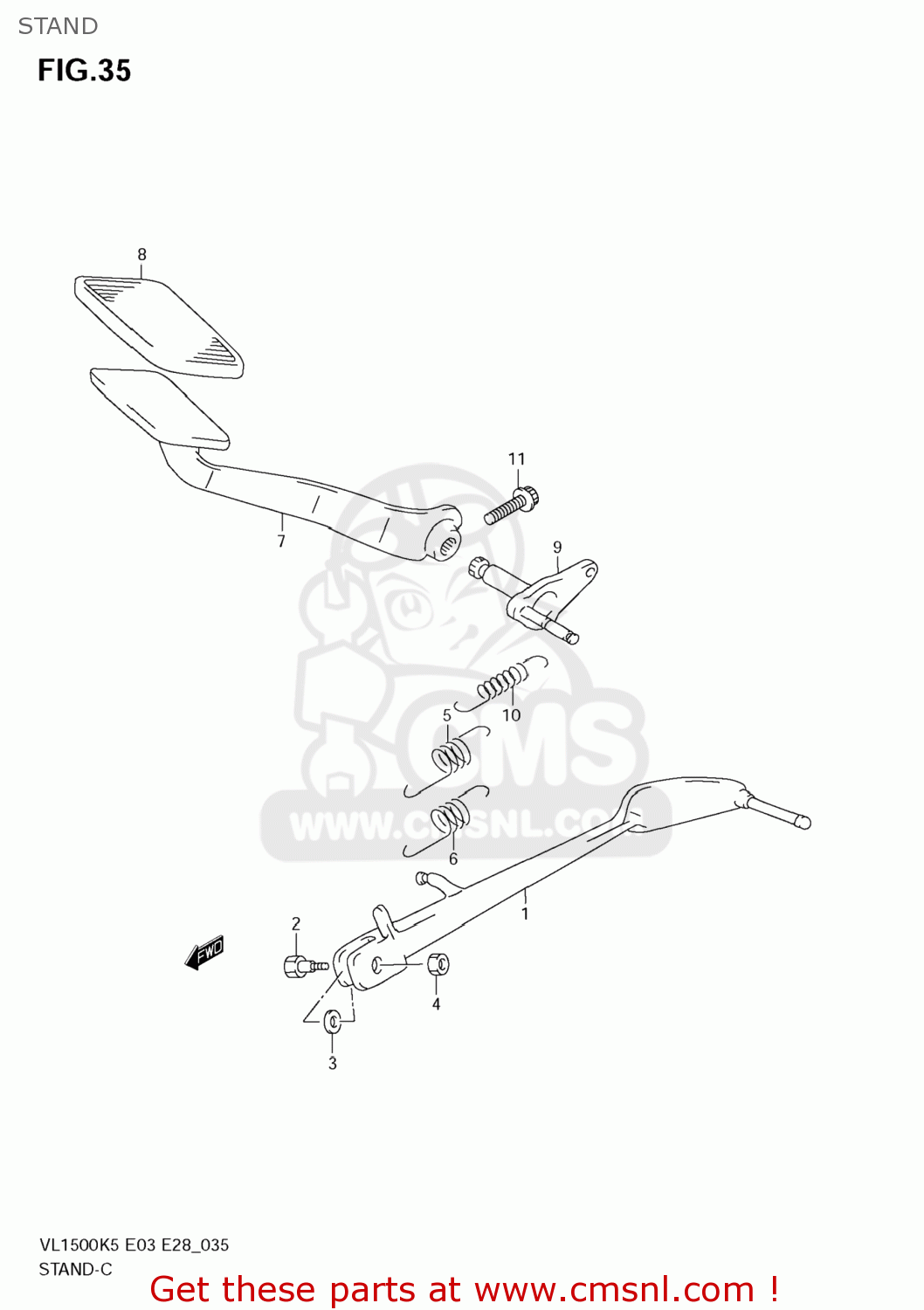

Stand diagram VL1500T BOULEVARD C90 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4231010F01
ref: 1-1
42310-10F02

STAND,PROP

€ 222.00

1-2

4231010F02
ref: 1-2

STAND,PROP

€ 222.00

0911110027
ref: 2

BOLT(10X34)

€ 3.50

0822112224
ref: 3

SHIM

€ 2.00

083192110B
ref: 4

NUT

€ 2.00

0944314066
ref: 5

SPRING

€ 5.00

0944319012
ref: 6

SPRING

€ 5.50

4311010F10
ref: 7

PEDAL,BRAKE

€ 111.00

4315110F00
ref: 8

RUBBER,BRAKE PEDAL

€ 6.50

4312010F00
ref: 9

ARM,BRAKE ROD

€ 73.00

0944311030
ref: 10

SPRING

€ 4.00

11-1

0712006253
ref: 11-1
07120-0625A

BOLT,OIL PAN

€ 2.50

11-2

071200625A
ref: 11-2

BOLT

€ 2.50
