Buy Suzuki VL Parts Online


FRAME COVER (MODEL K8)

VL1500T BOULEVARD C90 2008 (K8) USA (E03)

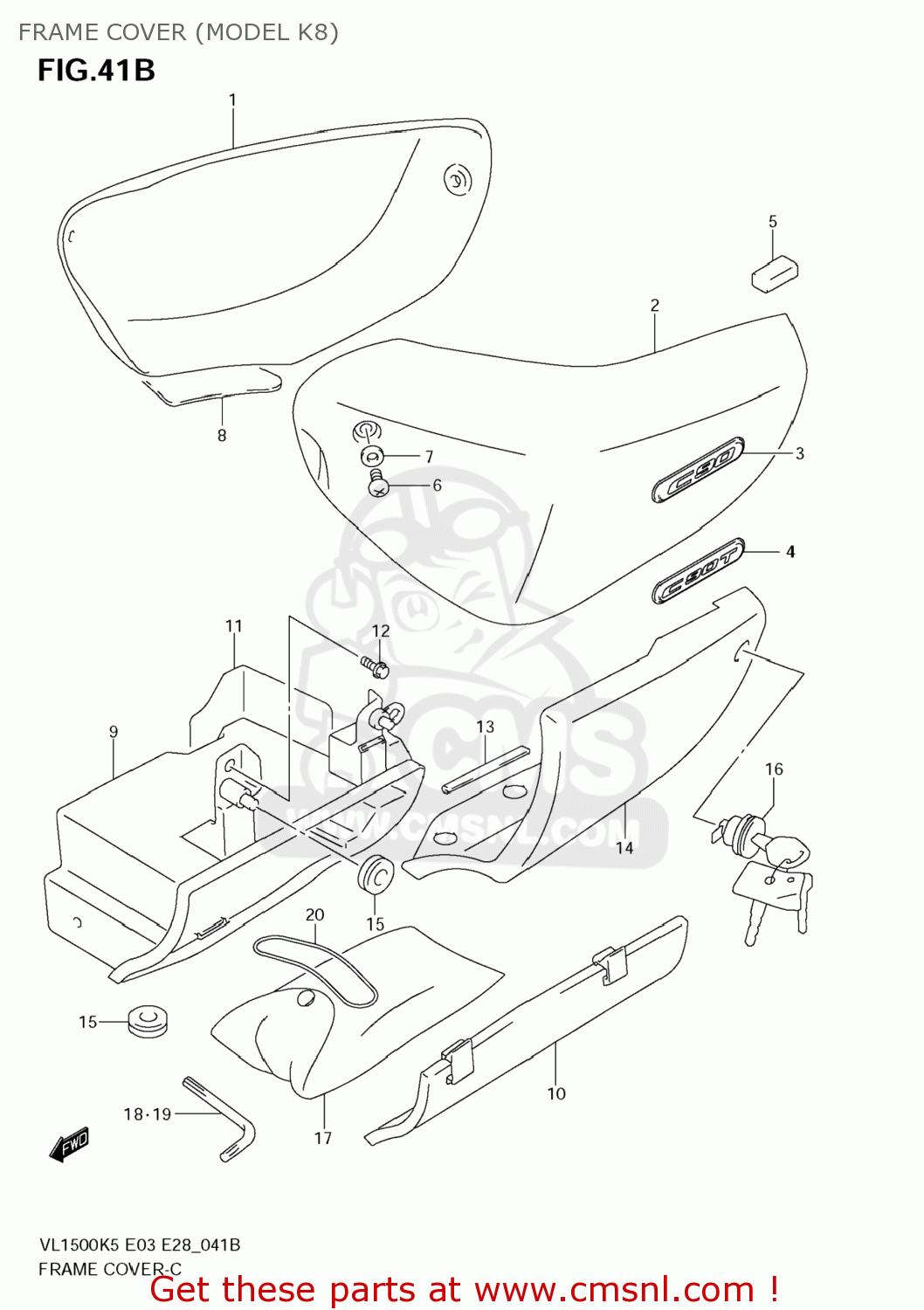

Frame cover (model k8) diagram VL1500T BOULEVARD C90 2008 (K8) USA (E03)

FRAME COVER (MODEL K8) VL1500T BOULEVARD C90 2008 (K8) USA (E03)
FRAME COVER (MODEL K8) VL1500T BOULEVARD C90 2008 (K8) USA (E03)
FRAME COVER (MODEL K8) VL1500T BOULEVARD C90 2008 (K8) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4711010F00YAY
ref: 1-1
COVER,FRAME,R(BLACK)
€ 343.50
1-2
4711010F00YLC
ref: 1-2
COVER,FRAME,R(GOLD)
€ 231.00
1-3
4711010F00YAY
ref: 1-3
COVER,FRAME,R(BLACK)
€ 343.50
1-4
4711010F00YHF
ref: 1-4
COVER,FRAME,R(GRAY)
4711010F00YHF
€ 208.50
1-5
4711010F00YMD
ref: 1-5
COVER,FRAME,R(SILVER)
4711010F00YMD
€ 208.50
2-1
4721010F00YAY
ref: 2-1
COVER,FRAME,L(BLACK)
€ 343.50
2-2
4721010F00YLC
ref: 2-2
COVER,FRAME,L(GOLD)
€ 231.00
2-3
4721010F00YAY
ref: 2-3
COVER,FRAME,L(BLACK)
€ 343.50
2-4
4721010F00YHF
ref: 2-4
COVER,FRAME,L(GRAY)
€ 224.50
2-5
4721010F00YMD
ref: 2-5
COVER,FRAME,L(SILVER)
€ 208.50
3
6813110FA0
ref: 3
EMBLEM,C90
€ 34.00
4
6813110FB0
ref: 4
EMBLEM,C90T
€ 27.50
5
4711710F00
ref: 5
CUSHION,FRAME COVER
4711710F00
€ 16.50
6
0913906030
ref: 6
SCREW(6X16)
0913906030
€ 3.50
7
0916006094
ref: 7
WASHER(6.5X15X1.0)
0916006094
€ 1.50
8
4716610F00
ref: 8
SHIELD,FRAME COVER,R
€ 21.50
9
4743110F00
ref: 9
BODY,TOOL HOLDER
€ 73.00
10
4743210F00
ref: 10
CAP,TOOL HOLDER
4743210F00
€ 17.50
11
4743610F00
ref: 11
SHIELD,TOOL HOLDER BODY
4743610F00
€ 46.50
12
0911306001
ref: 12
BOLT(6X16)
0911306001
€ 3.00
13
4721210F00
ref: 13
MOLDING,FRAME COVER,L
€ 3.50
14
4744010F00
ref: 14
COVER,TOOL HOLDER
4744010F00
€ 305.50
15
0932008047
ref: 15
CUSHION
0932008047
€ 4.00
16
9570007860
ref: 16
LOCK SET,COVER
9570007860
€ 76.00
17
0980021055
ref: 17
TOOL ASSY
0980021055
€ 6.00
18
0981600050
ref: 18
SPANNER,HEXAGON(6)
0981600050
€ 5.50
19
0981600059
ref: 19
HEXAGON SPANNER,5
0981600059
€ 5.50
20
0928061002
ref: 20
O RING(D:3.5,ID:61)
0928061002
€ 5.00
