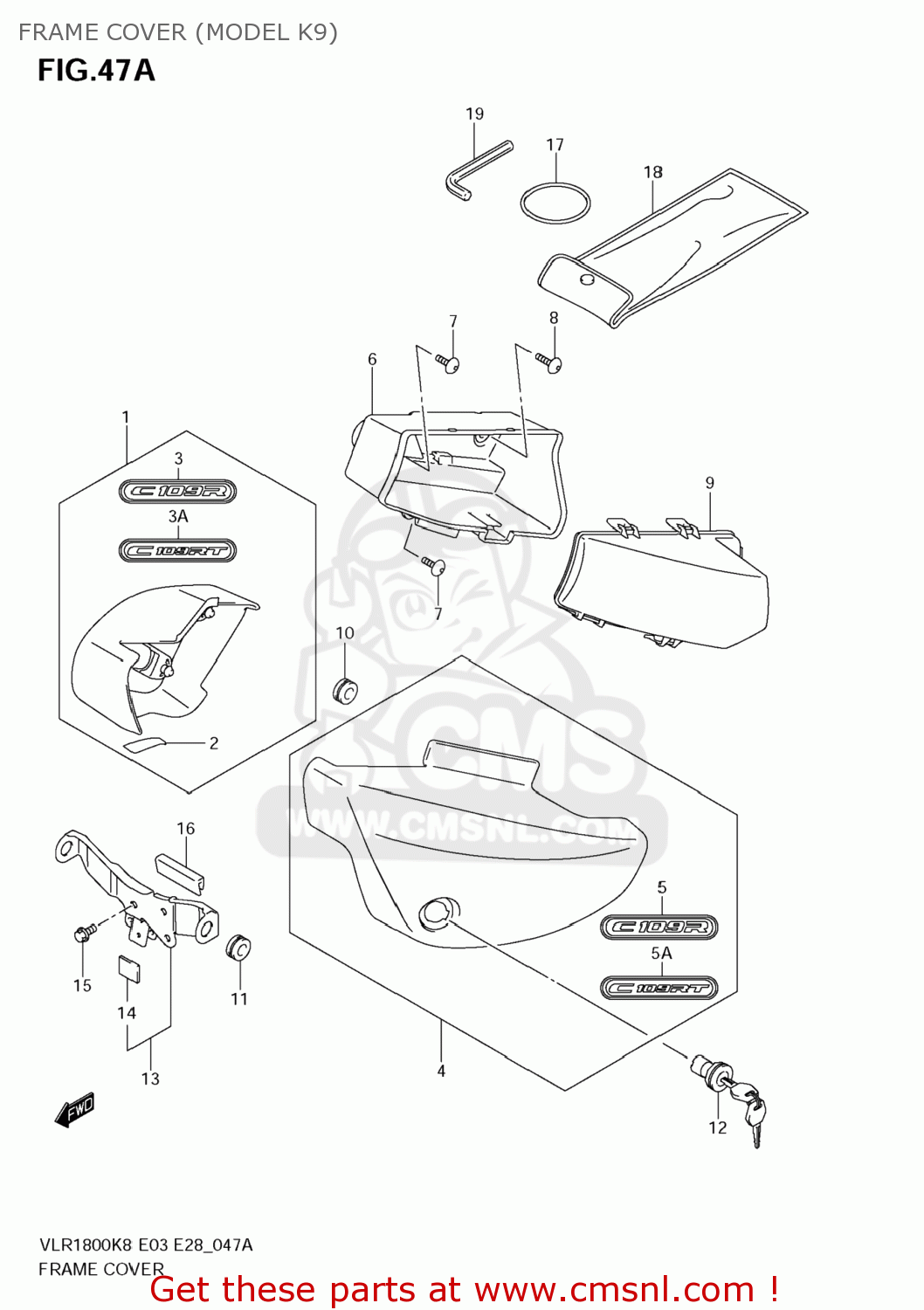

FRAME COVER (MODEL K9)

ref

part #

description

quantity

1-1

4711022H00YAY
ref: 1-1

COVER,FRAME,R(BLACK)

€ 141.00

1-2

4711022H00YKZ
ref: 1-2

COVER,FRAME,R(BLUE)

€ 141.00

1-3

4711022HA0YAY
ref: 1-3

COVER,FRAME,R(BLACK)

€ 141.00

1-4

4711022HA0YSY
ref: 1-4

COVER,FRAME,R(SILVER)

€ 0.00

2

4716622H00
ref: 2

SHIELD,FRAME COVER,R

€ 11.50

3

6813122H00
ref: 3

EMBLEM,C109R

€ 19.50

3A

6813122HA0
ref: 3A

EMBLEM,C109RT

€ 19.50

4-1

4721022H00YAY
ref: 4-1

COVER,FRAME,L(BLACK)

€ 141.00

4-2

4721022H00YKZ
ref: 4-2

COVER,FRAME,L(BLUE)

€ 141.00

4-3

4721022HA0YAY
ref: 4-3

COVER,FRAME,L(BLACK)

€ 141.00

4-4

4721022HA0YSY
ref: 4-4

COVER,FRAME,L(SILVER)

€ 141.00

5

6813122H00
ref: 5

EMBLEM,C109R

€ 19.50

5A

6813122HA0
ref: 5A

EMBLEM,C109RT

€ 19.50

6

9221122H00
ref: 6

BODY,LUGGAGE BOX

€ 36.50

7

0913906152
ref: 7

SCREW(6X12)

€ 4.50

8

0913906172
ref: 8

SCREW(6X10)

€ 3.00

9

9221222H00
ref: 9

LID,LUGGAGE BOX

€ 36.50

10

0932008018
ref: 10

CUSHION

€ 4.00

11

0932008049
ref: 11

CUSHION

€ 4.50

12

9570007870
ref: 12

LOCK SET,FRAME COVER

€ 124.50

13

4712022H00
ref: 13

BRACKET,FRAME COVER

€ 53.00

14

4489424A00
ref: 14

CUSHION

€ 1.50

15

015500610A
ref: 15

BOLT

€ 2.00

16

4751410F00
ref: 16

MOLDING,FRAME HEAD COVER

€ 5.50

17

0928061002
ref: 17

O RING(D:3.5,ID:61)

€ 5.00

18

0980021055
ref: 18

TOOL ASSY

€ 6.00

19-1

0981600050
ref: 19-1

SPANNER,HEXAGON(6)

€ 5.50

19-2

0981600059
ref: 19-2

HEXAGON SPANNER,5

€ 5.50

all assemblies
