Buy Suzuki VLR Parts Online


REAR COMBINATION LAMP

VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

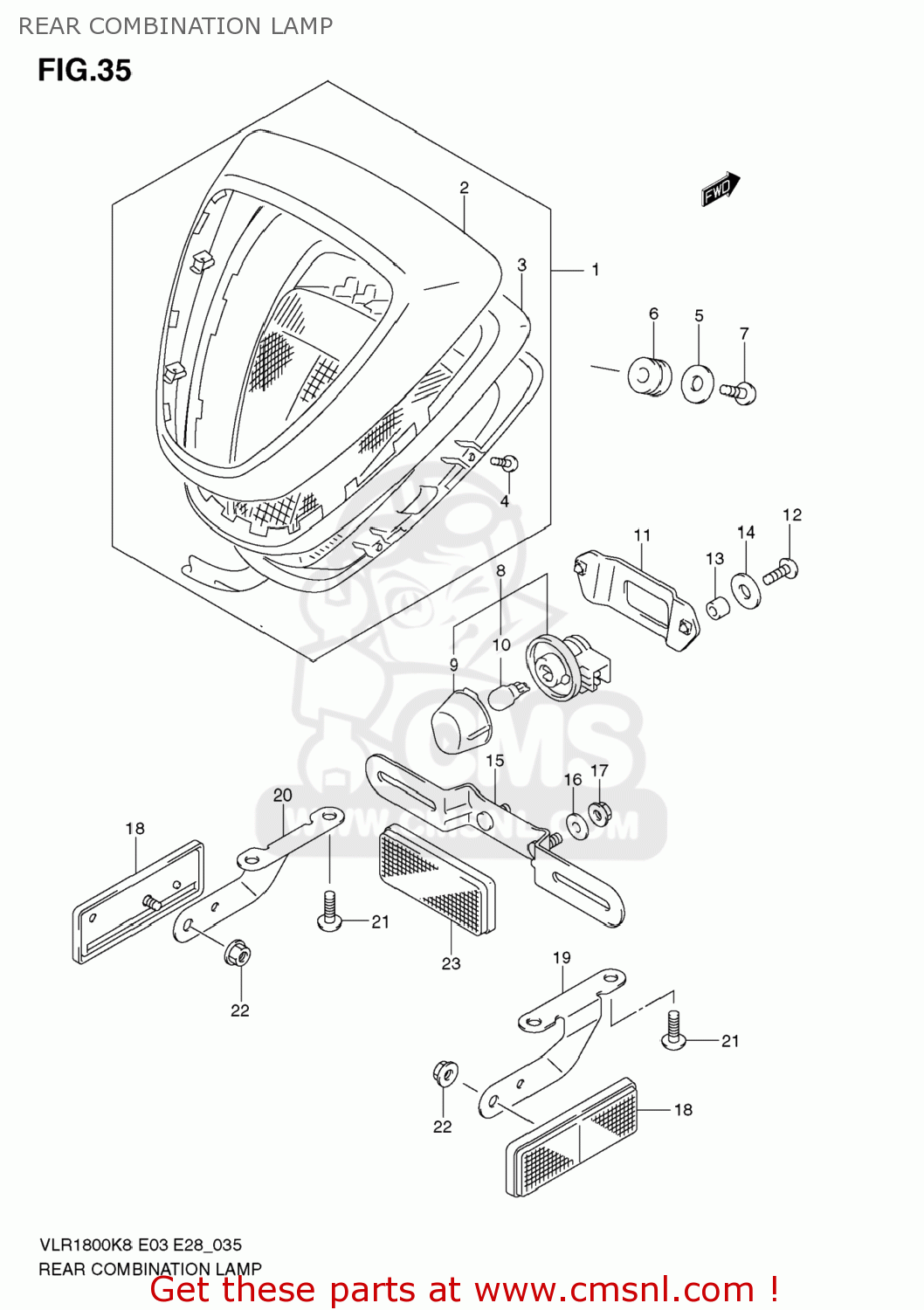

Rear combination lamp diagram VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

REAR COMBINATION LAMP VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)
REAR COMBINATION LAMP VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)
REAR COMBINATION LAMP VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
3571022H00
ref: 1
LAMP ASSY,RR COMBINATION
€ 728.50
2
3571722H00
ref: 2
COVER
3571722H00
€ 375.00
3
3571322H00
ref: 3
END,RUBBER
3571322H00
€ 41.00
4
3562341400
ref: 4
SCREW(3X12)
3562341400
€ 2.00
5
0916005501
ref: 5
WASHER(5.5X20X1.2)
0916005501
€ 2.00
6
0932009009
ref: 6
CUSHION
0932009009
€ 5.00
7
035410512A
ref: 7
SCREW
035410512A
€ 2.00
8
3591014F01
ref: 8
LAMP ASSY,LICENSE
3591014F01
€ 16.50
9
3591214F11
ref: 9
LENS
3591214F11
€ 6.50
10
0947112216
ref: 10
BULB(12V5W)
0947112216
€ 5.00
11
3592822H00
ref: 11
BRACKET,LICENSE LAMP
3592822H00
€ 10.00
12
0913605032
ref: 12
SCREW(5X16)
0913605032
€ 3.00
13
0918005053
ref: 13
SPACER(5.5X9.5X6.5)
0918005053
€ 2.00
14
0932010057
ref: 14
CUSHION
0932010057
€ 3.50
15
3592722H30
ref: 15
BRACKET,LICENSE PLATE
€ 9.50
16
0916006079
ref: 16
09160-06052
WASHER(6.5X16X1.2)
0916006079
€ 2.00
17
083161006A
ref: 17
NUT
083161006A
€ 2.50
18
3597007F01
ref: 18
REFLECTOR ASSY,RR
3597007F01
€ 20.50
19
3597522H00
ref: 19
BRACKET,RR SIDE RR,R
3597522H00
€ 6.00
20
3597622H00
ref: 20
BRACKET,RR SIDE RR,L
3597622H00
€ 7.50
21
021620612A
ref: 21
SCREW
021620612A
€ 2.50
22
083161005B
ref: 22
NUT
083161005B
€ 2.50
23
3597022H00
ref: 23
REFLECTOR ASSY,RR
3597022H00
€ 17.50
