SPEEDOMETER (VLR1800TK9)

VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

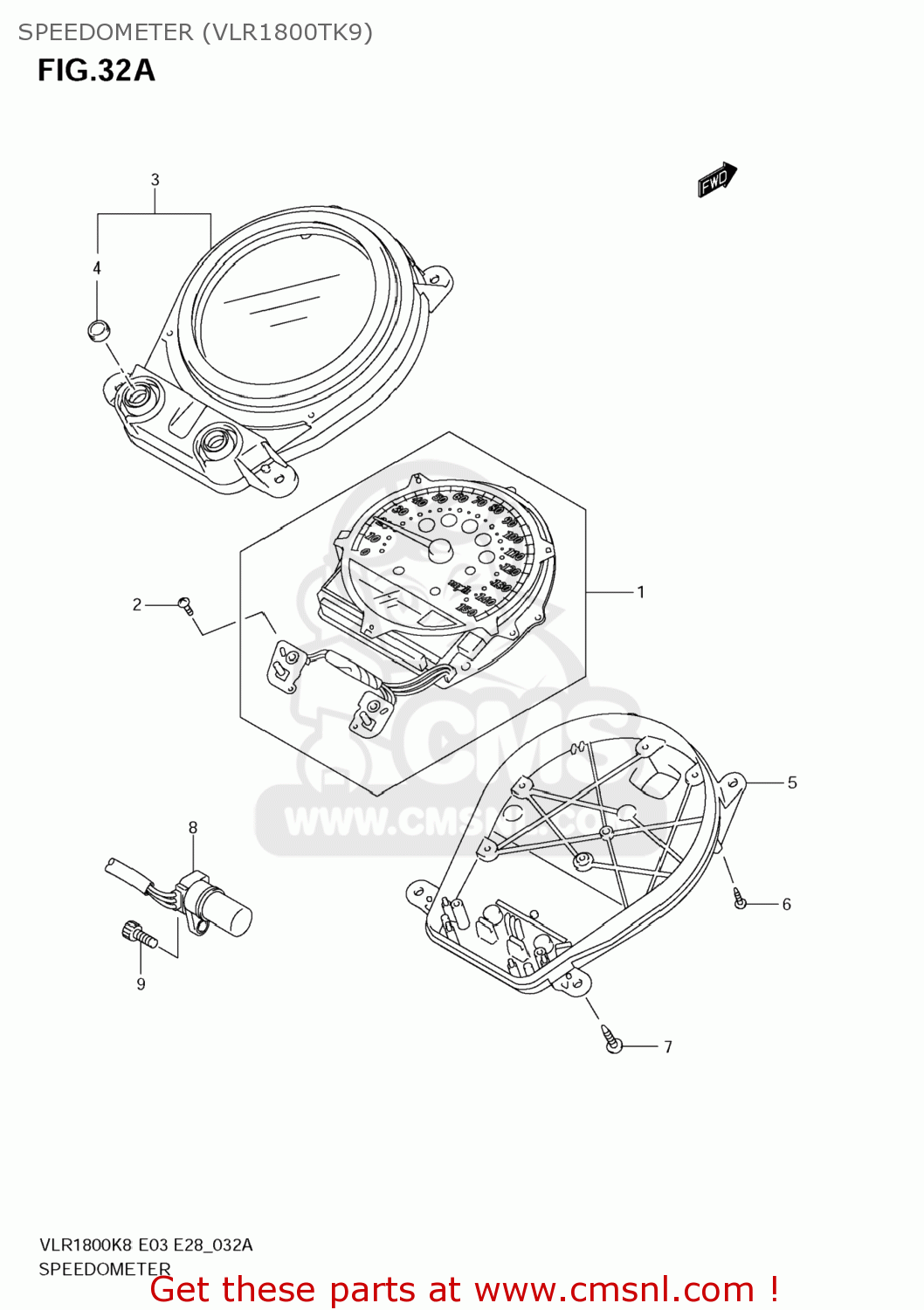

Speedometer (vlr1800tk9) diagram VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

SPEEDOMETER (VLR1800TK9) VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

SPEEDOMETER (VLR1800TK9) VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

3412022H30
ref: 1-1

SPEEDOMETER

€ 518.50

1-2

3412022H20
ref: 1-2

SPEEDOMETER

€ 654.00

2

0913203016
ref: 2

SCREW(3X12)

€ 1.50

3

3415022H00
ref: 3

CASE,UPR

€ 189.50

4

3412422H00
ref: 4

SWITCH,RUBBER

€ 11.00

5

3411122H00
ref: 5

CASE,LWR

€ 73.00

6

0913203008
ref: 6

SCREW(3X16)

€ 1.50

7

035410516A
ref: 7

SCREW

€ 1.50

8

3499048G00
ref: 8

SENSOR,SPEED

€ 95.50

9

071300616A
ref: 9
07130-0616B

BOLT

€ 3.00
