SEAT (VLR1800TK8/TK9)

VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

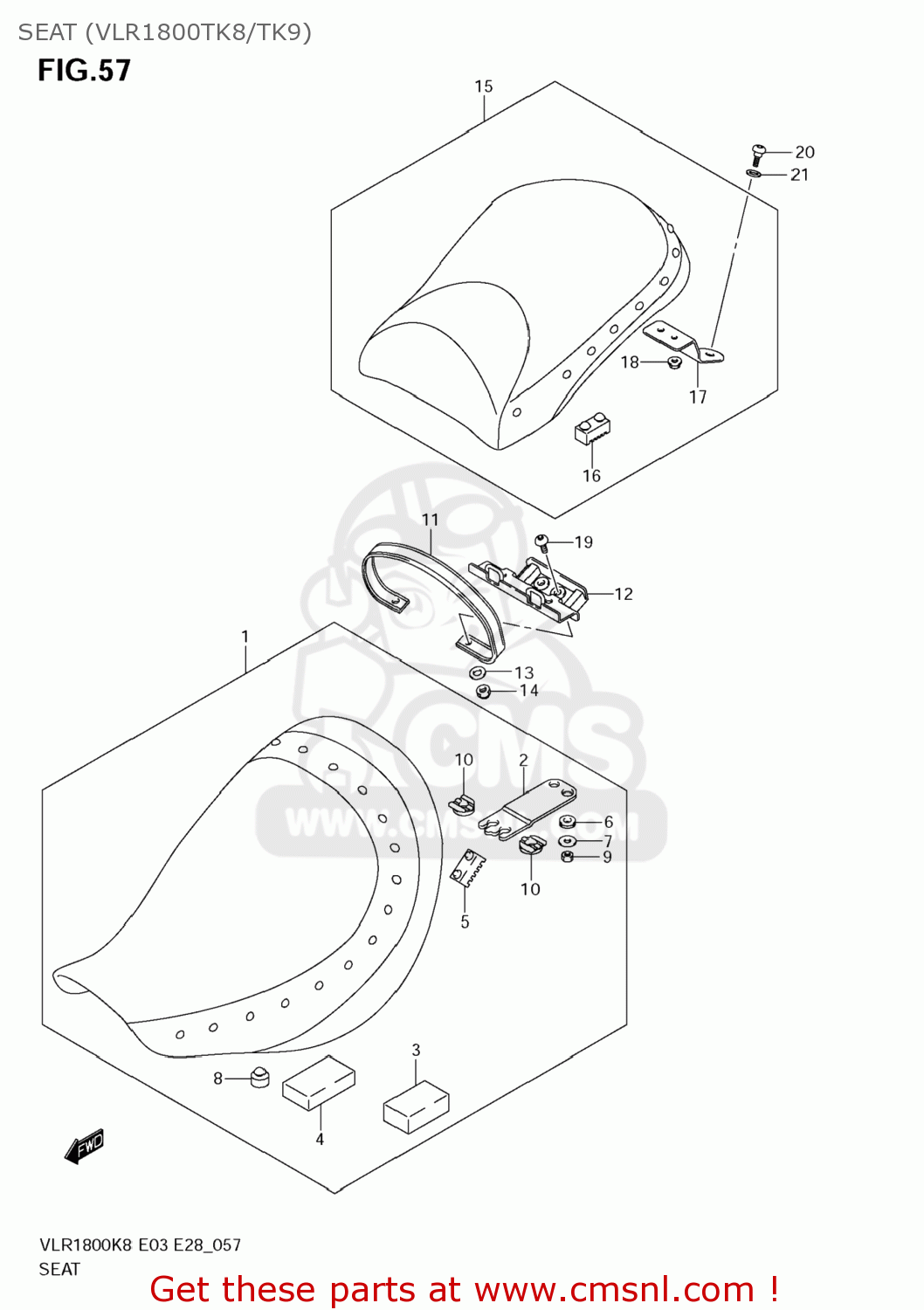

Seat (vlr1800tk8/tk9) diagram VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

SEAT (VLR1800TK8/TK9) VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)
SEAT (VLR1800TK8/TK9) VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)
SEAT (VLR1800TK8/TK9) VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
4510022H10V4Y
ref: 1
SEAT ASSY(BLACK)
€ 467.00
2
4511522H00
ref: 2
BRACKET,SEAT
€ 14.00
3
4514822H00
ref: 3
CUSHION
4514822H00
€ 3.00
4
4514922H00
ref: 4
CUSHION
4514922H00
€ 3.00
5
4514942F00
ref: 5
CUSHION
4514942F00
€ 4.50
6
4521506B00
ref: 6
CUSHION
€ 4.50
7
0916006088
ref: 7
WASHER(6.5X20X1.6)
0916006088
€ 2.00
8
0932110011
ref: 8
CUSHION
0932110011
€ 3.00
9
083161006A
ref: 9
NUT
083161006A
€ 2.50
10
0932010057
ref: 10
CUSHION
0932010057
€ 3.50
11
4518122H00V4Y
ref: 11
BAND,SEAT(BLACK)
4518122H00V4Y
€ 16.00
12
4518522H00
ref: 12
BRACKET,SEAT BAND
4518522H00
€ 52.50
13
0916006088
ref: 13
WASHER(6.5X20X1.6)
0916006088
€ 2.00
14
083132006A
ref: 14
NUT
083132006A
€ 2.00
15
4530022H10V4Y
ref: 15
SEAT ASSY,PILLION(BLACK)
4530022H10V4Y
€ 279.00
16
4514942F00
ref: 16
CUSHION
4514942F00
€ 4.50
17
4531522H00
ref: 17
BRACKET,SEAT
€ 25.00
18
083161006A
ref: 18
NUT
083161006A
€ 2.50
19
0910606064
ref: 19
BOLT(6X18)
0910606064
€ 6.00
20
4531822H00
ref: 20
BOLT,PILLION SEAT
€ 12.00
21
4531722H00
ref: 21
WASHER,PILLION SEAT
€ 4.00
