STARTING MOTOR

VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

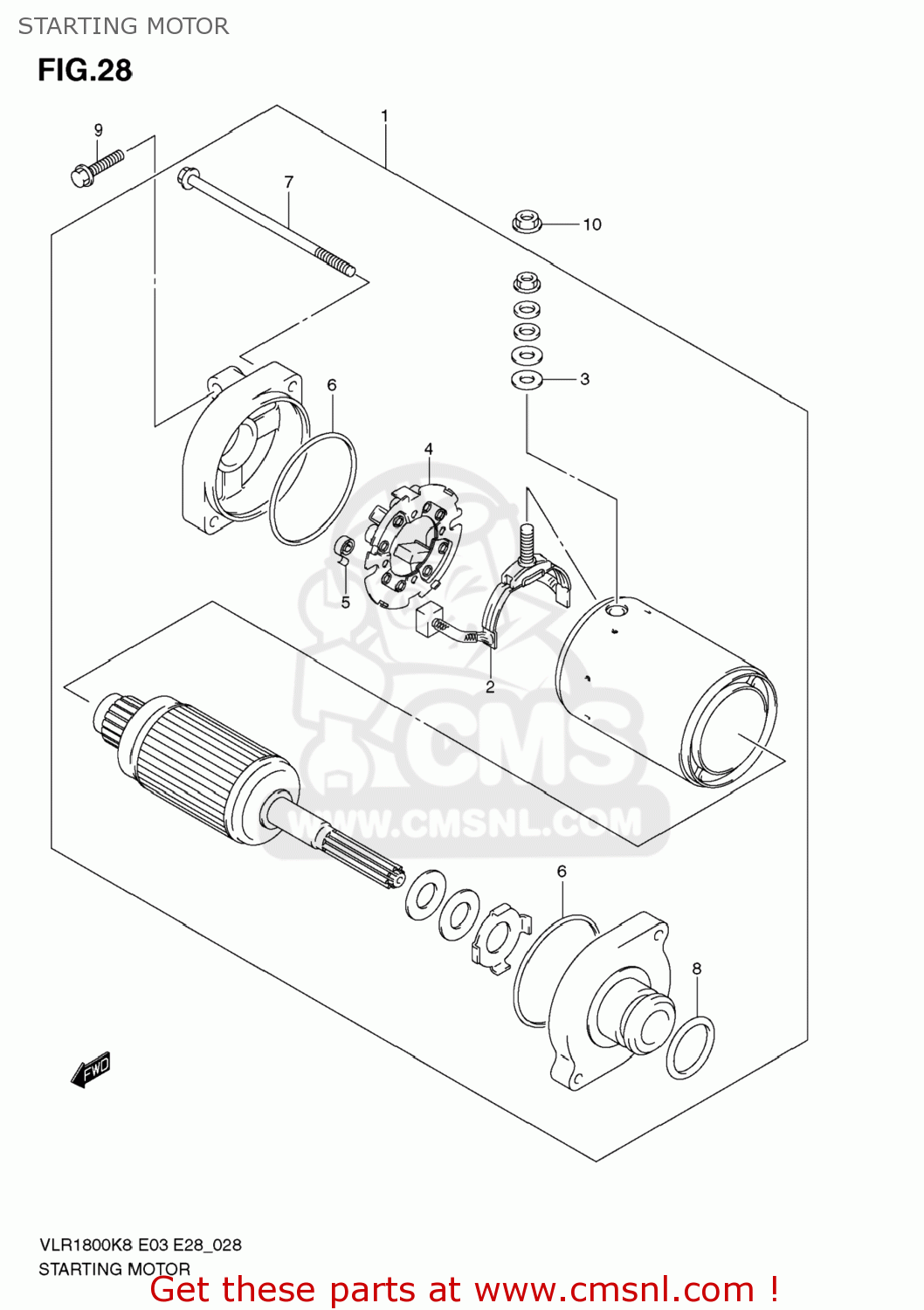

Starting motor diagram VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

STARTING MOTOR VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

STARTING MOTOR VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3110048G00
ref: 1

MOTOR ASSY,STARTING

€ 687.50

2

3113038B00
ref: 2

TERMINAL SET,BRUSH

€ 45.00

3

3114349040
ref: 3

O RING

€ 3.00

4

3113238B00
ref: 4

HOLDER SET,BRUSH

€ 45.00

5

3113538B00
ref: 5

SPRING,BRUSH

€ 3.50

6

3126431300
ref: 6
31264-32E00

O RING

€ 7.50

7

3128124B10
ref: 7

BOLT

€ 5.00

8

0928024003
ref: 8

O RING(D:3,ID:24.5)

€ 2.00

9

0910306212
ref: 9

BOLT(6X25)

€ 2.50

10

083613506A
ref: 10

NUT

€ 2.00
