STAND-REAR BRAKE

VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

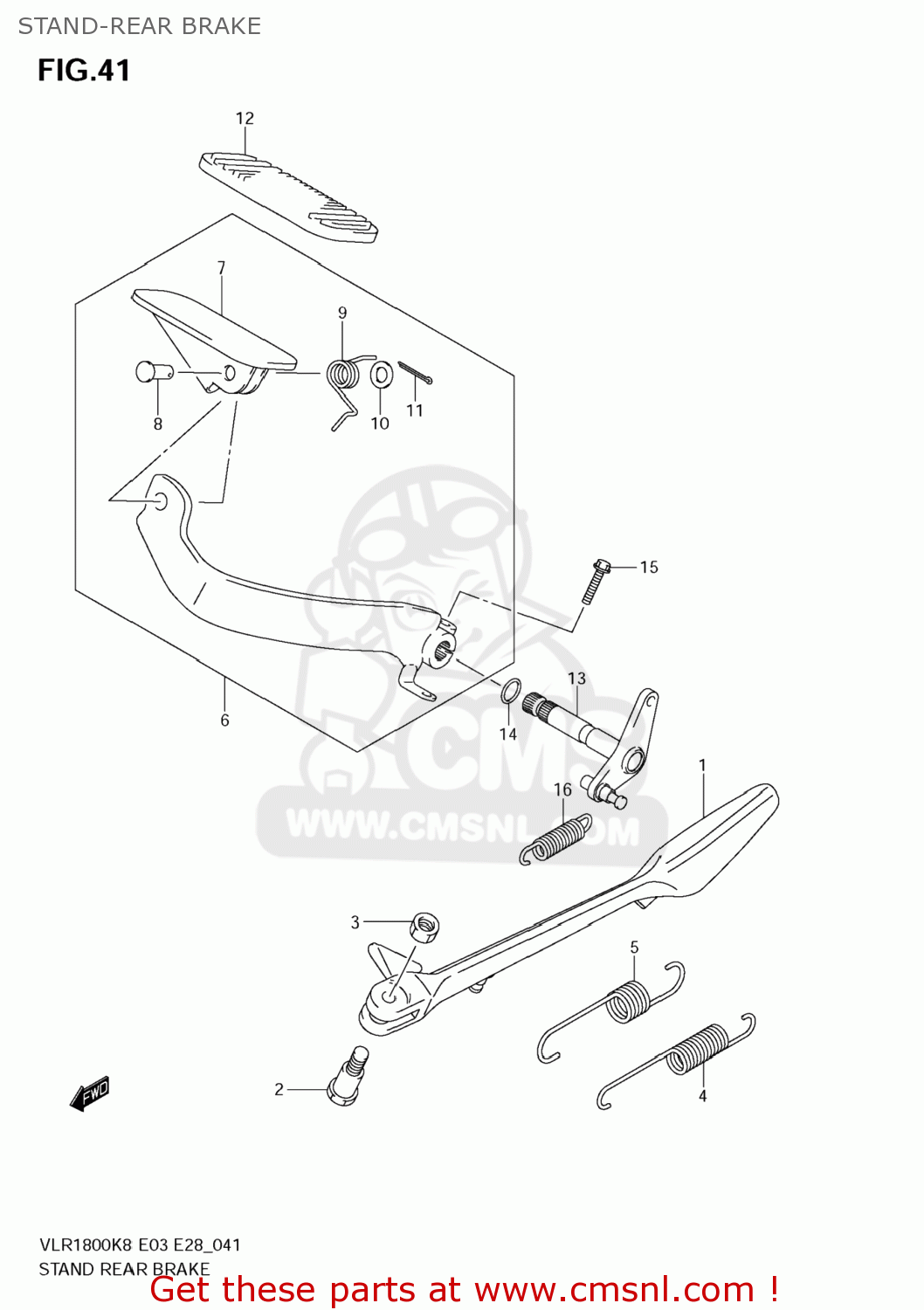

Stand-rear brake diagram VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

4231022H00
ref: 1

STAND,PROP

€ 202.00

0911110058
ref: 2

BOLT(10X37.5)

€ 6.00

4232103FK0
ref: 3

NUT,PROP STAND

€ 4.50

0944314069
ref: 4

SPRING

€ 7.00

0944319012
ref: 5

SPRING

€ 5.50

4310022H00
ref: 6

PEDAL ASSY,BRAKE

€ 166.50

4311022H00
ref: 7

PEDAL,BRAKE

€ 41.50

4311722H00
ref: 8

PIN,BRAKE PEDAL

€ 13.00

4311622H00
ref: 9

SPRING,BRAKE PEDAL

€ 10.50

083220108A
ref: 10

WASHER

€ 2.00

041112015A
ref: 11

PIN

€ 1.50

4315110F00
ref: 12

RUBBER,BRAKE PEDAL

€ 6.50

4312022H00
ref: 13

ARM,BRAKE ROD

€ 80.00

0928014011
ref: 14

O RING(D:2.5,ID:13.8)

€ 3.50

071200625A
ref: 15

BOLT

€ 2.50

0944311030
ref: 16

SPRING

€ 4.00
