SECOND AIR (E33)

VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

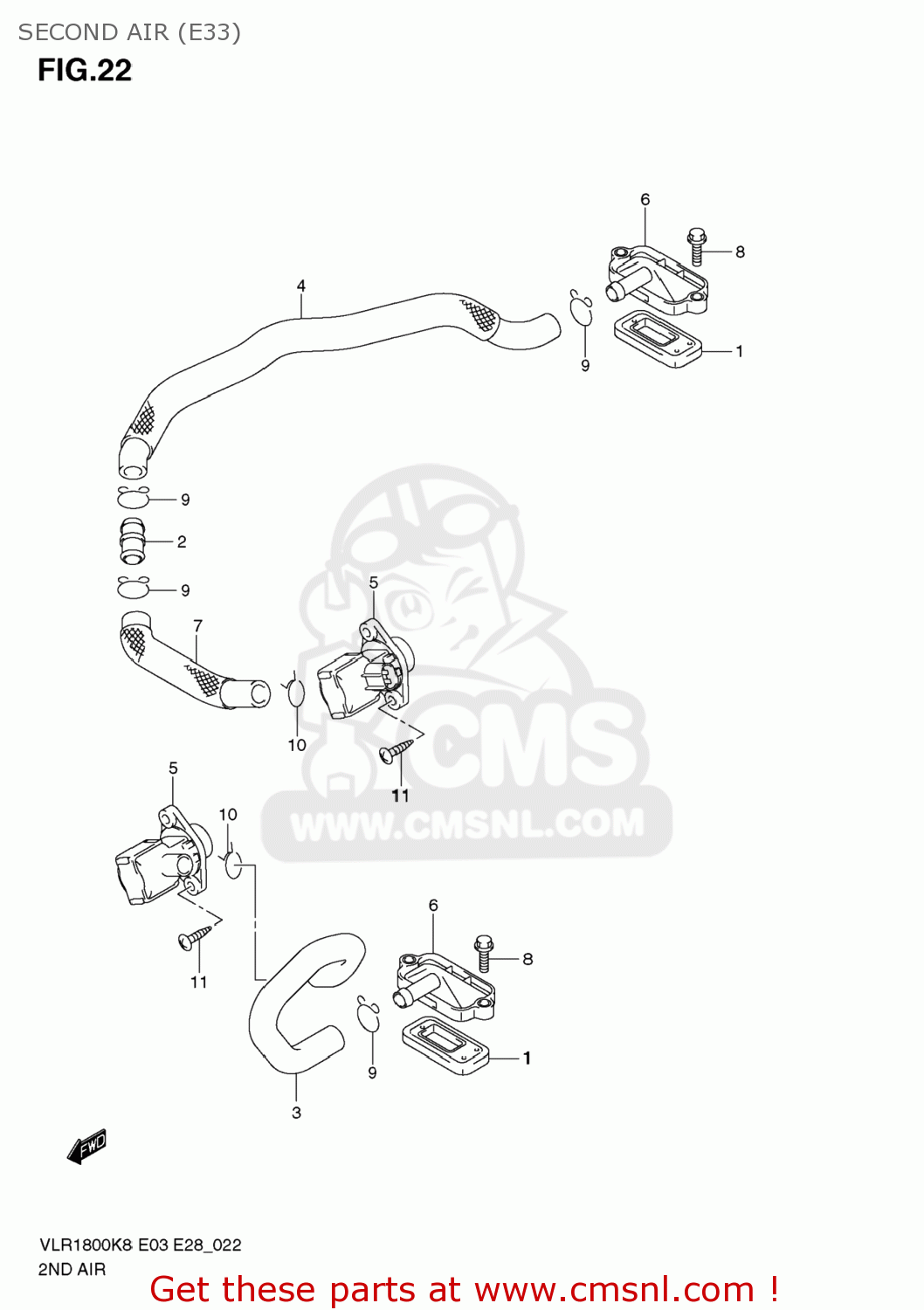

Second air (e33) diagram VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

SECOND AIR (E33) VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

SECOND AIR (E33) VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

1845006G00
ref: 1

VALVE ASSY,2ND AIR REED

€ 22.50

2

1388819B00
ref: 2

JOINT,2ND AIR CLEANER HOSE

€ 5.50

3

1846122H10
ref: 3

HOSE,2ND AIR VALVE NO.1

€ 16.50

4

1847122H10
ref: 4

HOSE,2ND AIR VALVE RR

€ 32.50

5

1851027G00
ref: 5

VALVE ASSY,AIR CUT

€ 61.00

6

1853106G01
ref: 6

COVER,2ND AIR

€ 9.50

7

1848122H00
ref: 7

HOSE,2ND AIR VALVE NO.2

€ 16.50

8

0910306201
ref: 8

BOLT(6X20)

€ 2.00

9

0940115101
ref: 9

CLIP

€ 2.00

10

0940118304
ref: 10
09401-18304-A05

CLAMP

€ 2.00

11

035410520A
ref: 11

SCREW

€ 2.50
