PROPELLER SHAFT/FINAL DRIVE GEAR

VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

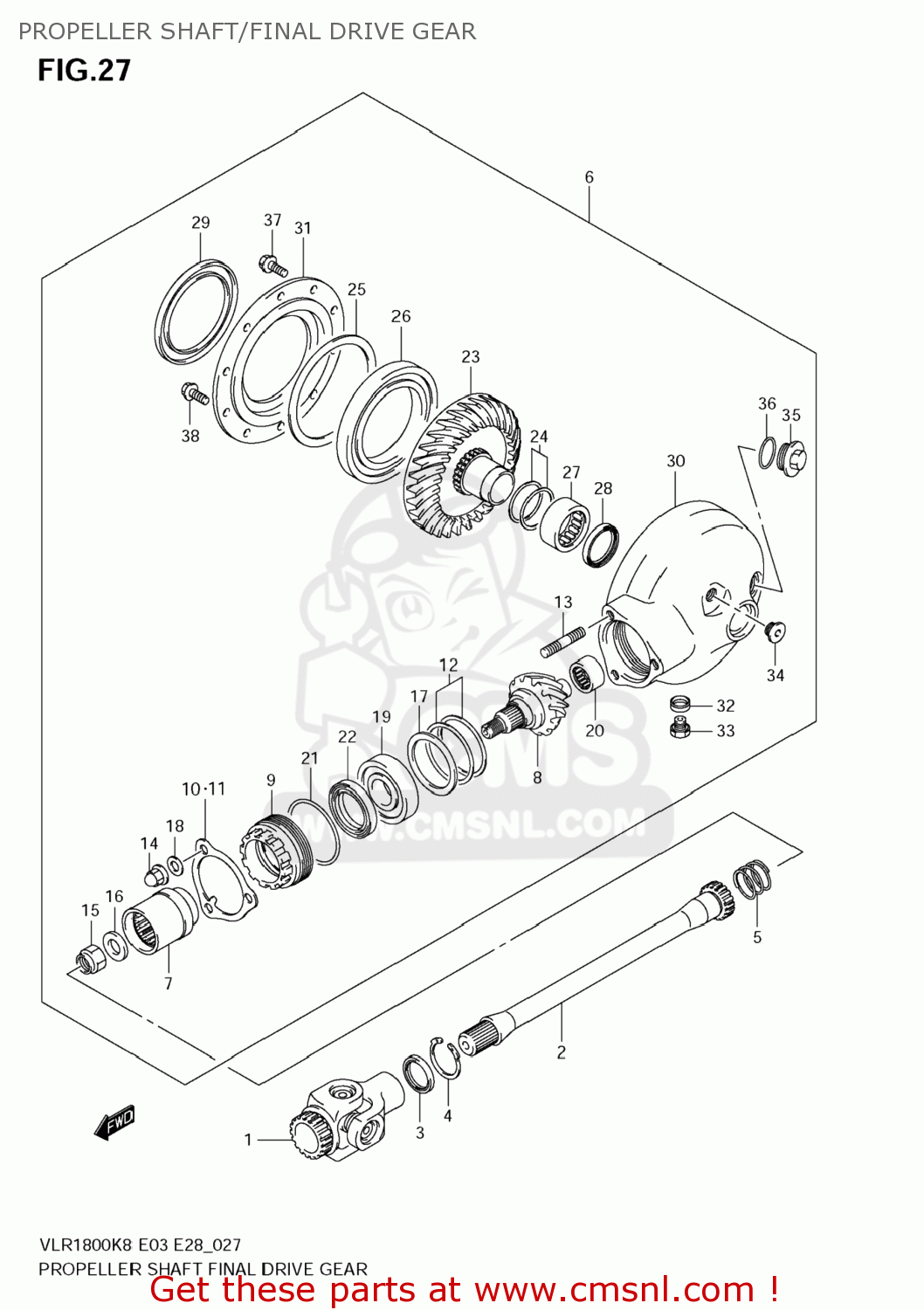

Propeller shaft/final drive gear diagram VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

PROPELLER SHAFT/FINAL DRIVE GEAR VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)
PROPELLER SHAFT/FINAL DRIVE GEAR VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)
PROPELLER SHAFT/FINAL DRIVE GEAR VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
2710048G20
ref: 1
YOKE,UNIVERSAL JOINT
€ 245.50
2
2715122H00
ref: 2
SHAFT,PROPELLER
€ 216.50
3
0928330026
ref: 3
SEAL,OIL(30X40.5X5.5)
0928330026
€ 9.00
4
0938140003
ref: 4
CIRCLIP
0938140003
€ 5.00
5
0944030008
ref: 5
SPRING
0944030008
€ 2.50
6
2730048821
ref: 6
27300-48850-13L
GEAR & CASE SE
€ 2,388.50
7
2717224A00
ref: 7
COUPLING,FINAL DRIVE GEAR
2717224A00
€ 35.50
8
2731124A03
ref: 8
GEAR,FINAL DRIVE BEVEL
2731124A03
€ 198.00
9
2731224A02
ref: 9
STOPPER,FINAL DRIVE BEARING
2731224A02
€ 38.50
10
2731338B00
ref: 10
PLATE,BEARING STOPPER
2731338B00
€ 4.00
11
2731338B10
ref: 11
PLATE,BEARING STOPPER
2731338B10
€ 4.00
12
2744524810
ref: 12
SHIM SET,FINAL DRIVE GEAR
2744524810
€ 14.50
12
2744524810
ref: 12
SHIM SET,FINAL DRIVE GEAR
2744524810
€ 14.50
13
0910810106
ref: 13
BOLT,STUD
0910810106
€ 3.50
14
0915910026
ref: 14
NUT
0915910026
€ 6.00
15
0915916003
ref: 15
NUT
0915916003
€ 3.50
16
0916016029
ref: 16
WASHER(16X29X4)
0916016029
€ 6.00
17
0916054001
ref: 17
WASHER(54X68X1.5)
0916054001
€ 6.50
18
0916410008
ref: 18
WASHER
0916410008
€ 1.50
19
0926228023
ref: 19
BEARING(28X68X18)
0926228023
€ 71.00
20
0926320062
ref: 20
BEARING(20X34X18)
0926320062
€ 26.50
21
0928064003
ref: 21
O RING(D:3.1,ID:63.9)
0928064003
€ 5.00
22
0928347002
ref: 22
SEAL,OIL
0928347002
€ 11.00
23
2732048G00
ref: 23
GEAR,FINAL DRIVEN BEVEL
€ 409.00
24
2732648811
ref: 24
SHIM SET,FINAL DRIVEN GEAR,R
2732648811
€ 53.00
24
2732648811
ref: 24
SHIM SET,FINAL DRIVEN GEAR,R
2732648811
€ 53.00
24
2732648811
ref: 24
SHIM SET,FINAL DRIVEN GEAR,R
2732648811
€ 53.00
25
2732738810
ref: 25
SHIM SET,FINAL DRIVEN GEAR
2732738810
€ 62.00
26
0926285001
ref: 26
BEARING(85X130X14)
0926285001
€ 108.00
27
0926340016
ref: 27
BEARING(40X50X20)
0926340016
€ 33.00
28
0928338026
ref: 28
SEAL,OIL(38X46X6)
0928338026
€ 12.50
29
0928985001
ref: 29
SEAL,OIL(85X110X11)
0928985001
€ 31.00
30
2745048G10
ref: 30
CASE,FINAL GEAR
2745048G10
€ 600.00
31
2746138B00
ref: 31
CASE,FINAL GEAR BEARING
2746138B00
€ 156.00
32
0916814002
ref: 32
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
33
0924714002
ref: 33
PLUG(MAGNETO)
0924714002
€ 5.00
34
0924816012
ref: 34
PLUG,16X8
0924816012
€ 4.50
35
0925930007
ref: 35
PLUG,30X9
0925930007
€ 14.50
36
0928026006
ref: 36
O RING(D:3.1,ID:26.4)
0928026006
€ 3.00
37
015500825B
ref: 37
BOLT
015500825B
€ 2.50
38
015501025A
ref: 38
BOLT
015501025A
€ 2.00
