SIDE LOWER COVER

VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

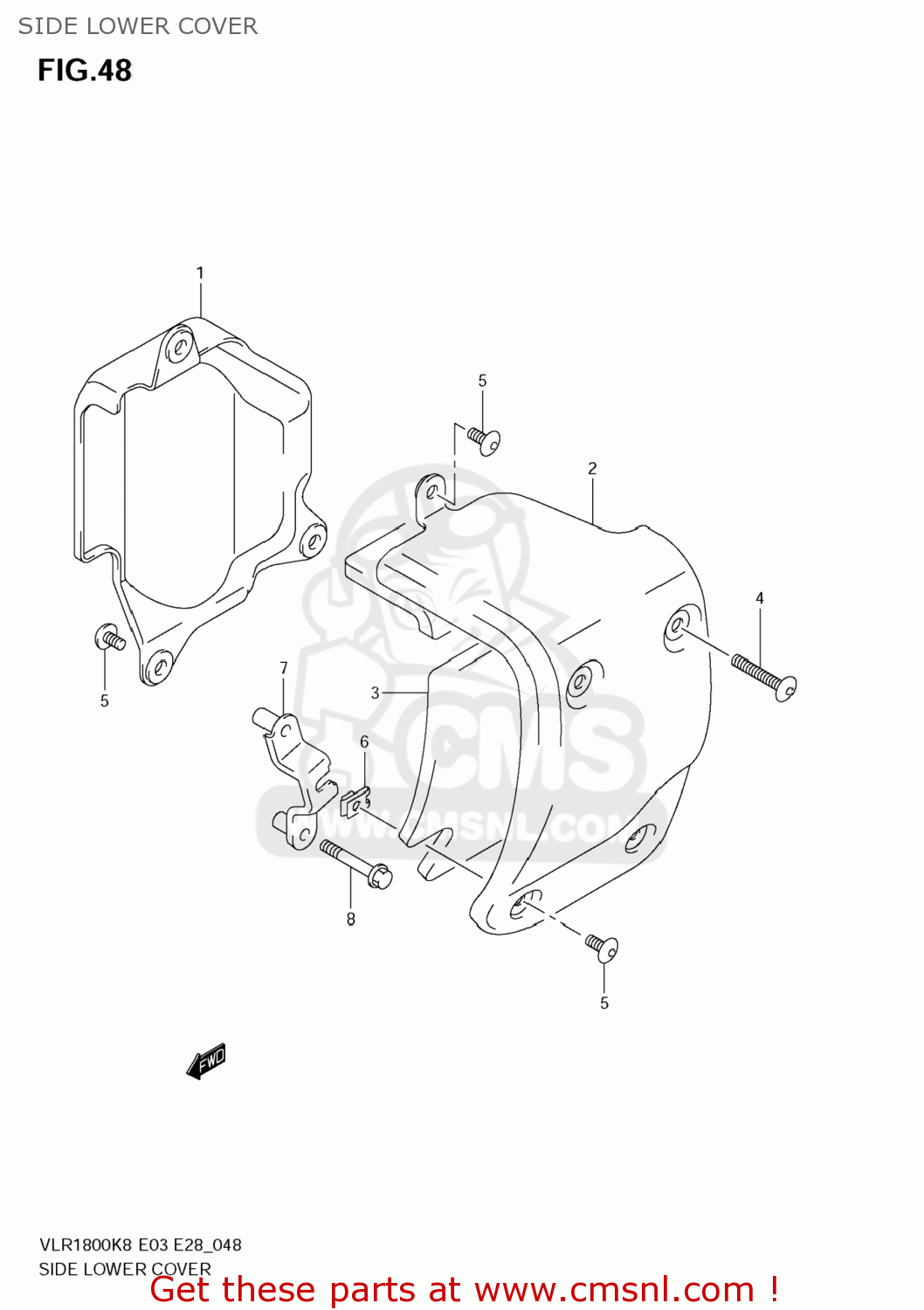

Side lower cover diagram VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

SIDE LOWER COVER VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

SIDE LOWER COVER VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

4713022H00
ref: 1

COVER,SIDE LWR,R

€ 140.00

2

4723022H00
ref: 2

COVER,SIDE LWR,L

€ 225.50

3

4723322H00
ref: 3

CUSHION,SIDE LWR,L

€ 25.50

4

0913906105
ref: 4

SCREW(6X40)

€ 6.50

5

0913906027
ref: 5

SCREW(6X12)

€ 3.00

6

0914806018
ref: 6

NUT

€ 2.50

7

4724022H00
ref: 7

BRACKET,FRAME COVER LWR

€ 26.00

8

015500650A
ref: 8

BOLT

€ 2.00
