HEADLAMP

VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

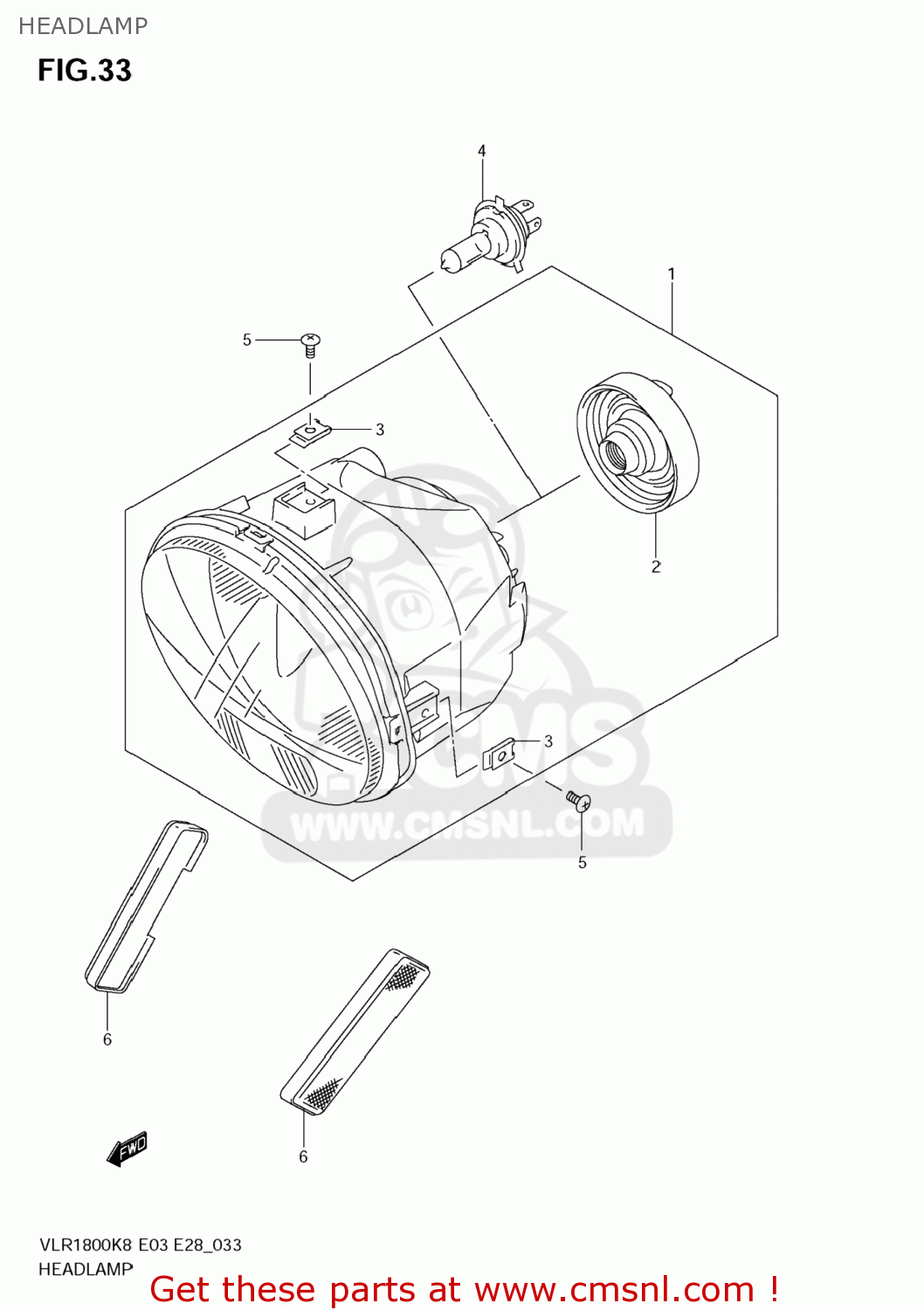

Headlamp diagram VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

HEADLAMP VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

HEADLAMP VLR1800 BOULEVARD C109R 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3510022H30999
ref: 1

HEADLAMP ASSY

€ 228.00

2

3517314G00
ref: 2

COVER

€ 11.50

3

9448424F00
ref: 3

NUT,COWL

€ 4.00

4

0947112185
ref: 4
09471-12060

BULB(12V60/55W,H4)

€ 8.00

5

021420512A
ref: 5

SCREW

€ 1.50

6

3595022H00
ref: 6

REFLEX REFLECTOR ASSY,FR SIDE

€ 54.00
