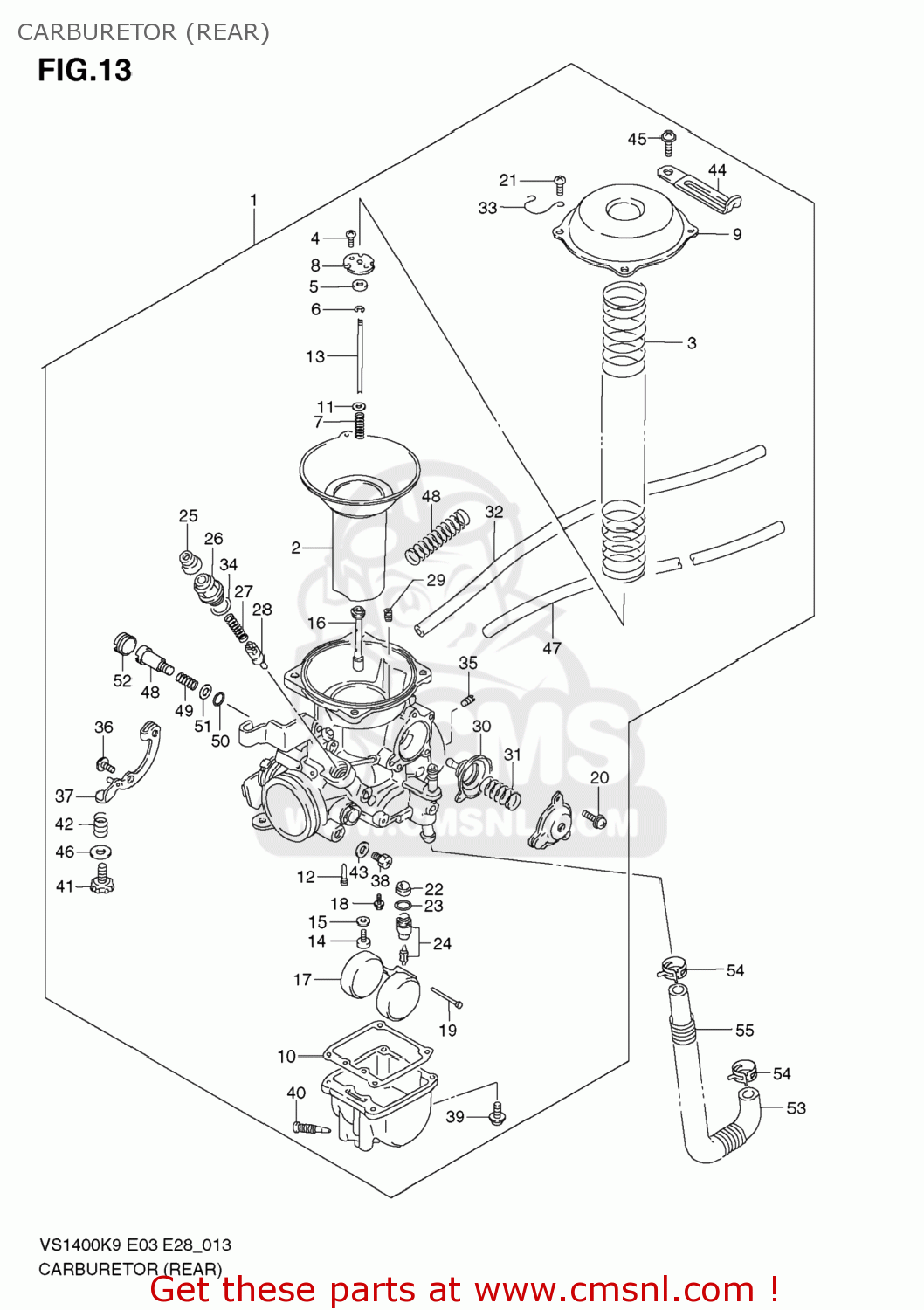

CARBURETOR (REAR)

ref

part #

description

quantity

1-1

1322038BE1
ref: 1-1

CARBURETOR ASSY,FR

€ 0.00

1-2

1322038BG1
ref: 1-2

CARBURETOR ASSY,RR

€ 0.00

2

1350038A10
ref: 2

DIAPHRAGM,CARBURETOR

€ 222.50

3

1350305A10
ref: 3

SPRING,DIAPHRAGM

€ 12.00

4

0211233073
ref: 4

SCREW

€ 0.00

5

1338747010
ref: 5

RING

€ 7.50

6

1339410010
ref: 6

CLIP

€ 4.50

7

1338844030
ref: 7

SPRING

€ 6.00

8

1338937400
ref: 8

PLATE

€ 5.50

9

1350245CE0
ref: 9

COVER

€ 37.50

10

1325138A10
ref: 10

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

11

1338244030
ref: 11

WASHER

€ 3.50

12

0949255014
ref: 12

JET,PILOT(55)

€ 16.50

13

1338338B00
ref: 13

NEEDLE,JET

€ 17.50

14

0949128010
ref: 14

JET,MAIN(140)

€ 8.50

15

1338203110
ref: 15

WASHER

€ 2.50

16

0949400895
ref: 16

JET,NEEDLE(P-2M)

€ 0.00

17

1325223010
ref: 17

FLOAT

€ 19.00

18

1360205A10
ref: 18

SCREW

€ 4.00

19

1325492311
ref: 19

PIN,FLOAT

€ 2.00

20

1360219B50
ref: 20

SCREW

€ 3.00

21

0211204083
ref: 21
02112-0408A

SCREW

€ 2.00

22

1337619F00
ref: 22

FILTER

€ 6.50

23

1337435C00
ref: 23

O RING,NEEDLE VALVE SEAT

€ 6.00

24

1337039A00
ref: 24

VALVE ASSY,NEEDLE

€ 67.50

25

1368104010
ref: 25

CAP

€ 3.00

26

1341843410
ref: 26

HOLDER,GUIDE

€ 6.50

27

1341722010
ref: 27

SPRING

€ 3.00

28

1341101400
ref: 28

PLUNGER,STARTER

€ 11.50

29

0949331001
ref: 29

JET,AIR(1.55)

€ 12.00

30

1348005A10
ref: 30

DIAPHRAGM ASSY

€ 54.50

31

1348138B40
ref: 31

SPRING

€ 5.50

32

0935250823600
ref: 32
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

33

1369202500
ref: 33

CLIP

€ 7.00

34

1327847090
ref: 34

O RING

€ 2.00

35

0949240018
ref: 35

JET,PILOT(40)

€ 16.00

36

1360205A30
ref: 36

SCREW

€ 4.50

37

1355445C20
ref: 37

LEVER ASSY

€ 38.50

38

1360573000
ref: 38

SCREW

€ 10.50

39

1360104148
ref: 39

SCREW

€ 2.50

40

1324713A00
ref: 40
13247-02340

SCREW,DRAIN

€ 5.50

41

1326739E50
ref: 41

ADJUSTER

€ 13.00

42

1327193011
ref: 42

SPRING

€ 4.50

43

1324978100
ref: 43

WASHER

€ 4.00

44

0940406433
ref: 44

CLAMP(L:80)

€ 3.00

45

0214204083
ref: 45
02142-0408B

SCREW

€ 1.50

46

1327737100
ref: 46

WASHER

€ 2.00

47

1368338B01
ref: 47

HOSE ASSY

€ 19.50

47

1368338B01
ref: 47

HOSE ASSY

€ 19.50

48

1327947070
ref: 48

SCREW,PILOT

€ 11.50

49

1326847070
ref: 49

SPRING

€ 5.00

50

1329529900
ref: 50

O RING,PILOT AIR SCREW

€ 4.00

51

1329129900
ref: 51

WASHER

€ 2.00

52

1328105A00
ref: 52

PLUG

€ 3.50

53

1580138B01
ref: 53

HOSE,FUEL PUMP & CARB

€ 14.50

54

0940111415
ref: 54

CLIP

€ 2.50

55

0944014030
ref: 55

SPRING

€ 25.00
