FRONT FENDER

VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

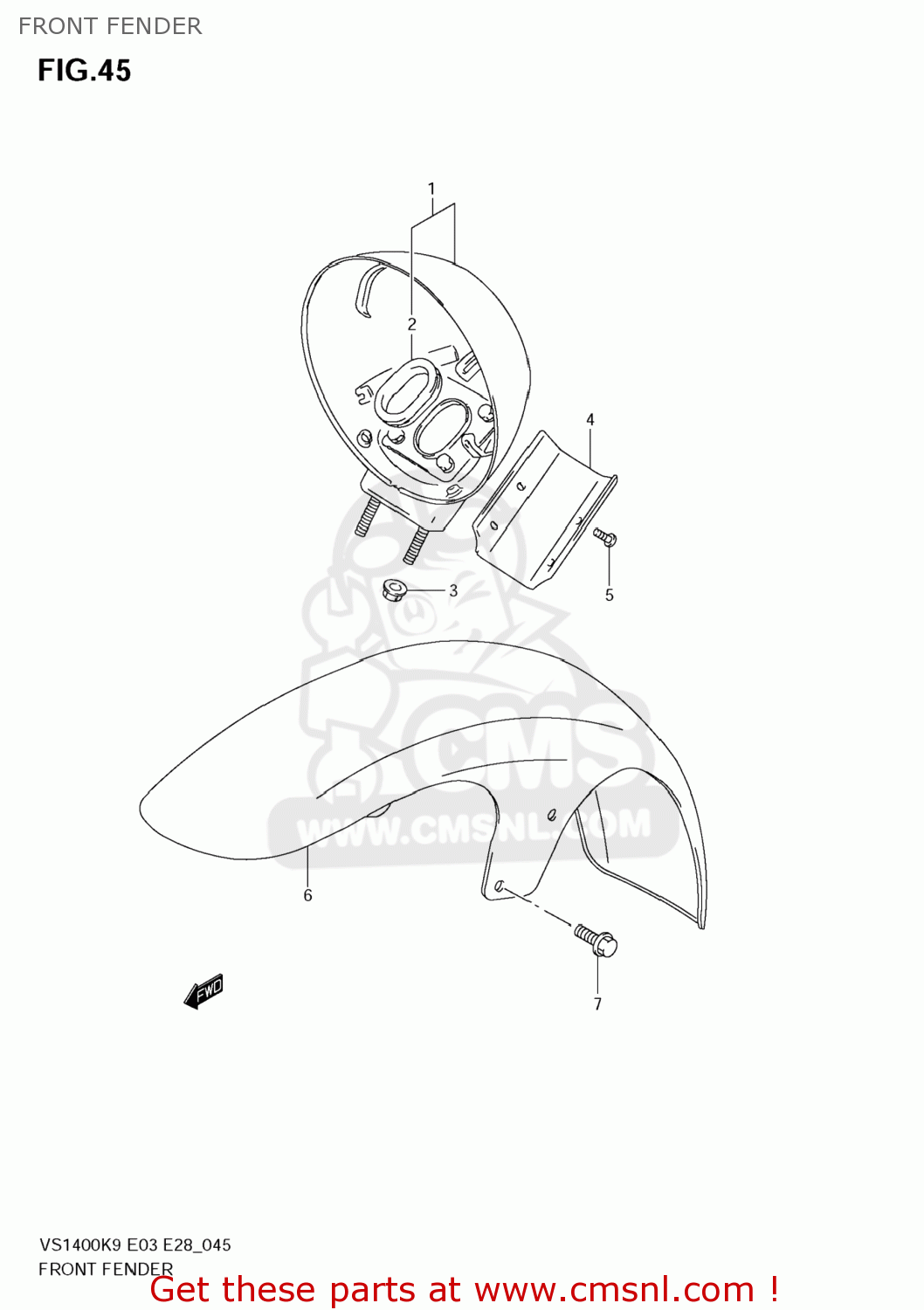

Front fender diagram VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

FRONT FENDER VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

FRONT FENDER VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

5181038B00
ref: 1

HOUSING,HEADLAMP

€ 136.50

2

5181938B00
ref: 2

GROMMET

€ 6.50

3

083193106B
ref: 3

NUT

€ 2.50

4

5181538B00
ref: 4

COVER,HEADLAMP HSG

€ 9.50

5

0214204107
ref: 5

SCREW

€ 1.50

6-1

5311038B11YAY
ref: 6-1

FENDER,FR(BLACK)

€ 0.00

6-2

5311038B00YHG
ref: 6-2

FENDER,FR

€ 0.00

7

015700616B
ref: 7

BOLT

€ 2.50
