FUEL COCK

VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

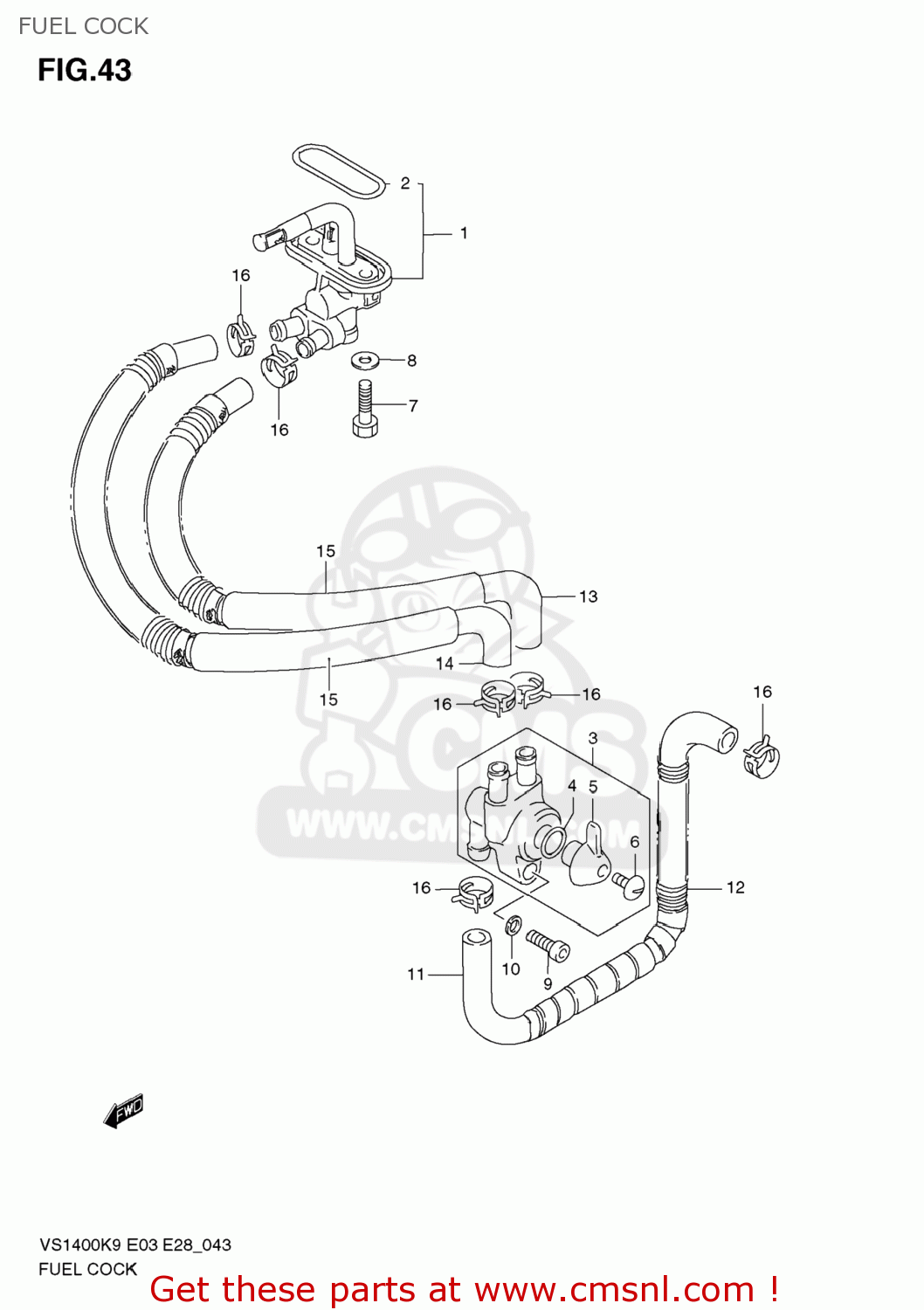

Fuel cock diagram VS1400 BOULEVARD S83 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

4430038B02
ref: 1

COCK ASSY,FUEL

€ 142.00

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

4430038B13
ref: 3

COCK ASSY,FUEL

€ 171.50

4435312C01
ref: 4

O RING,LEVER

€ 7.50

4430638A00
ref: 5

LEVER,FUEL COCK

€ 23.50

4430738A00
ref: 6

SCREW,COCK LEVER

€ 18.00

0912806006
ref: 7
09128-06057

BOLT(6X20)

€ 2.00

0916806026
ref: 8

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

071300512B
ref: 9

BOLT

€ 2.50

083210105B
ref: 10

WASHER,LOCK

€ 3.00

4442038BA0
ref: 11
44420-38BR0

HOSE,FUEL PUMP & COCK

€ 21.00

0944014026
ref: 12

SPRING

€ 18.00

4443038BA0
ref: 13

HOSE,FUEL NO.1

€ 31.00

4443038BB0
ref: 14

HOSE,FUEL NO.2

€ 31.00

15-1

4431117E01
ref: 15-1

TUBE,FUEL HOSE

€ 17.50

15-2

4442344B00
ref: 15-2

HEATSHIELD,FUEL HOSE

€ 13.50

0940111415
ref: 16

CLIP

€ 2.50
