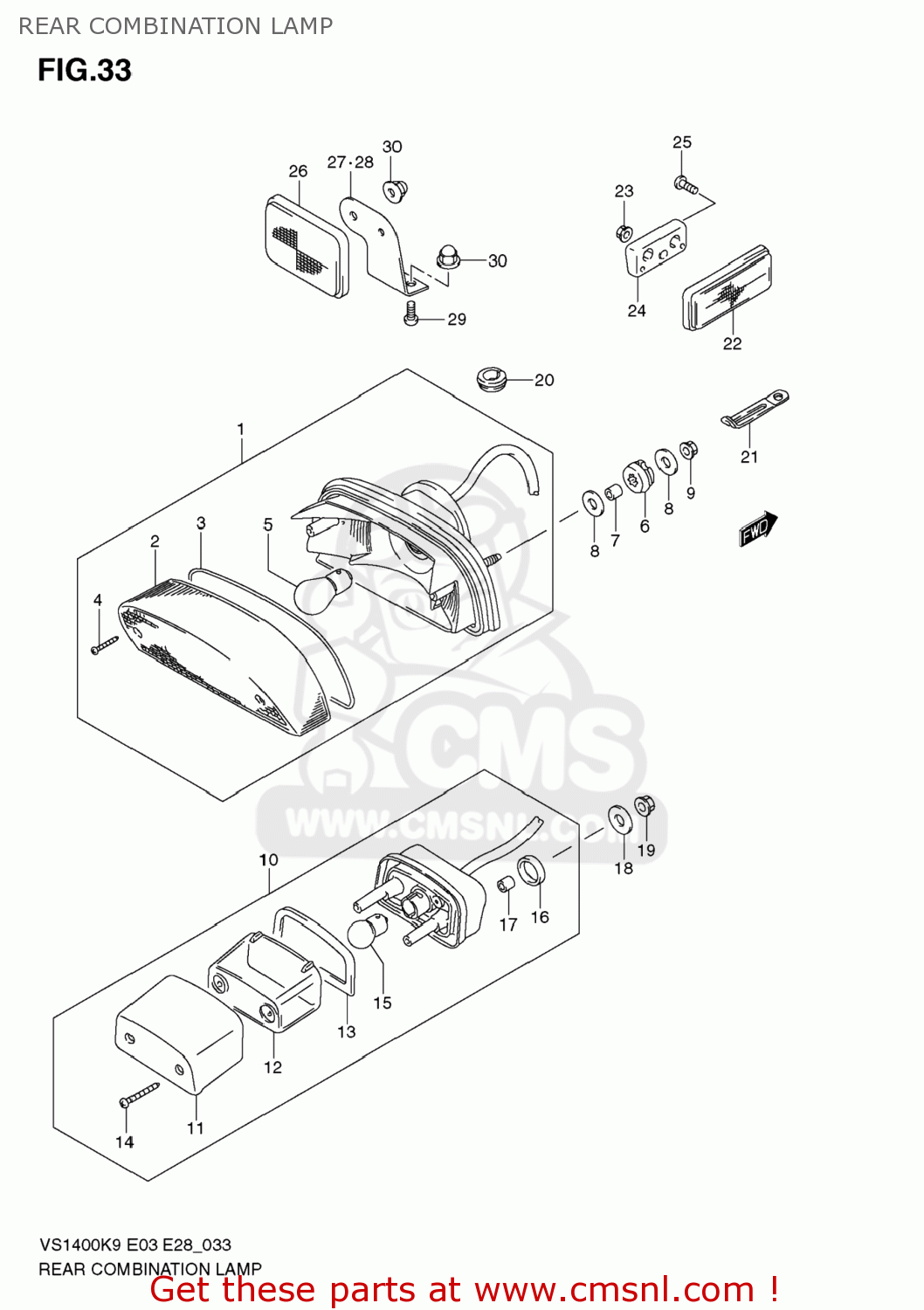

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571038B30
ref: 1

LAMP ASSY,RR COMBINATION

€ 118.00

2

3571238B30
ref: 2

LENS

€ 30.00

3

3571338B30
ref: 3

GASKET (NAS)

€ 6.50

4

035110416A
ref: 4

SCREW

€ 1.50

5

0947112129
ref: 5

BULB(12V27/8W)

€ 10.00

6

0932009018
ref: 6

CUSHION

€ 2.00

7

0918006264
ref: 7

SPACER(6.5X9X10.5)

€ 2.00

8

0916006077
ref: 8

WASHER(6.5X20X1.2)

€ 2.00

9

083162006B
ref: 9

NUT

€ 0.00

10

3591038B40
ref: 10

LAMP ASSY,LICENSE

€ 98.00

11

3591738B30
ref: 11

COVER,LICENSE LAMP

€ 21.00

12

3591238B30
ref: 12

LENS,LICENSE LAMP

€ 10.50

13

3591338B30
ref: 13

GASKET,LICENSE LAMP (NAS)

€ 5.00

14

0321104207
ref: 14

SCREW

€ 1.50

15

0947112130
ref: 15

BULB(12V7.5W)

€ 2.50

16

3576238B30
ref: 16

CUSHION

€ 0.00

17

3576638B30
ref: 17

SPACER

€ 0.00

18

0916006077
ref: 18

WASHER(6.5X20X1.2)

€ 2.00

19

083162006B
ref: 19

NUT

€ 0.00

20

0930812009
ref: 20

GROMMET

€ 3.00

21

0940406429
ref: 21

CLAMP(L:45)

€ 2.50

22

3597024D60
ref: 22

REFLECTOR ASSY,RR

€ 19.50

23

083161005B
ref: 23

NUT

€ 2.50

24

3597738B12
ref: 24

SPACER,RR SIDE REFLECTOR

€ 5.00

25

035110512B
ref: 25

SCREW

€ 2.00

26

3597038E00
ref: 26

REFLECTOR ASSY,RR

€ 71.50

27

3597438B10
ref: 27

BRACKET,RR RR

€ 0.00

28

3597438B20
ref: 28

BRACKET,RR RR,L

€ 0.00

29

0214205107
ref: 29

SCREW

€ 2.50

30

0831320057
ref: 30

NUT

€ 1.50
